ESSENTIAL PARTS
Names of Parts
NOTE:
Serger/Overlocker/Overlock machine design and
specications are subject to change without prior
notice.
(2)
(1)
(4)(3)
(11)
(10)
(13)
(12)
(14)
(15)

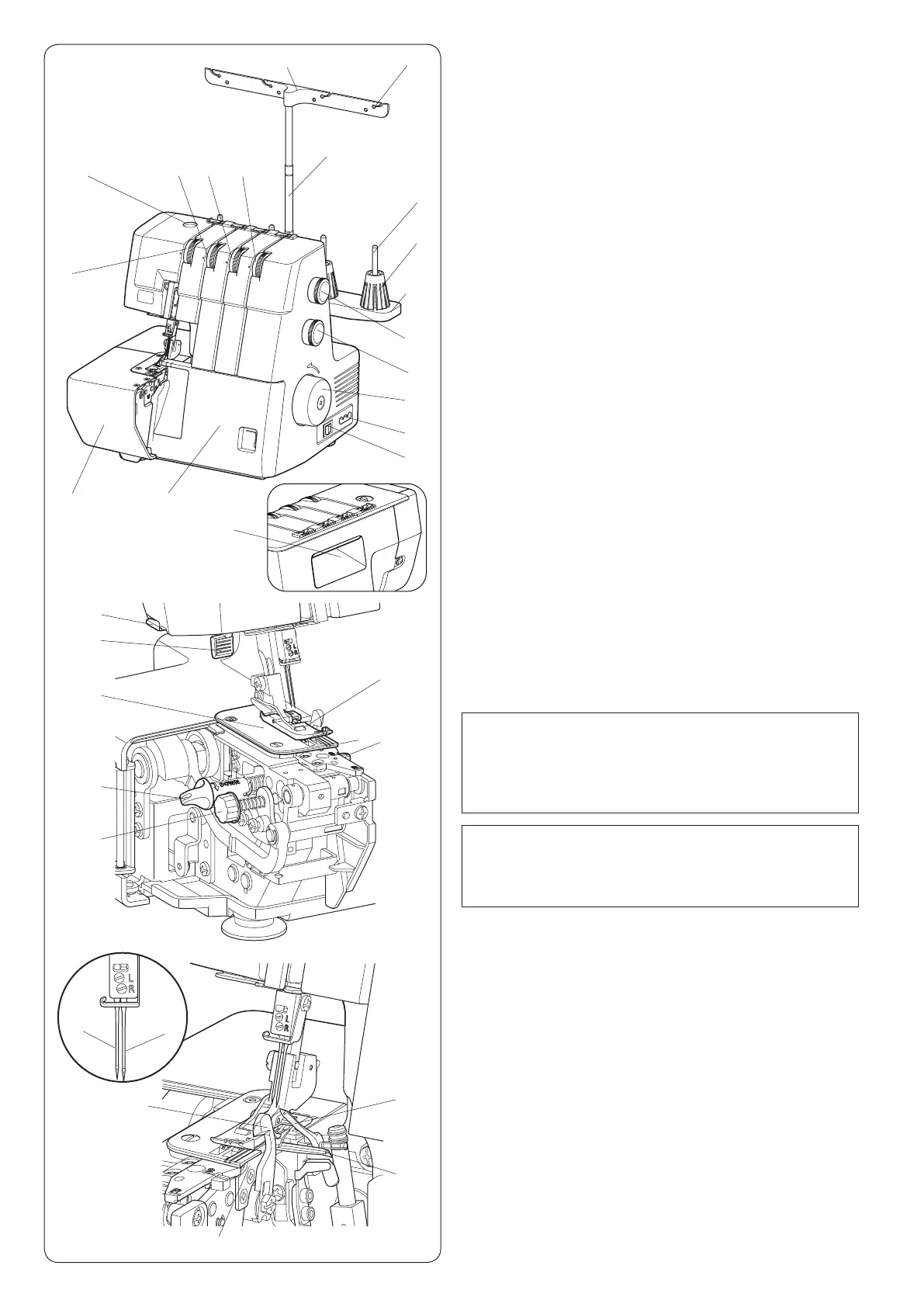

(1) Left needle thread tension dial
(2) Right needle thread tension dial
(3) Upper looper thread tension dial
(4) Lower looper thread tension dial
(5) Thread guide bar
(6) Thread guide
(7) Thread guide post
(8) Spool pin
(9) Spool holder
(10) Spool stand
(11) Stitch length dial
(12) Differential feed dial
(13) Handwheel
(14) Machine socket
(15) Power switch
(16) Looper cover
(17) Side cover
(18) Pressure adjusting screw
(19) Carrying handle
(20) Presser foot
(21) Chaining nger switch knob
(22) Thread cutter
(23) Presser foot lifter
(24) Needle plate
(25) Upper knife release knob
(26) Cutting width adjusting dial
(27) Right needle
(28) Left needle
(29) Upper looper
(30) Lower looper
(31) Lower knife
(32) Upper knife
(5)
(6)
(8)
(9)
(16)
(18)
(17)
(32)
(31)
(29)
(30)
(20)
(21)
(22)
(23)
(24)
(25)
(26)
NOTE:
To carry the Serger/Overlocker/Overlock machine,
hold the carrying handle with your hand, and support
the Serger/Overlocker/Overlock machine with the
other hand.
(28)
(27)
(7)
(19)
