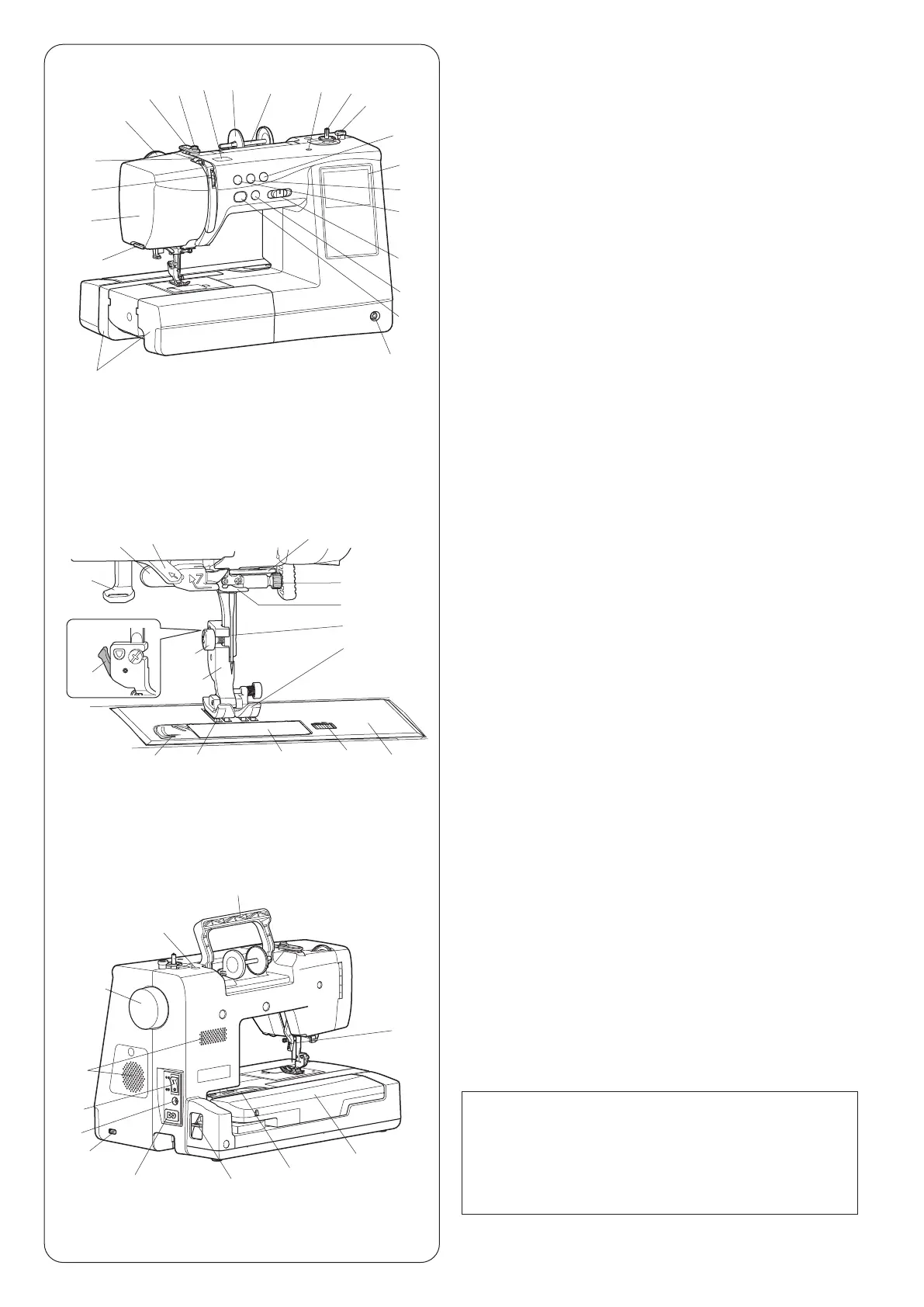

ESSENTIAL PARTS
Names of Parts
(1) Upper thread guide
(2) Bobbin winding tension disk
(3) Cover
(4) Spool holder (large)
(5) Spool pin
(6) Hole for extra spool pin
(7) Bobbin winder spindle
(8) Bobbin winder stopper
(9) Thread cutter button
(10) Visual touch screen
(11) Needle up/down button
(12) Auto-lock button
(13) Speed control slider
(14) Reverse button
(15) Start/stop button
(16) Knee lifter socket
(17) Extension table (accessory storage)
(18) Thread cutter/holder
(19) Face cover
(20) Thread tension dial
(21) Thread take-up lever
(22) Presser foot pressure dial
(23)
L
ower thread guide
(24)
N
eedle clamp screw
(25)
N
eedle bar thread guide
(26)
N
eedle
(27)
Z
igzag foot A
(28)
N
eedle plate
(29)
H
ook cover release button
(30)
H
ook cover plate
(31)
Fe
ed dogs
(32)
B
obbin thread cutter
(33)
Fo
ot holder
(34)
S
etscrew
(35)
Le
ver
(36)
N
eedle threader lever
(37)
B
uttonhole lever
(38)
N
eedle threader guide
(39)
C
arrying handle
(40)
P
resser foot lifter
(41)
C
arriage arm
(42)
Carriage
(43) Carriage arm release lever
(44) M
achine socket
(45)
U
SB port
(46)
F
oot control jack
(47)
Power switch
(48) Ventilation openings
(49) H
andwheel
(50)
Ca
p
(23)
(24)
(27)
(33)
(36)
(28)
(29)
(30)
(34)
(26)
(32)
(37)
(25)
(31)
(35)
(14)
(16)
(10)
(13)
(11)
(9)
(5)
(4)
(1)
(22)
(21)
(20)
(19)
(18)
(17)
(40)
(39)
(49)
(46)
(44)
(2)
(6) (7)
(8)
(47)
(12)
(15)
(45)
(41)
(43)
(38)
(48)
(3)
NOTE:
• To carry the sewing machine, hold the carrying
handle with your hand, and support the sewing
machine with the other hand.
• Sewing machine design and specications are
subject to change without prior notice.
(42)
(50)
