ESSENTIAL PARTS

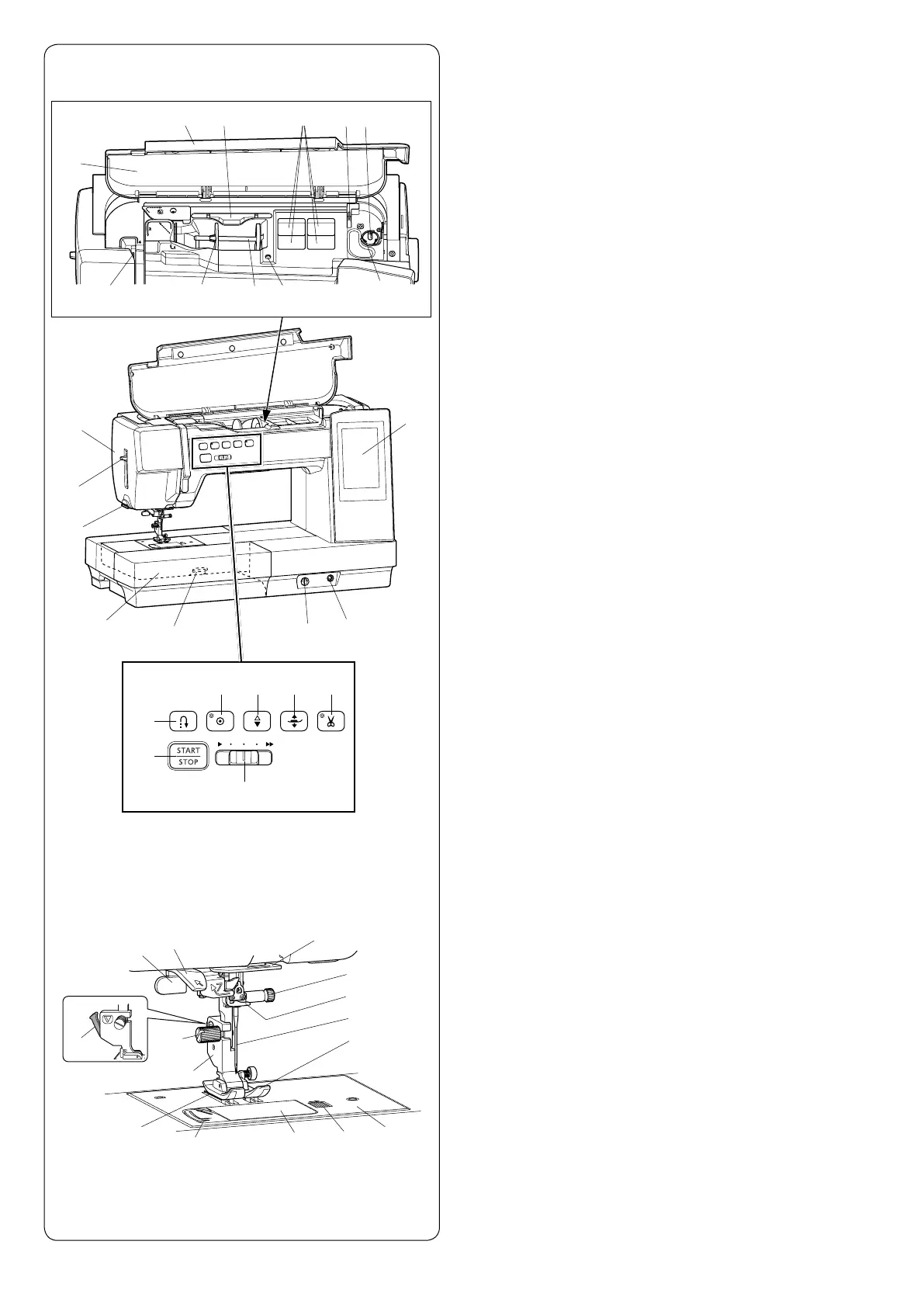

Names of Parts

(1) Thread take-up lever

(2) Reference chart

(3) Top cover

(4) Touch panel stylus holder

(5) Foot compartment

(6) Bobbin thread cutter B

(7) Bobbin winder spindle

(8) Bobbin thread cutter A

(9) Hole for extra spool pin

(10) Spool pin

(11) Spool holder (large)

(12) Face plate

(13) Needle threader lever

(14) Thread cutter/holder

(15) Extension table (accessory storage)

(16) Needle plate release lever

(17) Feed balancing dial

(18) Knee lifter socket

(19) Visual touch screen

(20) Speed control slider

(21) Start/stop button

(22) Reverse button

(23) Auto-lock button

(24) Needle up/down button

(25) Presser foot lifter button

(26) Thread cutter button

(27) Lower thread guide

(28) Needle clamp screw

(29) Needle bar thread guide

(30) Needle

(31) Zigzag foot A

(32) Needle plate

(33) Hook cover release button

(34) Hook cover plate

(35) Bobbin thread cutter

(36) Feed dogs

(37) Foot holder

(38) Thumbscrew

(39) Lever

(40) Buttonhole lever

(41) Needle threader guide

(2)

(1)

(3) (4) (6)(7)

(8)(9)(10)(11)

(12)

(13)

(15)

(17)

(18)

(20)

(16)

(19)

(14)

(21)

(22)

(23) (24) (25) (26)

(27)

(28)

(31)

(37)

(40)

(32)

(33)

(34)

(38)

(30)

(36)

(41)

(29)

(35)

(39)
