Cleaning the Hook Race, Feed Dog and Thread

Cutter Mechanism

WARNING:

Turn the power switch off and unplug the machine before

cleaning.

CAUTION:

Make sure to open the automatic needle converter

before removing the needle plate.

NOTE:

Do not dismantle the machine in any way other than

what is explained on this page.

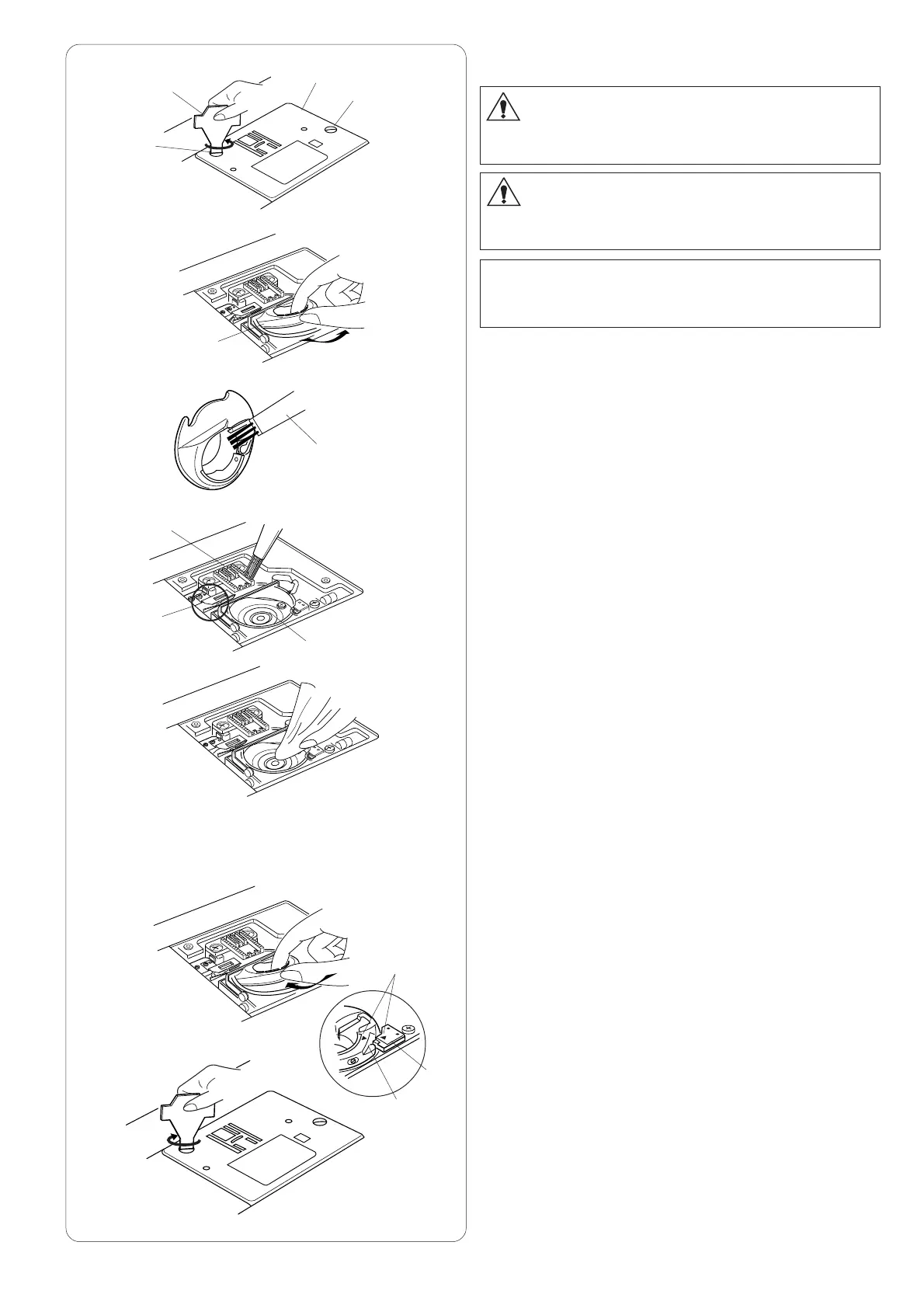

z Remove the needle and presser foot. Remove the

setscrews and remove the needle plate.

1 Screwdriver

2 Setscrew

3 Needle plate

x Take out the bobbin. Lift up the bobbin holder and

remove it.

4 Bobbin holder

c Clean the bobbin holder with the lint brush and a soft

dry cloth.

5 Lint brush

v Clean the feed dog, thread cutter mechanism and

hook race with the lint brush.

6Feed dog

7 Thread cutter mechanism

8 Hook race

b Clean the hook race with a dry cloth.

Reattaching Bobbin Holder and Needle Plate

n Insert the bobbin holder. The knob of the bobbin

holder should fit next to the stopper on the hook race.

Be sure to align the triangle marks on the bobbin

holder and stopper.

9 Knob

10 Stopper

11 Tr iangle marks

m Reattach the needle plate and tighten the screws.

NOTE:

After cleaning the machine, insert the needle and attach

the presser foot.
