ESSENTIAL PARTS

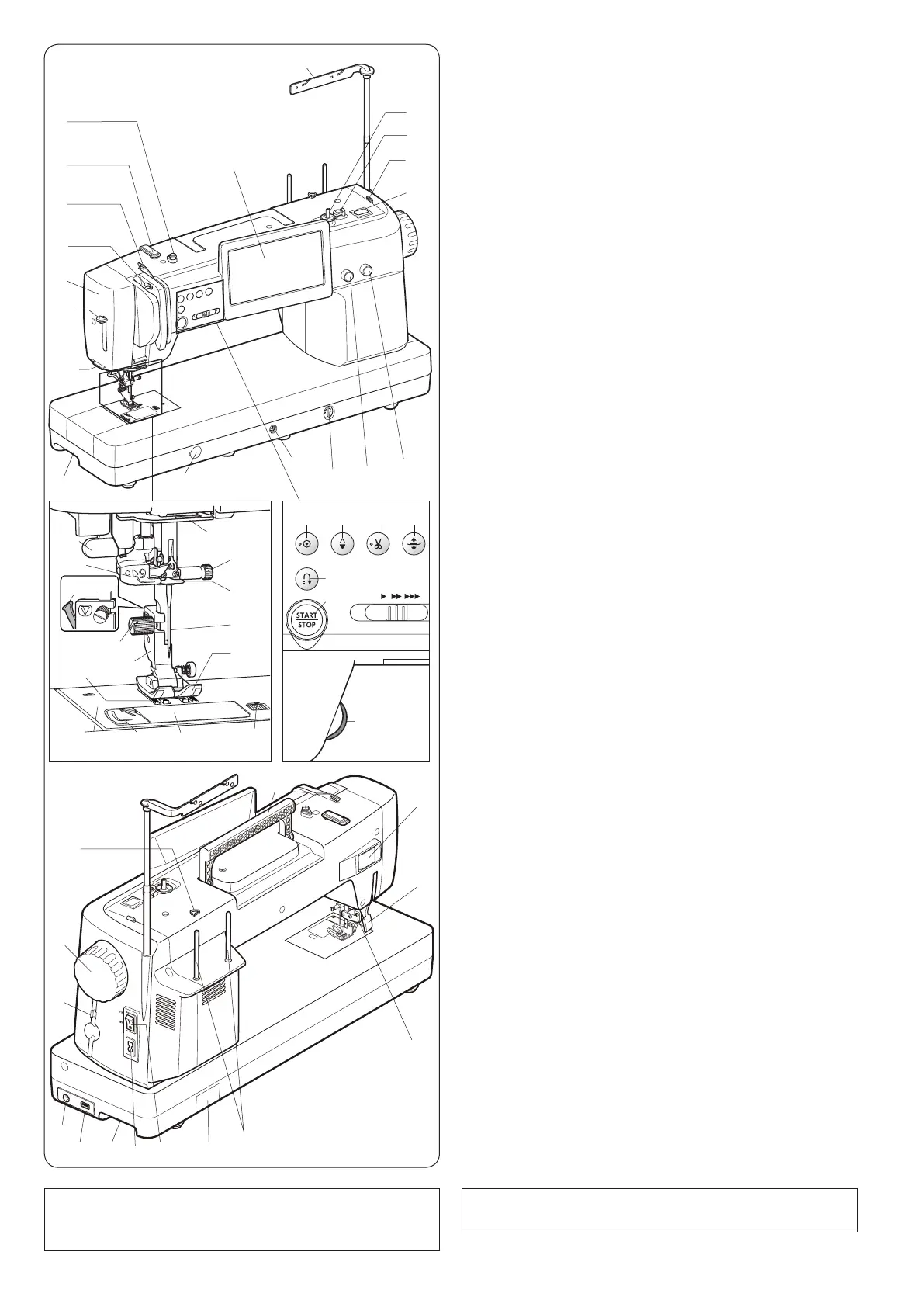

Names of Parts

(1) Face plate

(2) Thread take-up lever

(3) Left thread guide

(4) Upper thread guide

(5) Bobbin winding tension disk

(6) Visual touch screen

(7) Retractable thread guide

(8) Bobbin winder spindle

(9) Bobbin winder stopper

(10) Bobbin thread cutter (upper)

(11) Bobbin winding button

(12) Stitch length adjusting dial (Jog dial)

(13) Stitch width adjusting dial (Jog dial)

(14) Feed balancing dial

(15) Knee lifter socket

(16) Needle plate release dial cap

(17) Carrying handle (lower)

(18) Thread cutter (on face plate)

(19) Needle threader lever

(20) Lower thread guide

(21) Needle clamp screw

(22) Needle bar thread guide

(23) Needle

(24) Zigzag foot A

(25) Hook cover release button

(26) Hook cover plate

(27) Bobbin thread cutter

(28) Needle plate

(29) Feed dogs

(30) Foot holder

(31) Thumbscrew

(32) Lever

(33) Needle threader

(34) Buttonhole lever

(35) Thumb wheel

(36) Start/stop button

(37) Reverse button

(38) Auto-lock button

(39) Needle up/down button

(40) Thread cutter button

(41) Presser foot lifter button

(42) Speed control slider

(43) Presser foot lifter

(44) Dual feed drive

(45) Spool pins

(46) Battery cover

(47) Power switch

(48) Machine socket

(49) USB port

(50) Foot control jack

(51) Touch panel stylus holder

(52) Handwheel

(53) Right thread guide

(54) Carrying handle (upper)

(55) Attachment connector cover

NOTE:

To carry the sewing machine, refer to page 10.

NOTE:

Sewing machine design and specications are subject

to change without prior notice.
