800-CT24 module
15.2 Modules - Error cases
As already described in Sect. “7.4.3 Module identifi-
cation - LED blink interval” on p. 30, the module
has 4 LEDs.
Number of
blinks
Error state
0 No error - normal operation.
1
Waiting for termination of the start pulse
for the termination.
2
Waiting for response of the following
module.
3 Waiting for start of addressing pulse
4
Waiting for the end of the addressing
pulse.
5 Termination failed.
10
Application could not be started, module is
still in the bootloader.
Tab.: Number of blinks/error status
In the event of an error, the red LED (E) of the rele-
vant module blinks during operation at an interval of
0.5 s.
After the definition of the error state there is a pause
of 2 s and the blink interval starts again from the
beginning (repetition loop).
The number of blinks indicates the following error
states:
Proceed as follows in the event of a module error:
1. Restart your meter and module topology (ba-
sic device: Menu > Configuration > System >
Restart).
2. Check the connections and the fit of the devic-
es, modules and components of your meter and
module topology while complying with the safety
rules!
WARNING
Risk of injury due to electrical current and voltage!
Severe bodily injury or death can result! Therefore
please abide by the following:
· Do not touch bare, stripped wires or device in-
puts that are dangerous to touch on the devic-
es, components and modules.
· Switch off your installation before commenc-
ing work! Secure it against being switched on!
Check to be sure it is de-energized! Ground and
short circuit! Cover or block off adjacent live
parts!
3. If these measures are unsuccessful, please con-
tact our support team (www.janitza.com)!

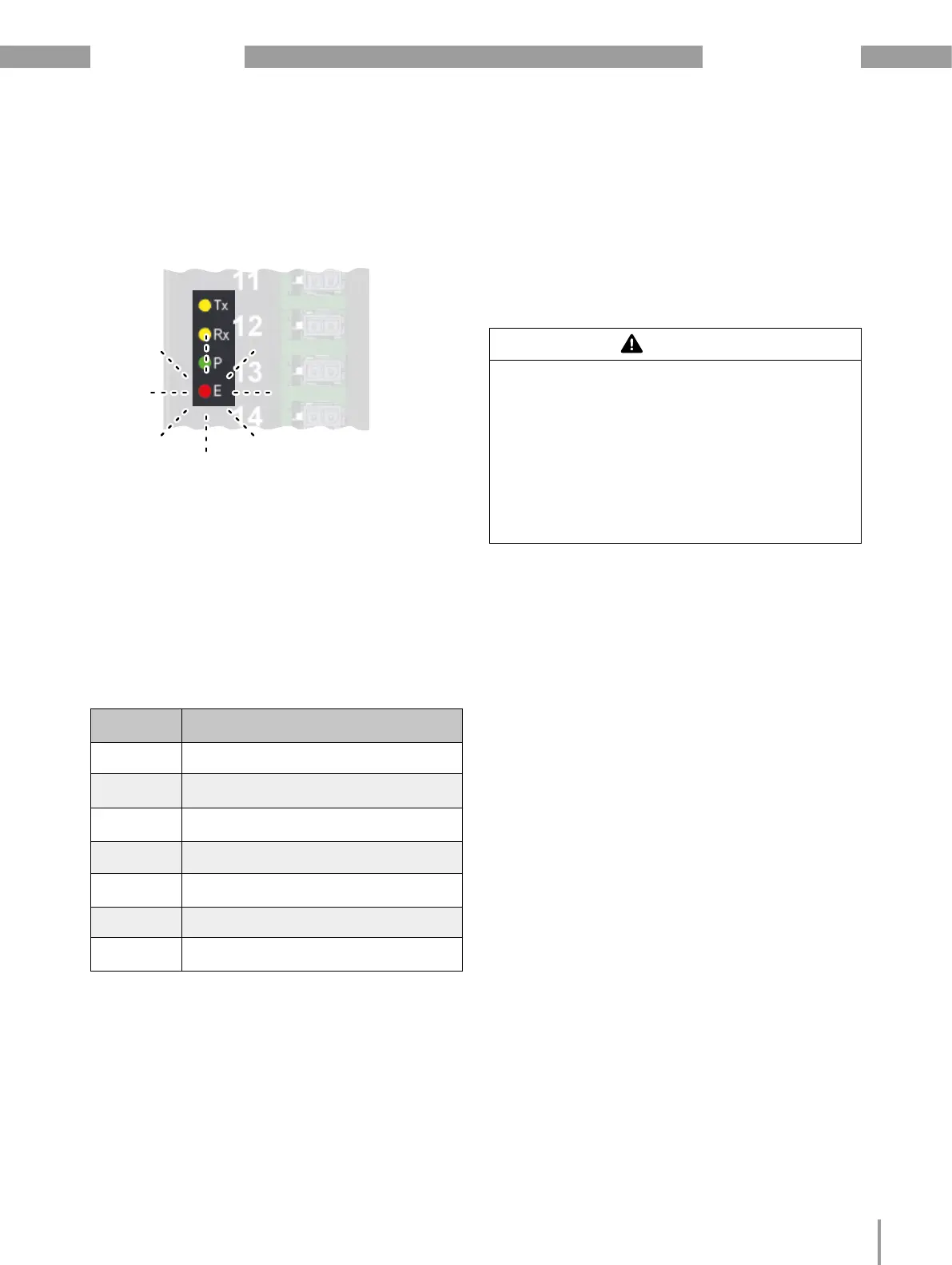

Fig.: LED status in the event of an error
