800-CT24 module
· Configure the secondary side of the current trans-
formers I1..I4 of the module in the same way (note
here the "nominal voltage in mV" for the LP current
transformers).
· Confirm your entries with button 3 Enter or end the
action by pressing button 1 ESC.
· The other LP current transformer ratios 5-8 (I5..
I8) to 21-24 (I21..I24) of the respective primary and
secondary side can be configured using the function
buttons as described above.
· You can return to the menu by confirming your en-
tries with button 3 Enter, or end this operation with
button 1 ESC.
10.2 LP current transformer configuration in the
GridVis
®
software:
A wizard in the GridVis
®
network analysis software
helps with all module-relevant settings. Also note the
usage information of the basic device.
INFORMATION
You can also configure current and voltage trans-
former ratios in the device configuration of the
GridVis
®
software (see Fig. below). A description of
the configuration can be found in the online help or
in the tutorials for the software.

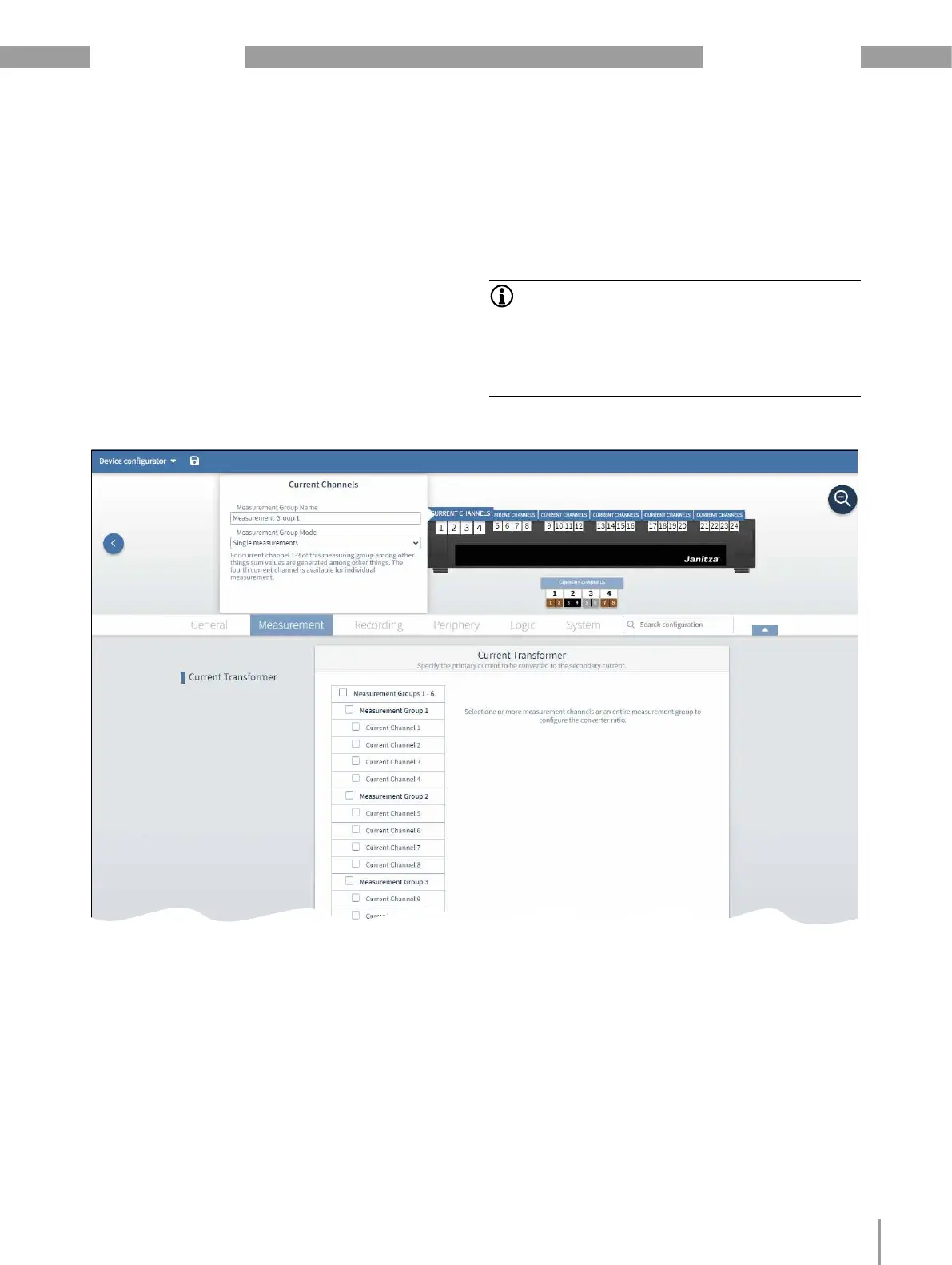

Fig. Current transformer configuration "1st CT24 module" (800-CT24) in the GridVis
®
software.
