800-CT24 module www.janitza.com

32

8. Module communication / PC connection

8.1 Ethernet communication via basic device

The PC connections of the basic device or your

module series via the Ethernet interfaces are shown

below using the UMG801 as an example for other

basic devices.

The basic device has two Ethernet interfaces for

communication with the 800-CT24 current measur-

ing module (via module 800-CONRJ45).

INFORMATION

The interfaces of the 800-CT24 module are pro-

prietary RJ45 JanBus interfaces! Do not connect

to RJ45 Ethernet interfaces!

Use the two RJ45 Ethernet interfaces on the basic

device to configure, manage and monitor your basic

device with the modules in a measurement device

and module topology.

For the modules assigned to a basic device, this

creates communication options via

· The display and buttons of your basic device.

· An HMI (human machine interface) integrated into

your measurement device and module topology.

· A network with a PC running the GridVis

®

software

or a generic OPCUA client.

· The homepage of the basic device, if applicable.

Patch cable

PC with GridVis

®

DHCP

server

EthernetA

Switch/

Router

EthernetB

E.g.

HMI

Ethernet

Connection example 1

E.g. UMG605 as a gateway (master device)

E.g. connection of further slave devices

Ethernet

Ethernet

RJ45 JanBus interfaces!

Do not connect to RJ45

Ethernet interfaces!

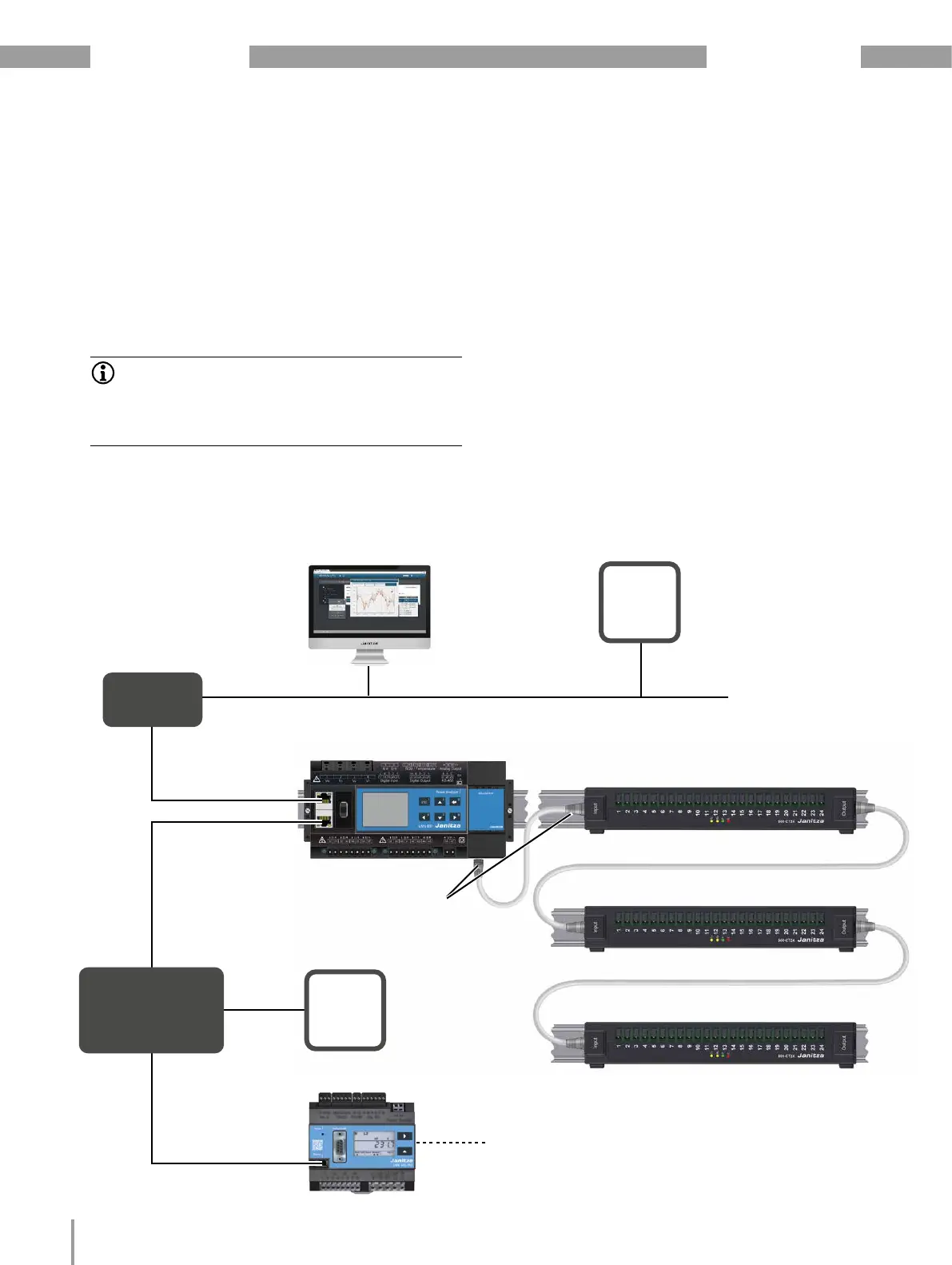

8.1.1 Connection example 1

Schematic representation of the Ethernet communication of the modules in a measurement device and mod-

ule topology with connection to a PC and DHCP server.

800-CT24

RJ45 cable (RJ45 patch cable)!

RJ45 cable (RJ45 patch cable)!

E.g. company net-

work with individual

measurement de-

vice, component and

module topology

!

800-CT24

800-CT24

Basic device
