800-CT24 module www.janitza.com
24

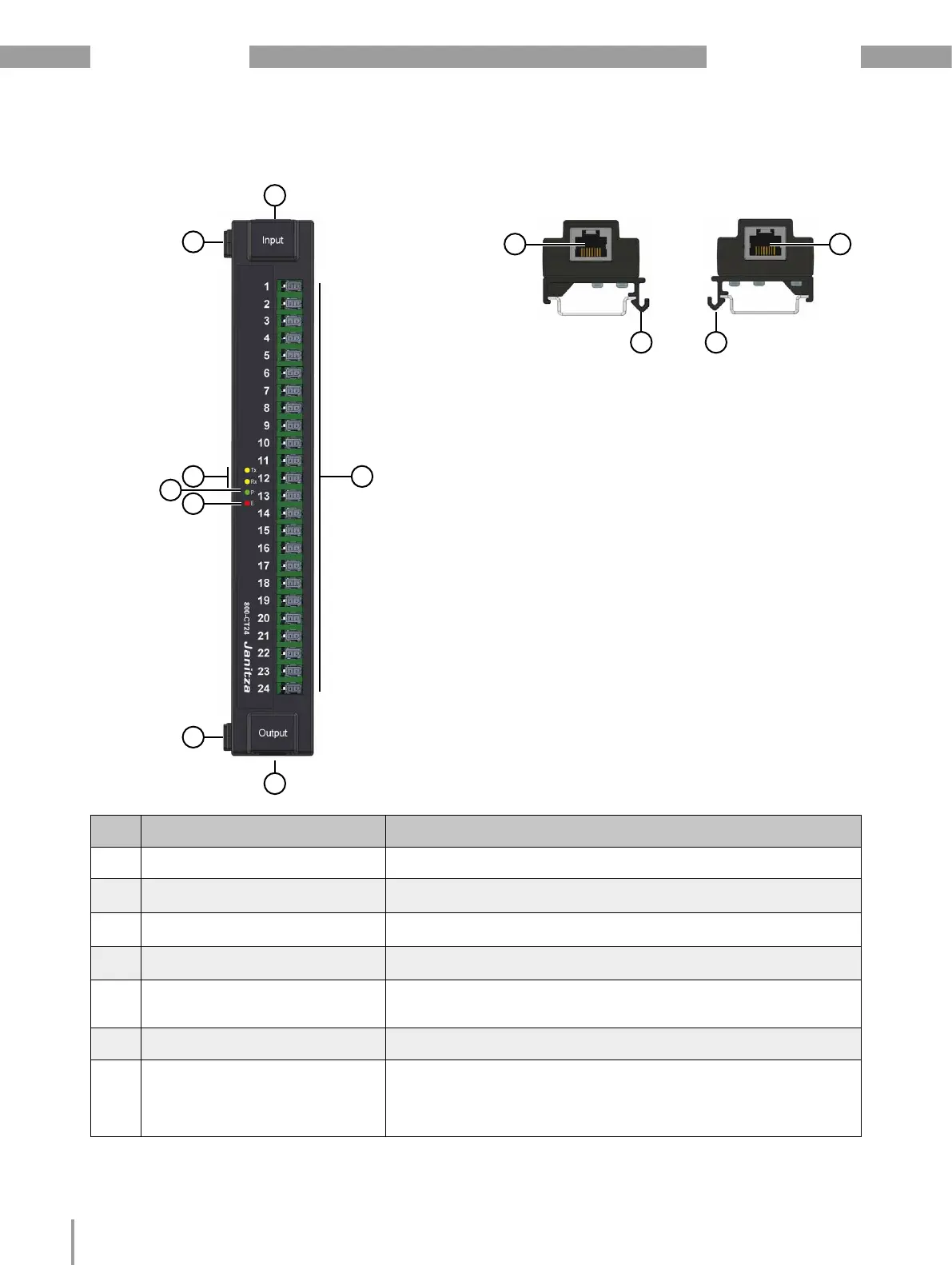

5. Connections/controls
Item Designation Description
1 Bottom bolt (retaining brackets) For mounting the module on the DIN rail
2 LED (E ... Error)
Lights "red" during initialization/startup and in the event of a fault (error). Note
in this regard Sect. “15.2 Modules - Error cases” on p. 57.
3 LED (P ...Power)
Lights "green" if the supply of power via the JanBus
interface of the basic device is correct; the device is ready for operation.
4
2 LEDs
(Tx... Transmit data, Rx... Receive data)
Blink "orange" during operation and indicate cyclic data exchange.
5 RJ45 interface - input
· Interface input for integrating the module into the JanBus-device and
module topology.
· JanBus (proprietary) via RJ45 cable (commercially available Ethernet cable).
6 24 LP current transformer interfaces 24 LP current transformer connections
7 RJ45 interface - output
· Interface output for integration of further modules into the JanBus-device
and module topology.
· JanBus (proprietary) via RJ45 cable (commercially available Ethernet cable).
· The maximum bus length of the JanBus can be found in Sect. “13.
Technical specifications” on p. 53.
Tab. Connections and controls
Input side Output side
3
2
5
7
1
1
5 7
1 1
64
