Before installing the unit, check the packaging and machine for damage. If the
packaging is damaged, the machine might also be damaged. If there is damage to
both the packaging and machine, do not throw away the packaging. The dishmachine
has been inspected and packed at the factory and is expected to arrive to you in new,
undamaged condition. However, rough handling by carriers or others might result in
damage to the unit while in transit. If so, do not return the unit to the manufacturer;
instead, contact the carrier and ask them to send a representative to the site to inspect
the damage and complete an inspection report. You must contact the carrier and dealer
that sold you the unit within 48 hours of receiving the machine.
While unpacking the machine, ensure that there are no missing parts. If an item is
missing, contact the manufacturer immediately.
The dishmachine must be level in its operating location to
prevent damage to the machine during operation and to
ensure the best results. The unit comes with four adjustable
bullet feet, which can be turned using a pair of channel locks
(or by hand if the unit can be raised safely). Ensure that
the unit is level from side-to-side and front-to-back before
making any connections.
Plumbing connections must comply with all applicable local, state, and national
plumbing codes. The plumber is responsible for ensuring that the incoming water line
is thoroughly ushed before connecting it to any component of the dishmachine. It is
very important to remove all foreign debris from the water line that might potentially get
trapped in the valves or cause an obstruction. Any valves that are fouled as a result of
foreign matter left in the water line—and any expenses resulting from this fouling—are
not the responsibility of the manufacturer.
The drains for the models covered in this manual are gravity discharge drains. All piping
from the 1 1/2” NPT connection on the wash tank must be pitched 1/4” per foot to the
oor or sink drain. All piping from the machine to the drain must be a minimum 1 1/2”
NPT and must not be reduced. There must also be an air gap between the machine
drain line and the oor sink or drain. If a grease trap is required by code, it should have
a ow capacity of 5 GPM. For units equipped with the Drain Quench Option, see the
Drain Quench Assembly section of this manual.
INSPECTION
Do not throw away
packaging if damage is
evident.
LEVELING
UNPACKING
PLUMBING
CONNECTING THE
DRAIN LINE

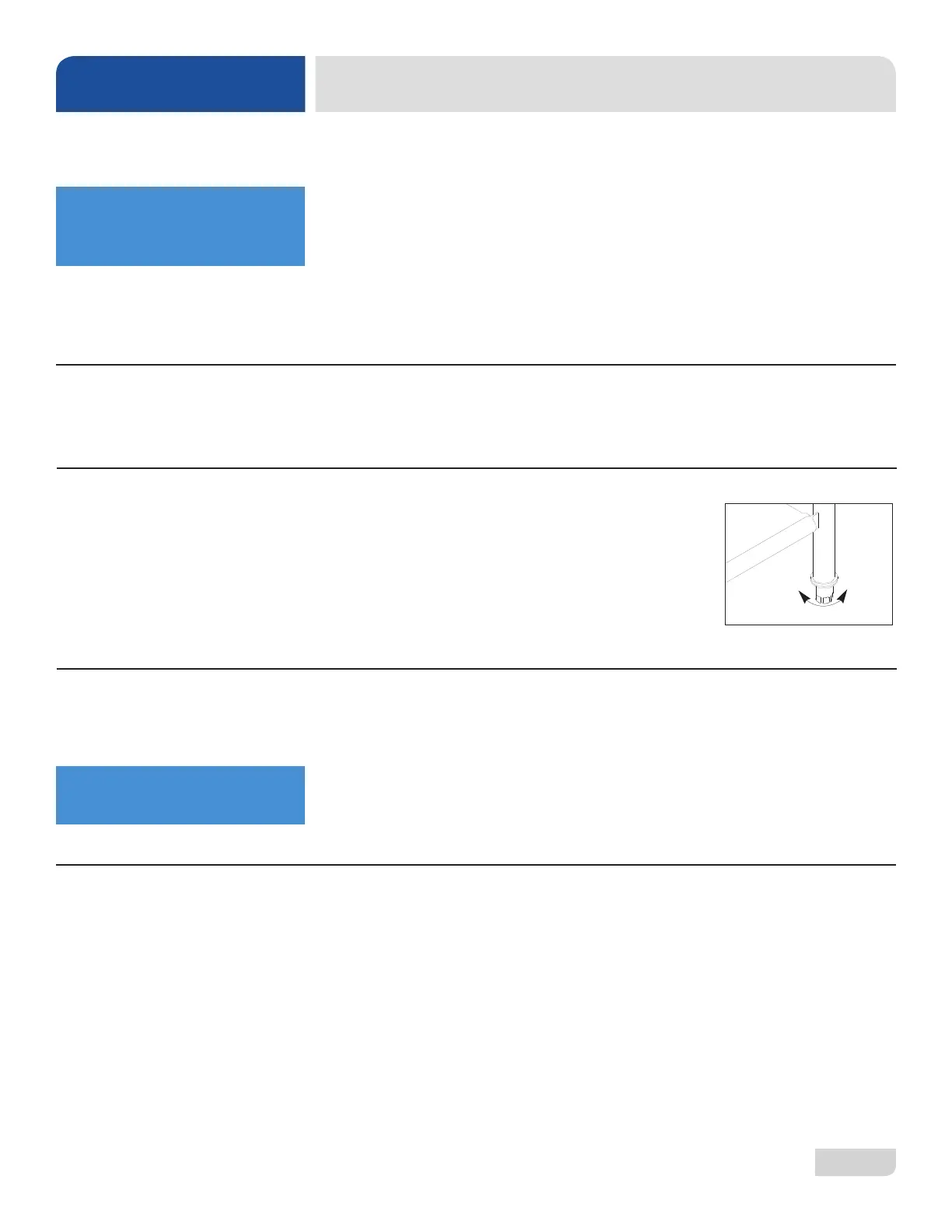

Frame with Adjustable Foot
Raise
Lower
The plumber MUST ush
the incoming water line!
