Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A
SECTION 5: PARTS SECTION
INCOMING & OUTLET PLUMBING ASSEMBLIES (CONTINUED)
37
ITEM QTY DESCRIPTION Mfg. No.
1 1 Water Pressure Regulator, 3/4" NPT 06685-011-58-22
2 1 Valve, Ball, 1/4" NPT 04810-011-72-67
3 1 Gauge, Pressure, 0-100 PSI 06685-111-88-34
4 2 Nipple, Close, 3/4" NPT 04730-207-34-00
5 1 Tee, Brass, 3/4" NPT x 3/4" NPT x 1/4" NPT 04730-211-04-00
6 1 Valve, Solenoid, 3/4" NPT 04810-100-03-18
7 1 Nipple, Brass, 3/4" NPT x 2" Long 04730-207-46-00
8 1 Elbow, 3/4" NPT, Brass, Street 04730-206-04-34
9 3 Union, 3/4" NPT, Brass with O-ring 05700-002-63-79
10 4 Adapter, 3/4" Male 04730-401-11-01
11 1 Tube, Copper, 3/4" x 48" Long 05700-011-87-89
12 2 Elbow, 3/4", 90°, #707 Copper 04730-406-16-01
13 3 Adapter, 3/4", 604-2 04730-401-10-01
14 1 Tube, Copper, 3/4" x 3 3/4" Long 05700-011-58-28
15 1 Vacuum Breaker, 3/4" NPT 04820-002-53-77
16 1 Tube, Copper, 3/4" x 44 3/8" Long 05700-002-25-05
17 1 Elbow, 3/4" 90° Copper to FSPS Brass 04730-406-41-01
18 1 Elbow, 3/4" 90° Copper to Copper Street 04730-406-40-01
19* 2 Double Pipe Clamp 05700-002-23-89
20* 1 Bracket, Incoming Plumbing Support 05700-021-34-02
When servicing plumbing components, take care not to damage the threads of each individual item. Damaged threads can
cause leaks and loss of pressure, which could adversely effect the performance of the dishmachine. It is strongly recommended
that teflon thread tape, used in conservative amounts, be applied to threads when joining components together. It is not advised
to use thread sealing compounds, sometimes referred to as “pipe dope”. Compounds can be ejected from the threads during
the tightening process and become lodged in key components, thereby rendering them useless. Some of the components
include the solenoid valve and the pressure gauge isolation ball valve.

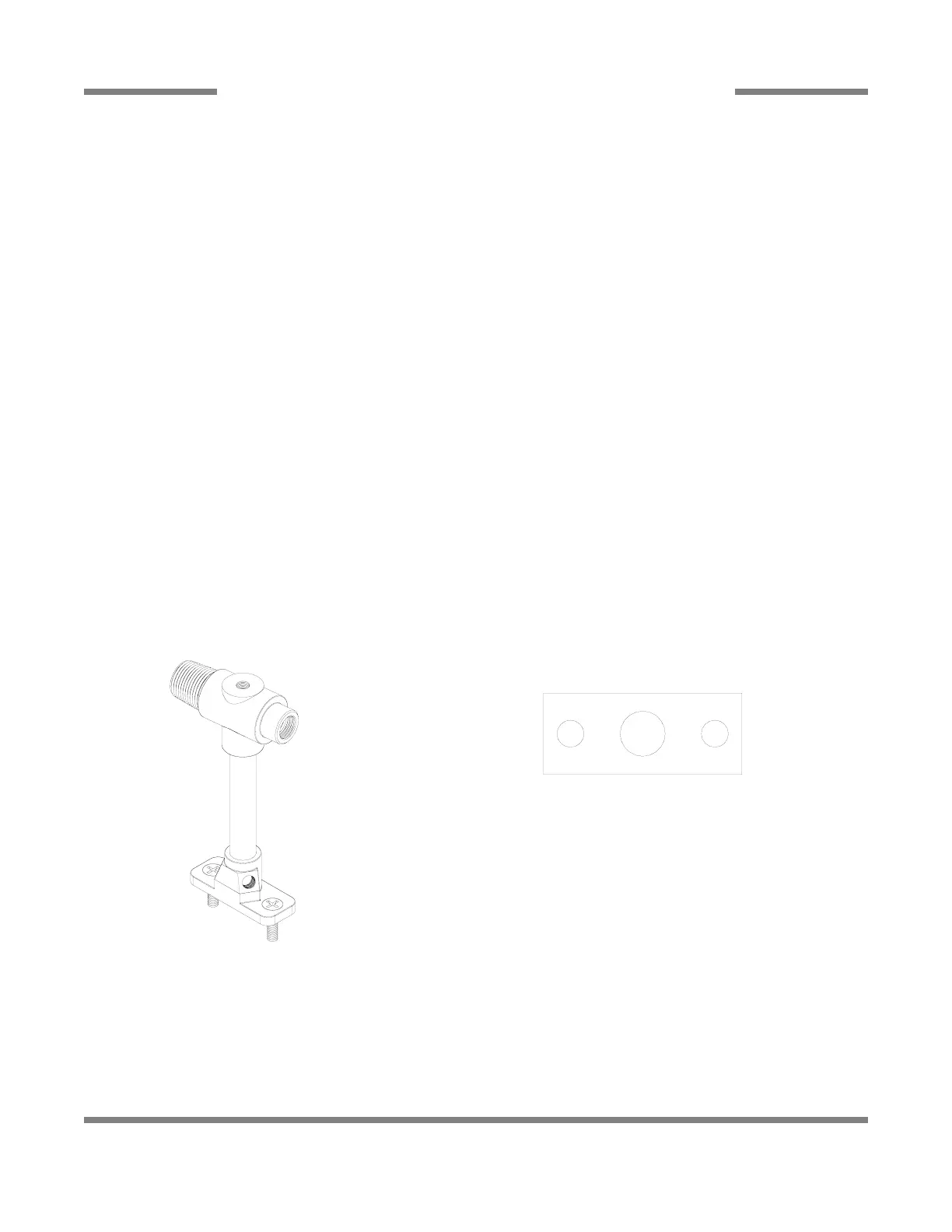

Rinse Injector Weldment
1 per machine
05700-021-47-65
Plug, 1/8” NPT, Brass
3 per Rinse Injector
04730-209-07-37
Rinse Injector Gasket
2 per machine
05330-111-42-81
