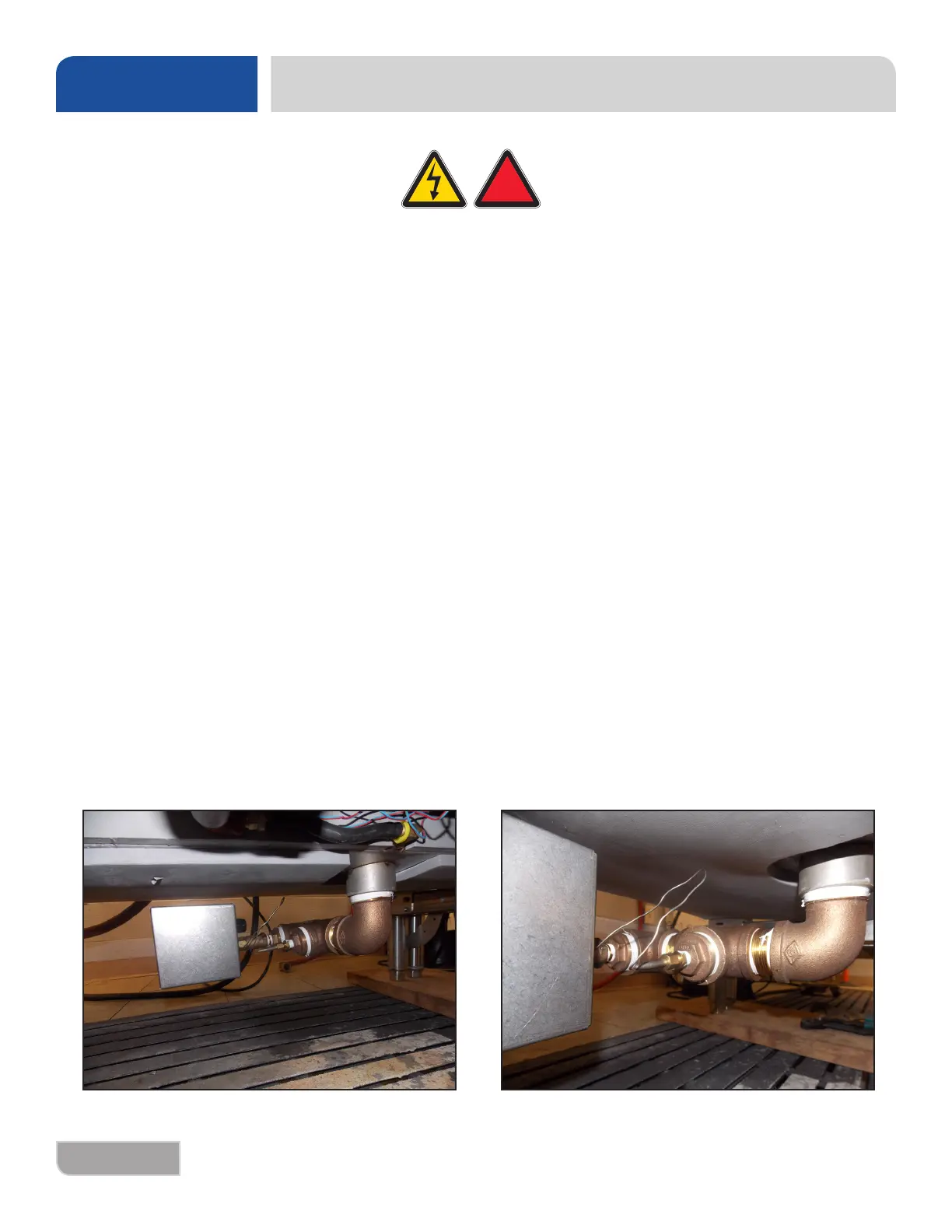

INSTALLATION
DRAIN QUENCH KIT INSTRUCTIONS
Instructions
1. Connect Drain Quench Assembly to the machine drain via 1.5” NPT street elbow (04730-206-32-00).
2. Orient assembly as shown below:
• This kit should only be installed by qualified service personnel to reduce the risk of electric shock, serious injury, or
fire. A plumbing permit and the services of a licensed plumber and electrician might be required in some areas.
• Turn off the power supply and place the dishwasher disconnect (if applicable) in the off position. Lockout/tag-out to
prevent the power supply from being turned back on accidentally.
• Failure to install this kit within the guidelines might adversely affect safety, performance, component life, and warranty
coverage.
• Do NOT pull power for the Drain Quench Assembly from the machine! 120V facility power only!
Tools Required
• Pipe Wrench
• Adjustable Wrench
• 5/16” Nut Driver
• 3/8” Nut Driver or Wrench
• Phillips Screwdriver
• Pipe Thread Sealant Tape or "Pipe Dope"
• Needle-nose Pliers
!
WARNING
