52
ITEM QTY DESCRIPTION PART NUMBER
1 1
Cover, Electrical Section, FlightStar
Cover, Electrical Section, FlightStar Steam
05700-004-73-54
05700-003-93-62
2 1 Rail, Conveyor Upper Rear 05700-004-71-98
3 2 Extension, Conveyor Rail 05700-004-82-19
4 1 Rinse Capture Pan 05700-004-73-56
5 1 Water Line Support 05700-004-77-57
6 2 Connector, 2" No-hub 04730-002-66-87
7 1 Plumbing, Drain, Electrical Section 05700-004-73-60
8 2 Bracket, Drain Pipe 05700-004-72-35
9 2 Rinse Arm Support 05700-004-69-85
10 1 Rail, Conveyor Upper Front 05700-004-71-99
11 1 Dress Panel, Front 05700-004-62-87
12 1 Latch, Door Compression 05340-002-80-97
13 1 Handle, Top Panel 05700-002-67-21
14 1 Vent Exhaust Fan 06105-002-86-46
15 1 Vent Adapter Assembly 05700-003-92-86

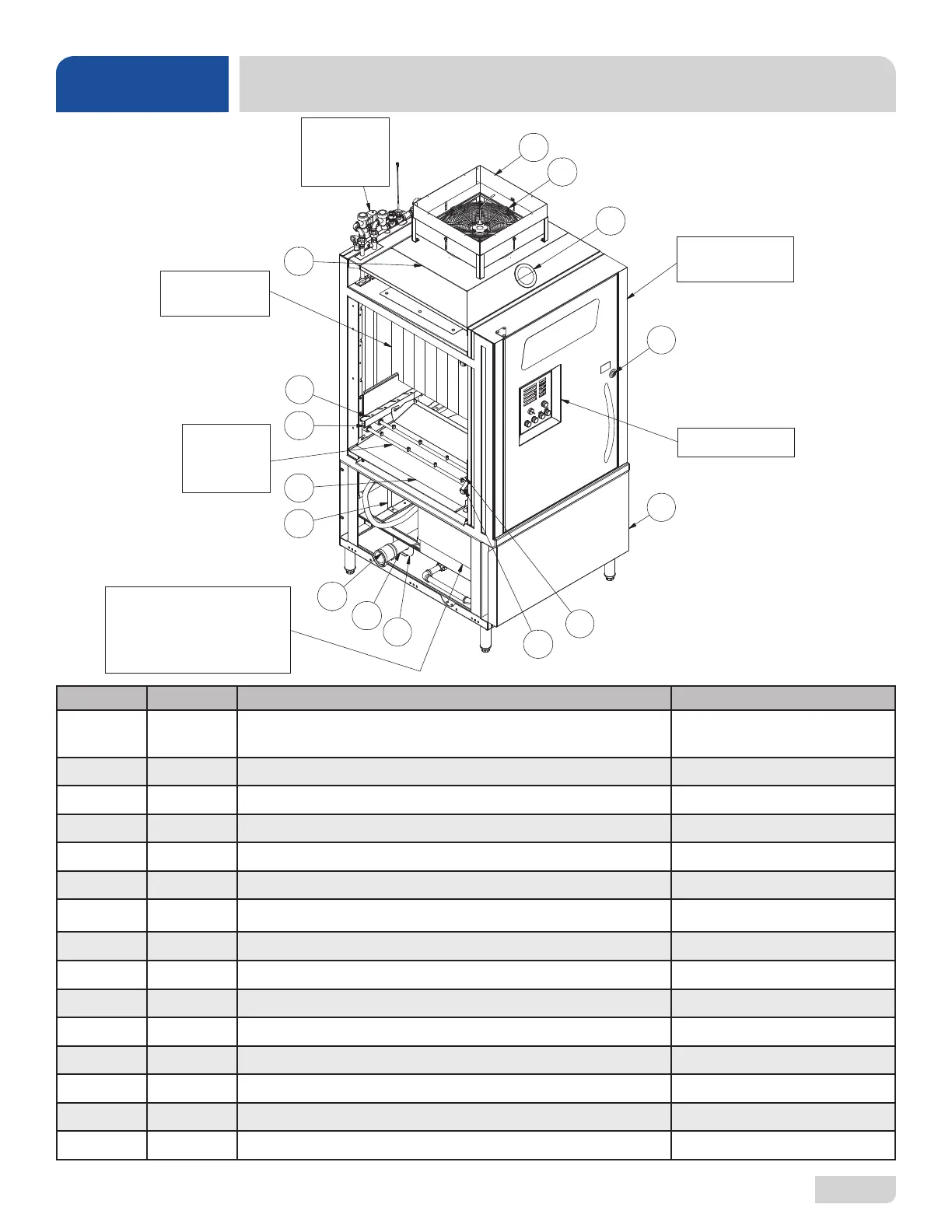

ELECTRICAL SECTION
PARTS
15
14
13
12
11
6
7
8
9
4
5
3
2
1
10
Final Rinse
Plumbing
& Arms
Final Rinse
Plumbing
& Arms
Electrical
Control Box
Electric Booster
& Plumbing or
Steam Booster &
Plumbing
Display
Strainers &
Curtains
