ITEM QTY DESCRIPTION PART NUMBER
1 1 Steam Trap Assembly 05700-004-87-03
2 2 Elbow, 3/4" x 1/2" Black Iron 04730-003-75-92
3 1 Nipple, 3/4" Close Black Iron 04730-907-01-00
4 2 Union, 3/4" Black Iron 04730-912-01-00
5 1 Elbow, 90-degree, 3/4" 04730-011-87-37
6 1 Steam Piping Assembly One 05700-004-87-01
7 1 Steam Piping Assembly Two 05700-004-86-98
8 1 Nipple, 3/4" x 20" Black Iron 04730-004-87-02
9 1 Steam Coil Assembly 05700-004-79-87
10 4 Gasket, Steam Coil 05700-001-17-86
11 2 Nut, Steam Coil Adapter 05310-011-17-85
12 1
Steam Valve Piping Assembly
Solenoid Valve Only
05700-004-79-81
04820-011-87-39
13 1 Nipple, 3/4" x 2" Black Iron 04730-004-85-28
12
9
7
6
1
8
4
5
3
2
4
2
13
10
11

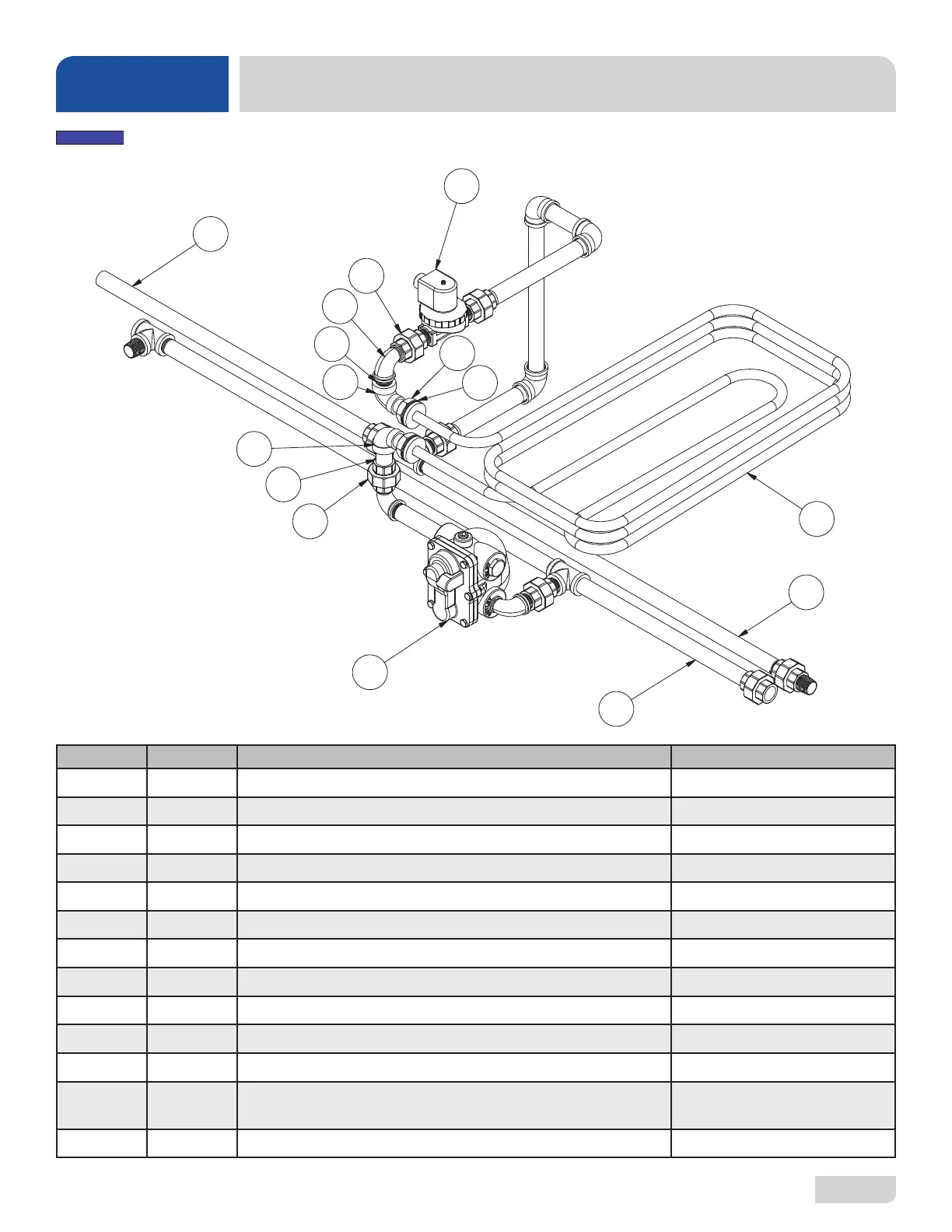

POWER RINSE STEAM COIL & PLUMBING, R-L
PARTS
This steam coil assembly is used only in the FlightStar Steam Power Rinse Section, R-L.
NOTICE
Complete Power Rinse Section
Steam Coil & Plumbing
Assembly, R-L
05700-004-86-97
