WASH

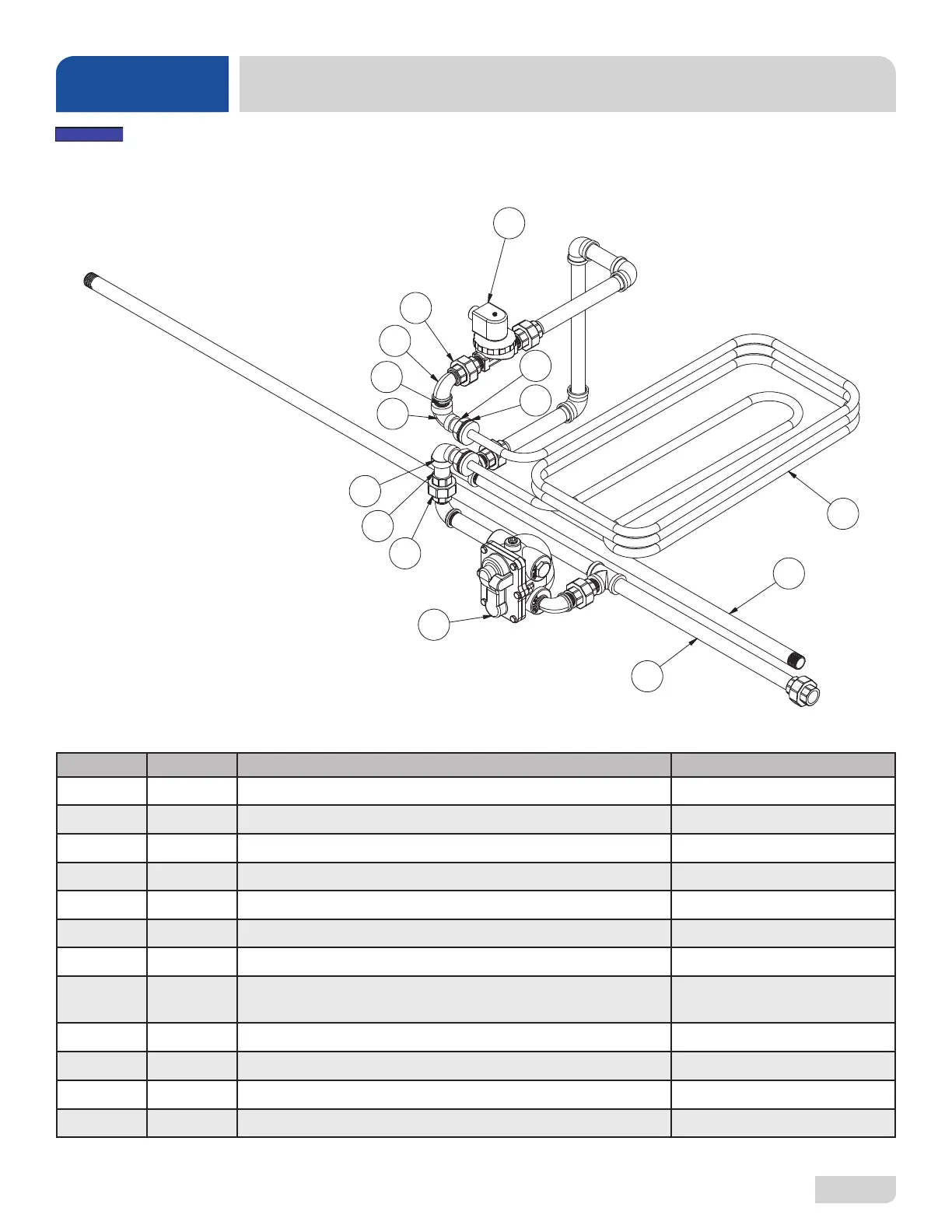

STEAM COIL & PLUMBING, L-R
This steam coil assembly is used only in the FlightStar Steam Wash Section, L-R.
PARTS
NOTICE
8
3
4
2
1
1
12
3
9
11
10
7
5
6
Complete Wash Section
Steam Coil & Plumbing
Assembly, L-R
05700-004-79-97
ITEM QTY DESCRIPTION PART NUMBER
1 2 Elbow, 3/4" x 1/2" Black Iron 04730-003-75-92
2 6 Nipple, 3/4" Close Black Iron 04730-907-01-00
3 6 Union, 3/4" Black Iron 04730-912-01-00
4 3 Elbow, 90-degree, 3/4" 04730-011-87-37
5 4 Gasket, Steam Coil 05700-001-17-86
6 2 Nut, Steam Coil Adapter 05310-011-17-85
7 1 Steam Coil Assembly 05700-004-79-87
8 1
Steam Valve Piping Assembly
Solenoid Valve Only
05700-004-79-81
04820-011-87-39
9 1 Steam Trap Assembly 05700-004-79-93
10 1 Steam Piping Assembly One 05700-004-79-95
11 1 Steam Piping Assembly Two 05700-004-79-96
12 1 Nipple, 3/4" x 2" Black Iron 04730-004-85-28
