SECTION 5: SERVICE PROCEDURES
WASH TANK HEATER REPLACEMENT (CONTINUED)
22
11. Remove the old heater gasket and throw away.
12. Apply the new heater gasket.
13. Take the new heater and slide it through the hole in the
wash tank and line it up so the wash tank studs fit in the holes
on the heater flange (Step 10 in reverse).
14. Place the mounting nuts and lockwashers on the studs
and secure them with a 1/2” socket or wrench (Step 8 in
reverse).
15. Place the heater wires on the heater and tighten the nuts
down using the 3/8” nutdriver (Step 7 in reverse).
16. Using the torque wrench or a torque nutdriver (if available)
torque the nuts holding the wires, jumpers and bus bars to 16
in-lbs.
17. Replace the thermostat bracket using the 3/8” nutdriver
(Step 5 in reverse).
18. Replace the ELAN thermostat using a phillipshead screw-
driver (Step 4 in reverse). If you unplugged the wires, recon-
nect them per the machine schematic on the back of the door.
If not, move to the next step.
19. Replace the upper and lower strainers.
20. Ensuring that all non-essential personnel are clear of the
area, place the drain stopper back in the wash tank and
restore power and water to the unit. Turn the unit on and allow
it to fill normally.
21. Verify that there are no leaks around the heater. If there
are, attempt to tighten it down (with power secured to the unit
at the service breaker to prevent injury) as the tank will change
shape slightly as it heats up.
22. Use the amp meter to take readings off of the power lines
to the heater, verifying the amperage draw to the machine
data plate.
Delta 115/Delta 1200 Technical Manual 07610-003-62-15-M
Issued: 10-27-08 Revised: 11-19-2015

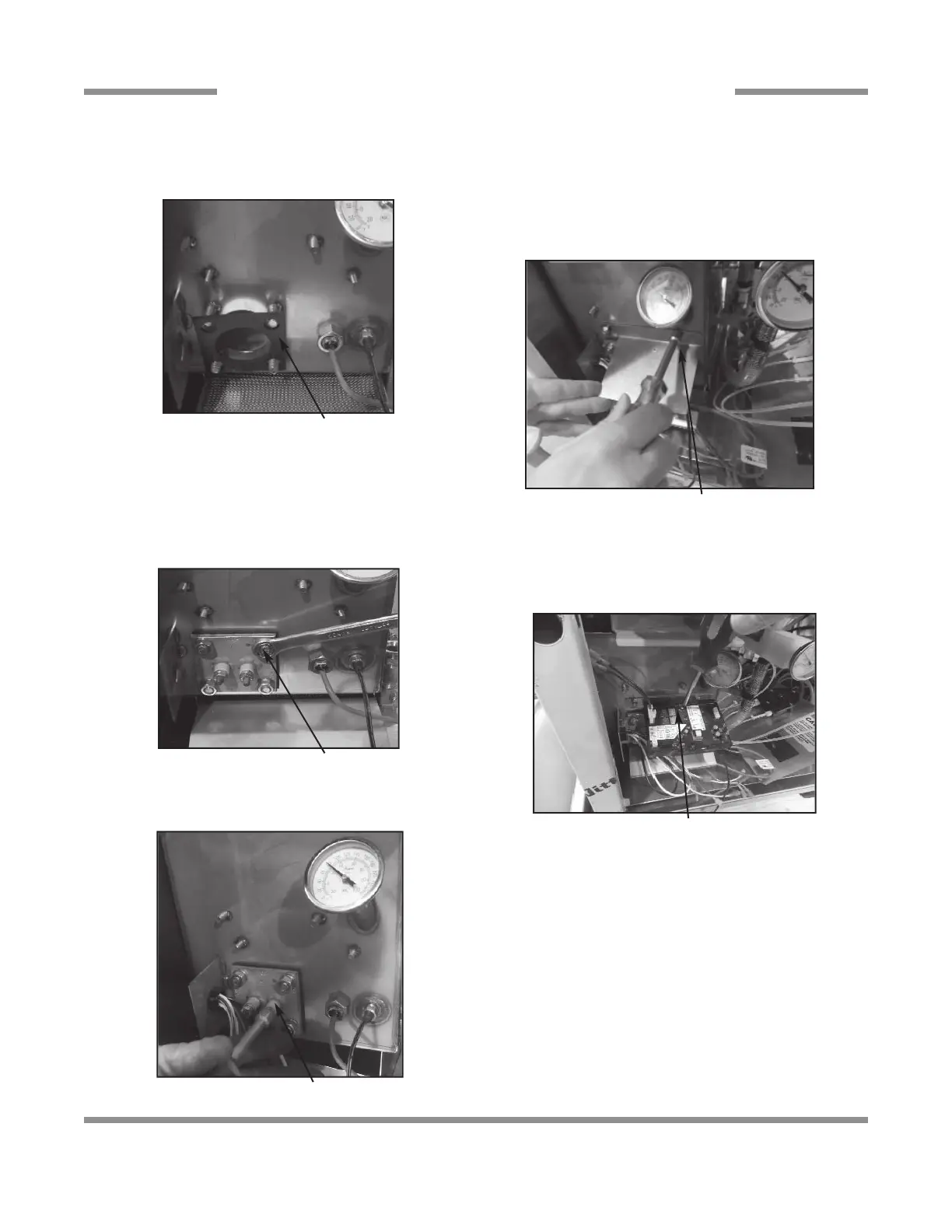

Securing the heater mounting nuts.
Applying the new heater gasket.
Replacing the heater nuts.
Replacing the thermostat bracket.
Replacing the ELAN thermostat.
