SECTION 5: SERVICE PROCEDURES
WASH TANK HEATER REPLACEMENT (CONTINUED)
21

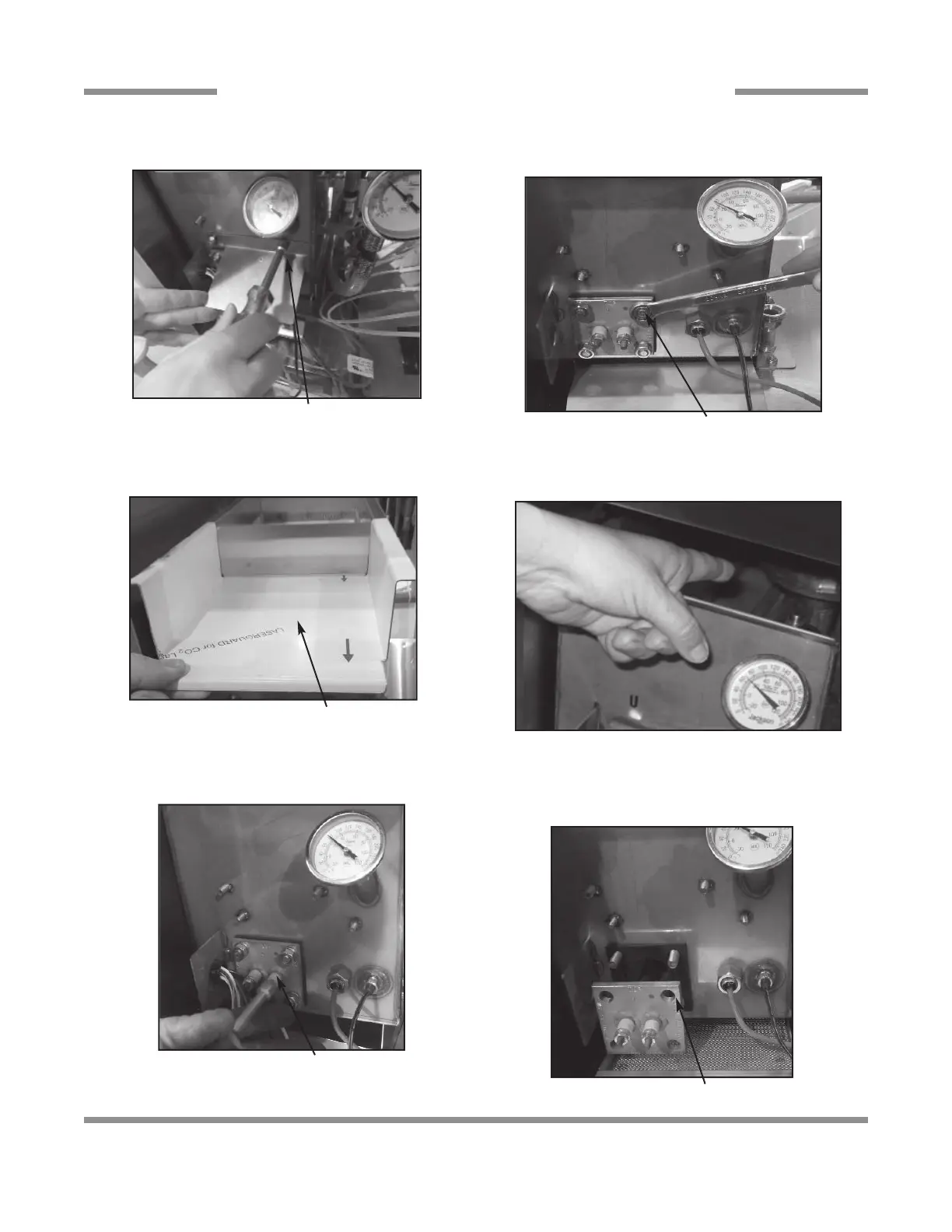

5. Remove the thermostat bracket with the 3/8” nutdriver.
6. Remove the upper (wash) strainer. Set both strainers to the
side where they will not be damaged or present a trip hazard.
7. Using the 3/8” nutdriver, remove the nuts securing the
heater wires to the heater. Then carefully pull the wires out of
the way.
8. Using a 1/2” socket or wrench, remove the heater mounting
nuts.
9. Removing the heater may require that you reach into the
wash tank, grasp it, and give it a push out of the wash tank.
10. Once the heater is pushed away from the tank wall, pull it
out with your hands.
Removing upper (wash) strainer.
Reaching into the wash tank.
Removing the heater nuts.
Removing the heater mounting nuts.
Delta 115/Delta 1200 Technical Manual 07610-003-62-15-M
Issued: 10-27-08 Revised: 11-19-2015
Removing the thermostat bracket.
Pulling the heater out.
