SECTION 5: SERVICE PROCEDURES
REPLACING THE CHEMICAL FEEDER PUMP MOTOR (CONTINUED)
18
6. Turn the cover over and using the phillipshead screwdriver,
remove the cover to the pump requiring a motor change.
7. With the cover removed, gently pull out the rubber tube from
inside the pump.
8. Remove the roller by pulling it off of the shaft.
9. Using the phillipshead screwdriver, remove the four mount-
ing screws for the motor.
10. Once the screws are removed, the motor should drop
away.
11. Cut away any tie-wraps that are holding the power wires
and remove the motor.
12. Take your new motor and attach new terminals to the wires
as required.
13. Remount the motor to the pump.

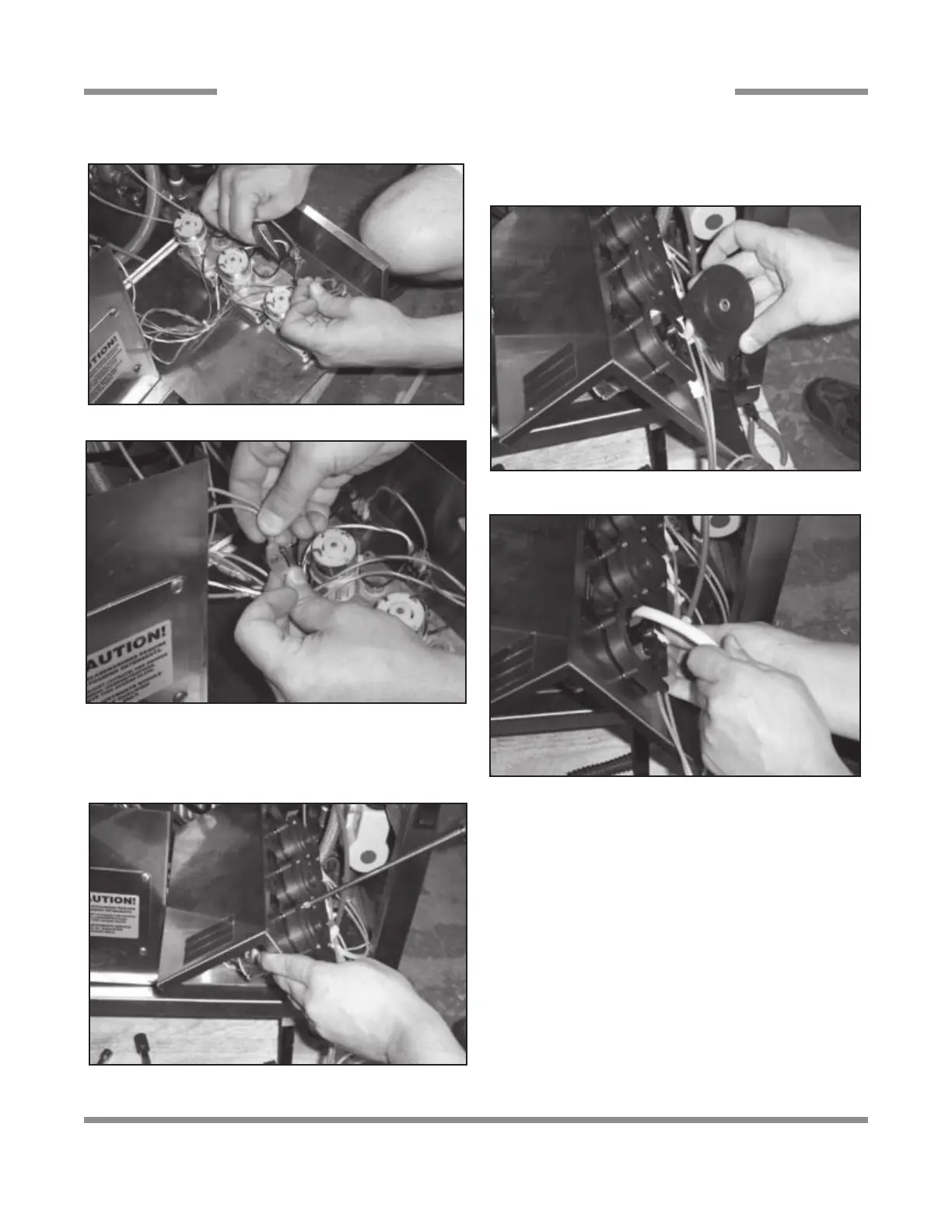

Removing the priming switch wire
Removing the front cover.
Pulling the rubber tube out of the pump.
Unhooking motor power wire
Removing the pump front cover screws.
Delta 115/Delta 1200 Technical Manual 07610-003-62-15-M
Issued: 10-27-08 Revised: 11-19-2015
