Product Overview

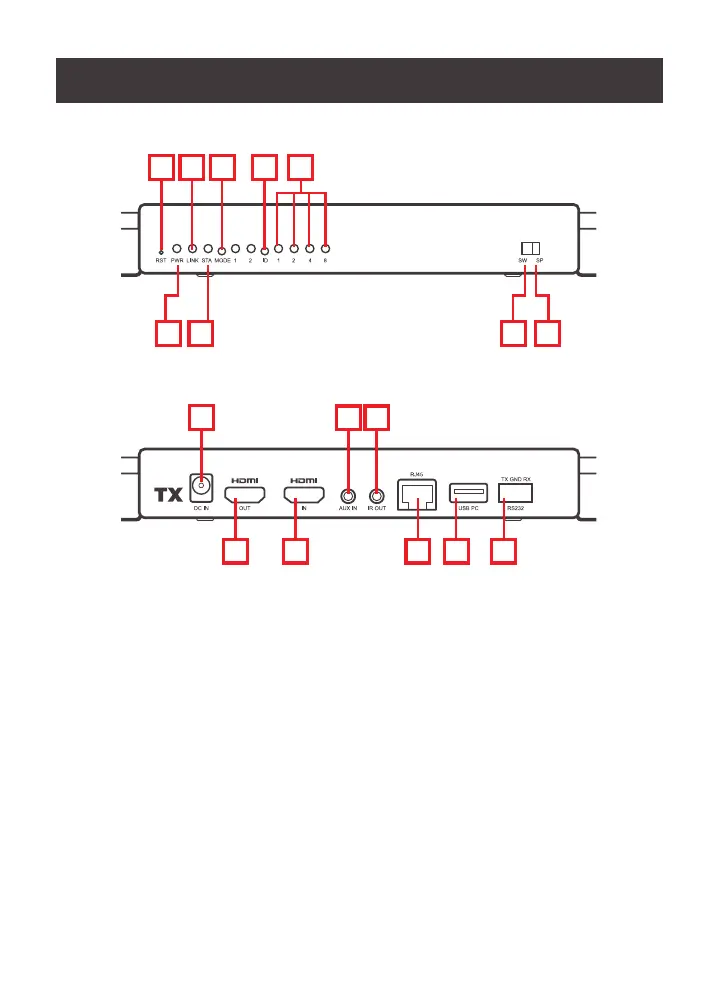

Transmitter Back
Transmitter Front
A. Reset button - Long press to reset to factory default settings
B. Power LED - ON when power is supplied
C. Link LED - Flashing when connected
D. Status LED - ON when HDMI cable is connected
E. Mode button - Short press to switch between Graphics Mode for shorter
latency and Video Mode (default) for less packet loss
F. Channel ID button - Press to switch channel ID. Please refer to #2 under
Hardware Installation on page 10.
G. Channel ID LED - The channel number is the sum of what each LED
represents. For example if LED 1 lights up that is Channel 1. If LED 1 and 2
lights up, that means you are on channel 3 (1+2) and if LED 2 and 4 lights up
that is channel 6 and so on. Refer to the table on page 12.
H. Switch mode - The Channel ID LED will light up to display what channel the
transmitter is on, to connect to the transmitter from the receiver you will need to
match the channel ID to be the same.
I. Splitter mode (default) - Direct Connection to receiver(s) for 1 to 1 extending
display or 1 to N multicast. No Channel ID will be displayed in this mode.
J. Power port - Requires 12V/1A power supply
