Setting up the GWLRSSKIT4K in Switch mode
Please note that although there are 15 channels, there can only be 10
transmitters to 1 receiver and to go from a higher channel to a lower channel
you need to cycle through to channel 15 to get back to channel 1 again.

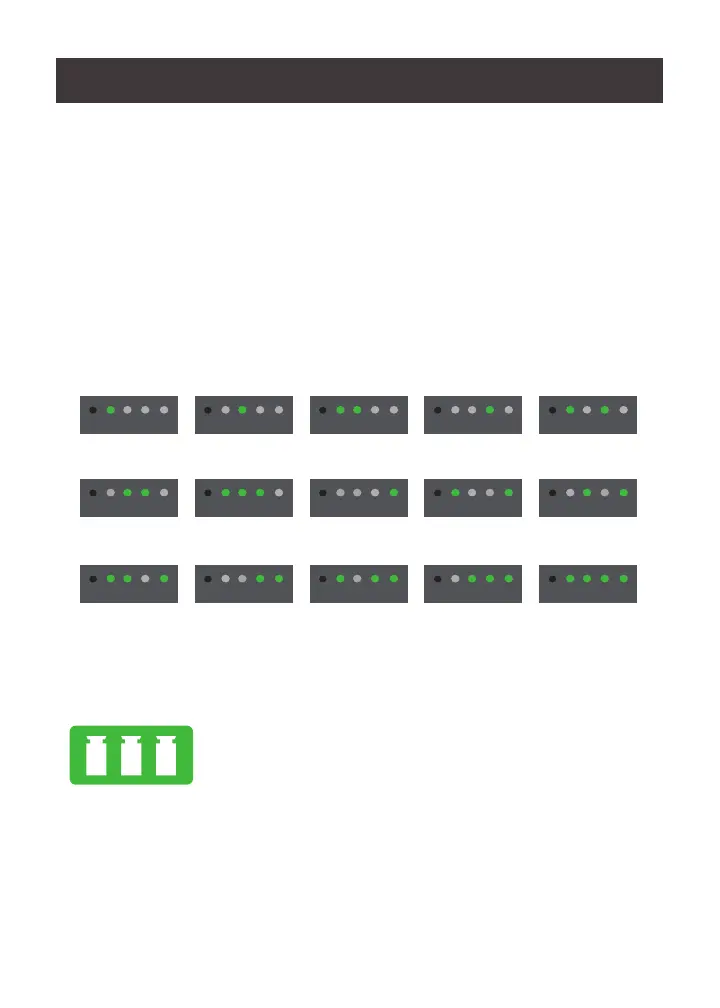

Channel adjustment: Channel 1-15. Press ID button to switch channel from 1 to
15. See below on how channel selection is implemented, digits under the LED are
added together to make all the channels except for channels 1, 2, 4 and 8.
As illustrated below, to get to dierent channels you need to add all the lighted
LEDs together. For example if LEDs 1 and 2 are lit up, that means you are on
channel 3 and if 1 and 4 are lit up that means it is on channel 5, and so on.
RS-232: Three pin assignments of the RS-232 ports from left to right are TX,
Ground, and RX respectively.
TX GND RX
ID 1 2 4 8
ID 1 2 4 8 ID 1 2 4 8
ID 1 2 4 8 ID 1 2 4 8
ID 1 2 4 8
ID 1 2 4 8 ID 1 2 4 8
ID 1 2 4 8 ID 1 2 4 8
ID 1 2 4 8
ID 1 2 4 8 ID 1 2 4 8
ID 1 2 4 8 ID 1 2 4 8
Channel 1
Channel 6
Channel 11
Channel 2
Channel 7
Channel 12
Channel 3
Channel 8
Channel 13
Channel 4
Channel 9
Channel 14
Channel 5
Channel 10
Channel 15
