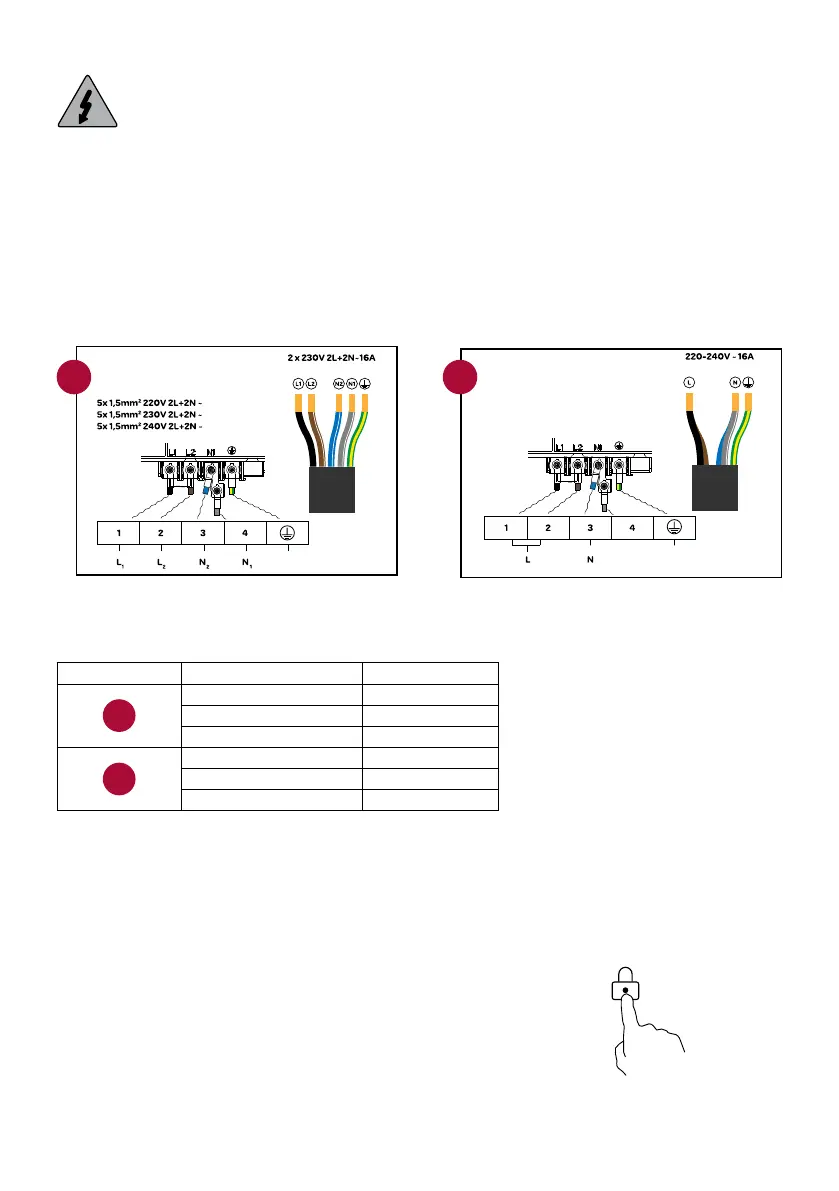

CONNECTING THE INDUCTION HOB TO THE ELECTRICAL SYSTEM
• The induction hob is supplied with a connecting cable without plug and, according to wiring diagram A1,
has a standard setting for 2 x 1 phase (230V AC). The induction hob uses a so-called 5-pole Perilix plug
(not included).
In the meter cupboard, the groups must each be protected with a 16 Ampere fuse at least.
• The induction hob can also be connected according to wiring diagram A2. This may only be performed
by a recognised installer. More instructions can be found in the enclosed instructions for the electrical
connection.
• The socket for connecting to the electrical system must be provided with an earthing pen and may
not be located above the induction hob. The socket for connecting to the electrical system must also
be accessible for the user after placement of the induction hob.
• Before connecting the induction hob, check that:
- the fuse and electrical system are suitable for the load of the induction hob,
- the electrical system is equipped with an adequate earthing system that meets the applicable standards
and regulations.
- the socket is easily accessible.
POWER MANAGEMENT
This function allows you to set the total maximum power of the induction hob. This may be necessary in connection with
the available electrical connection. By default, the induction hob is set to 7.4kW.
The induction hob can be set to one of the following values:
Wiring diagram Maximum power Shown on display
A1
7.4 kW (default) 74
6.0 kW 60
4.5 kW 45
A2
3.5 kW 35
3.0 kW 30
2.5 kW 25
The power is divided between all cooking zones. It is possible that the maximum available power for the combined cooking
zones is exceeded. This can cause the power to oscillate between the cooking zones. In that case, the power of the second
cooking zone is reduced automatically. When using three or four cooking zones simultaneously, the power level will
reduce further.
Once you have provided the supplied cable of the induction hob with a plug and the induction hob has been placed,
you can insert the plug in the socket.
If you want to adapt the maximum power, you must do this within 1 minute after inserting the plug in the socket.
Setting the power management function
1. Check that the induction hob is off. Briefly hold down the child lock key,
until [Lo] is shown in the displays.
3 sec
2 x 230V 2L+2N~16A
connecting cableconnection block
A1
PE
connecting cableconnection block
A2
220-240V ~16A
3x 1.5mm
2
220V~
3x 1.5mm
2
230V~
3x 1.5mm
2
240V~
PE
28 • English
