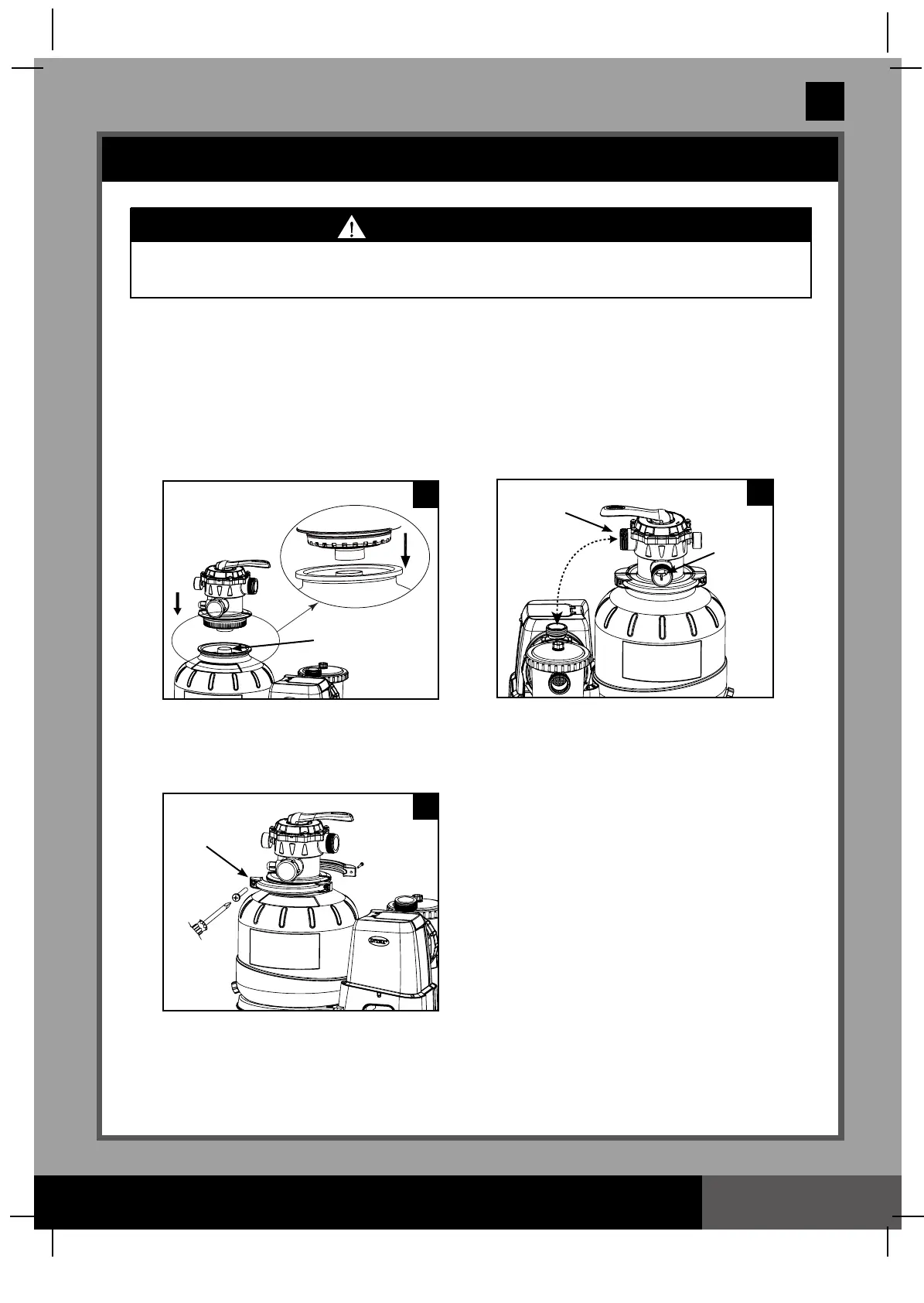

6-way valve installation:
1. Lower the 6-way valve over the tank slowly, and ensure the bypass pipe protruding
underneath the 6-way valve fits securely into the center pipe hub (7) top opening
(see drawing 19).
IMPORTANT: There are three hose connection ports on the 6-way valve, ensure the outlet
connection (from filter to the pool) on the valve is facing towards the pool, and the inlet
connection (from motor to valve) is aligned with the motor outlet (see drawing 20).
SETUP INSTRUCTIONS
(
continued
)
WARNING
Improper tank valve and clamp assembly could cause the valve and
clamp to blow off and cause serious injury, property damage or death.
2. Remove the clamp bolt, and install the clamp around the tank and 6-way valve flanges,
then replace the clamp bolt and use a phillips screwdriver (not included) to tighten it
(see drawing 21).
20
WATER
INLET
WATER
OUTLET
19
7
21
4
