SAVE THESE INSTRUCTIONS
English
(329IO) MODEL ECO5220/5230 & 6220/6230 SALTWATER SYSTEM WITH E.C.O. ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2024
Page 6

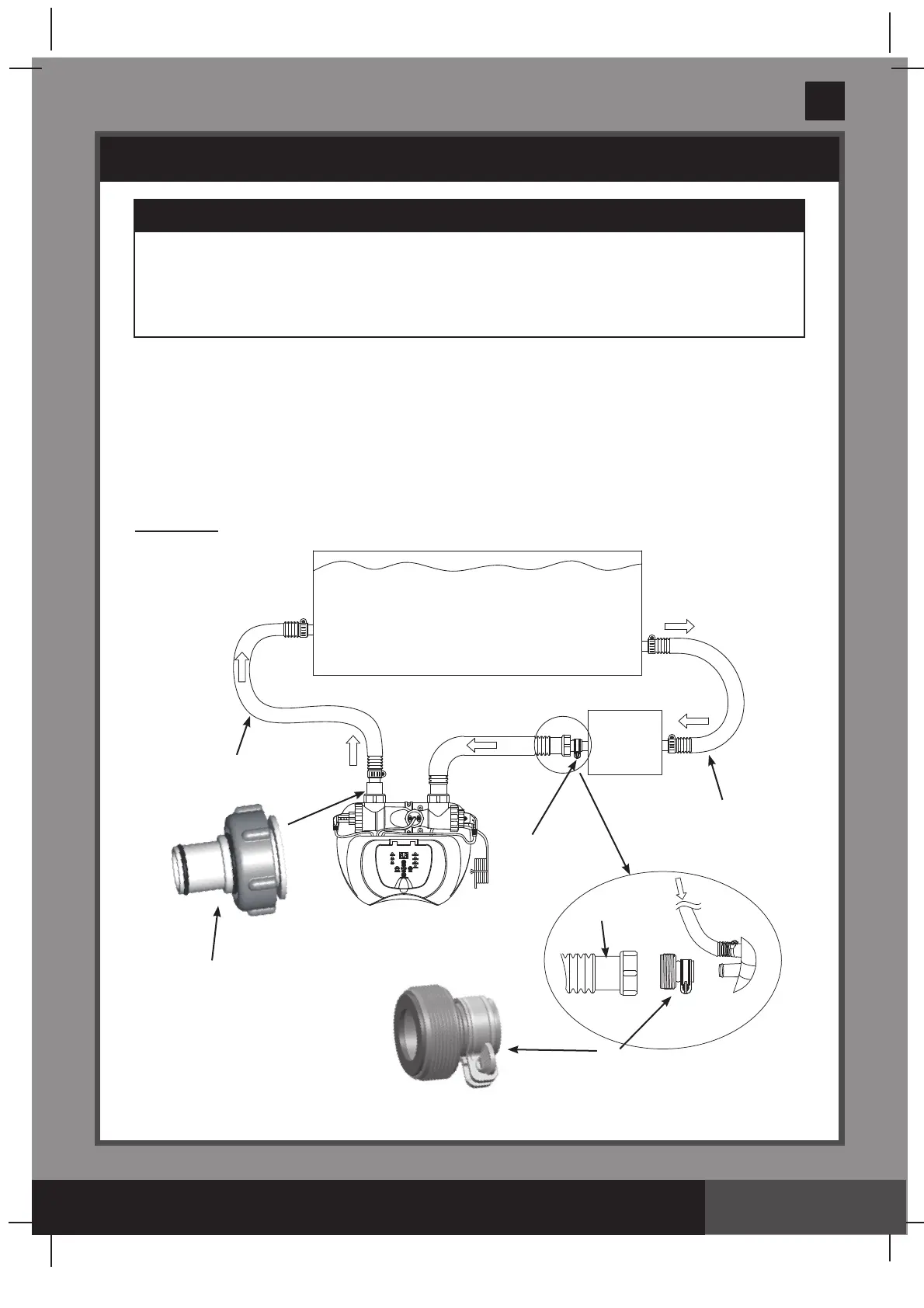

SETUP INSTRUCTIONS
1
. Assemble the above-ground-pool (AGP) and its filter pump according to their installation
instructions.
2
. Take the Saltwater System and its accessories out of the packaging.
3
. Place the Saltwater System in line after the filter pump.
4
. Connect the connector hose
(7)
to the Saltwater System inlet.
Connecting the system to pump and pool with 1-1/4” (32mm) connections/hoses:
The saltwater system features 1-1/2” (38mm) connections. It is accordingly supplied with
adaptors A (1) and B (8) for connecting to the small 1-1/4” (32mm) diameter connections/
hoses. Install as follows:
Drawing #1
IMPORTANT
• The Saltwater System requires a separate filter pump [700~3200 gph (2650~12112 lph)]
to drive the water and function properly.
• The Saltwater System must be installed as the last piece of pool equipment in the
water return line to the pool as displayed in Drawing #1. This location extends the life
of the titanium plates.
WATER TO
POOL
WATER FROM
POOL
ID 1-1/4” (32mm)
HOSE
FILTER
PUMP
SWIMMING POOL
ID 1-1/4” (32mm)
HOSE
8
8
7
1
SALTWATER SYSTEM WITH E.C.O.
(ELECTROCATALYTIC OXIDATION)
