SAVE THESE INSTRUCTIONS
English
(329IO) MODEL ECO5220/5230 & 6220/6230 SALTWATER SYSTEM WITH E.C.O. ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2024
Page 4

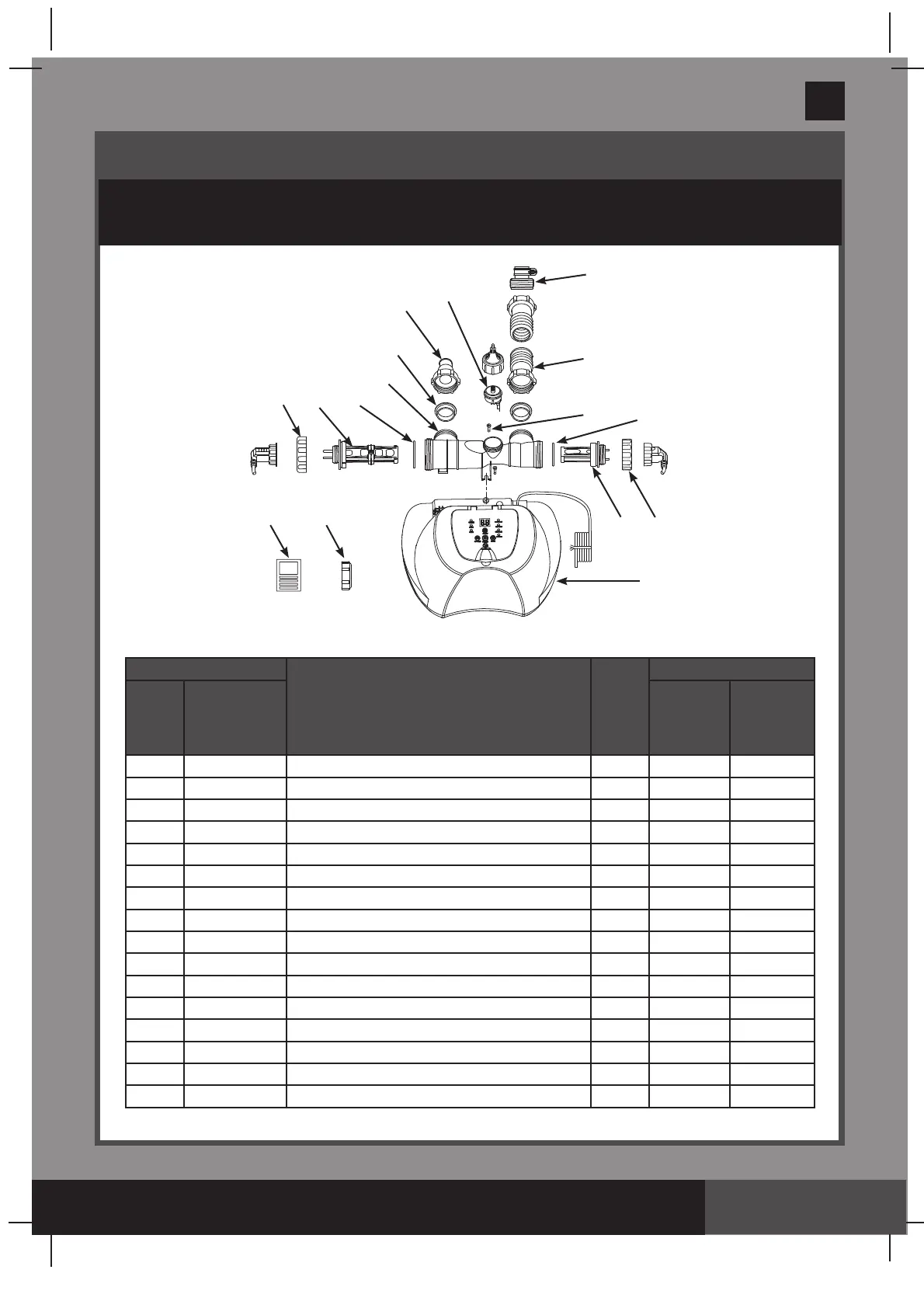

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
When ordering parts, be sure to quote the model number and part numbers.
10 5
12
3
11
1
6
8
7
2
15
16
4
13
9
14
REF. NO.
DESCRIPTION QTY.
SPARE PART NO.
COMMON
PARTS
PARTS FOR
CONNECTION
TO FILTER PUMPS WITH
1-1/4” (32MM) HOSE SIZE
ECO5220/5230 ECO6220/6230
1 ADAPTOR A WITH THREADED COLLAR 1 10849 10849
2 SCREW 2 11519 11519
3 ELECTROLYTIC CELL HOUSING 1 11898 11903
4 SECONDARY ELECTROLYTIC CELL 1 11900 11905
5 PRIMARY ELECTROLYTIC CELL 1 11899 11904
6 FLOW SENSOR 1 11460 11460
7
CONNECTOR HOSE WITH THREADED FITTINGS
1 10720 10720
8
THREADED ADAPTOR B
1 10722 10722
9
CELL COVER
2 11131 11131
10 ELECTROLYTIC CELL NUT 1 11582 11432
11 L-SHAPE O-RING 2 11228 11228
12 TITANIUM ELECTRODE O-RING 1 11585 11515
13 CONTROL STATION 1 12658 12660
14 TEST STRIPS 1 19635 19635
15 TITANIUM ELECTRODE O-RING 1 11585 11585
16 ELECTROLYTIC CELL NUT 1 11582 11582
