(379IO) MODEL LS5220/5230 SALTWATER SYSTEM ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/30/2024
SAVE THESE INSTRUCTIONS
Page 6
379
A
English

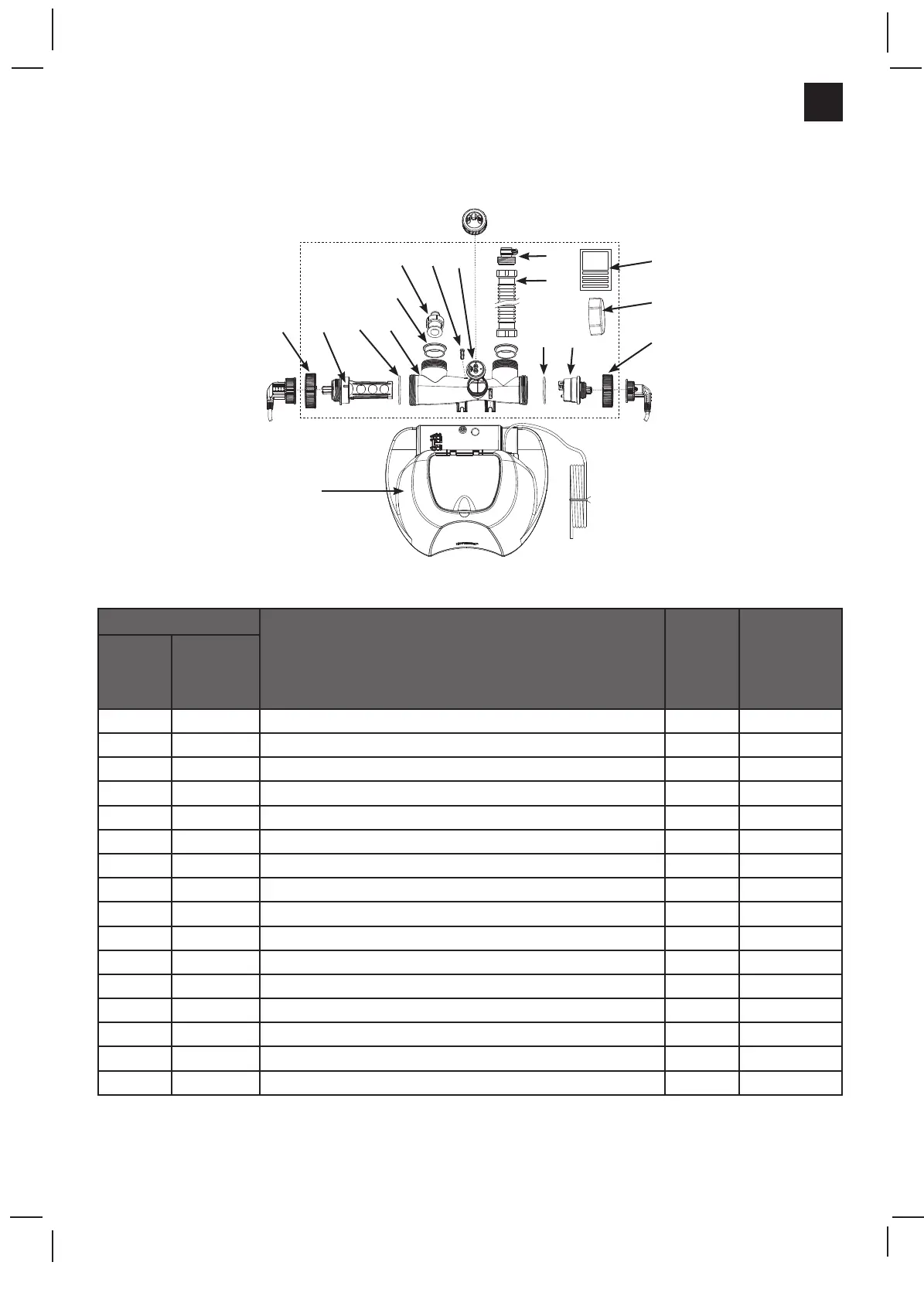

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
When ordering parts, be sure to quote the model number and part numbers.
REF. NO.
DESCRIPTION QTY.
SPARE PART
NO.
COMMON
PARTS
PARTS FOR
CONNECTION TO
FILTER PUMPS
WITH 1-1/4” (32MM)
HOSE SIZE
1 CONTROL STATION 1 13456
2 CHLORINE ELECTRODE NUT 1 13336
3 CHLORINE ELECTRODE 1 12995
4 CHLORINE ELECTRODE O-RING 1 13446
5 CHLORINE ELECTRODE HOUSING 1 12977
6 L-SHAPE O-RING 2 11228
7 ADAPTOR A WITH THREADED COLLAR 1 10849
8 SCREW 2 11519
9 FLOW SENSOR 1 11460
10 THREADED ADAPTOR B 1 10722
11 CONNECTOR HOSE WITH THREADED FITTINGS 1 10720
12 2-IN-1 SENSOR O-RING 1 11585
13 2-IN-1 SENSOR (SALT / TEMPERATURE) 1 13432
14 2-IN-1 SENSOR NUT 1 13433
15 CELL COVER 2 11131
16 TEST STRIPS 1 19635
2 3 4 5
6
7
9
10
11
8
12 13
14
1
15
16
