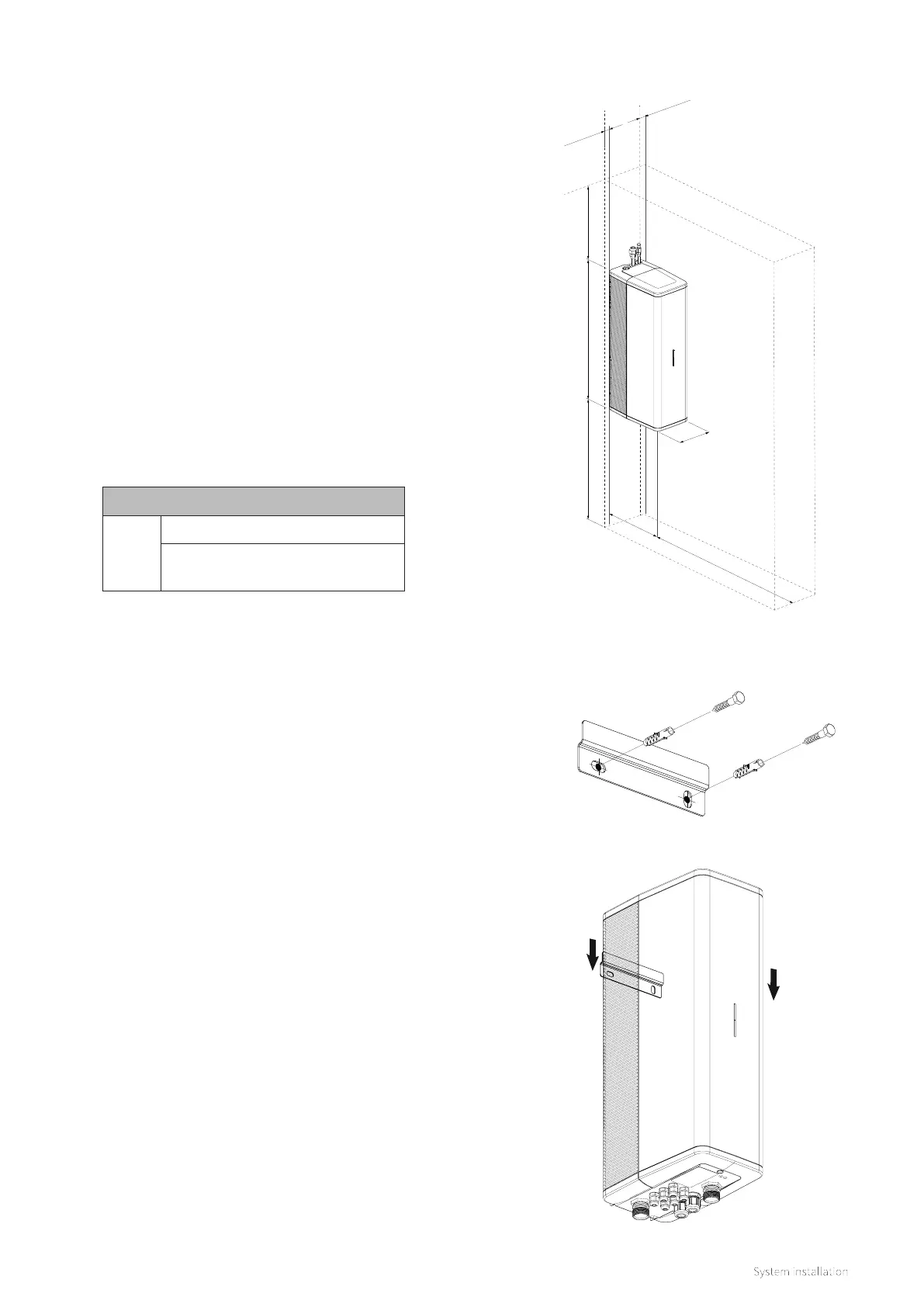

8.3 Installing the indoor unit
min. 400min. 300
min. 50
275
D*
min. 50
163,5
557
The indoor unit must be mounted level on a wall with suicient
load-bearing capacity to support the appliance when it is filled
with water.
If the wall construction is not solid i.e. brick or block, the sound
of the unit may resonate.
A switched fused spur must be located within 2 metres of the
device.
The indoor unit should be placed near the boiler. Take this into
account when planning the installation and pipework.
To prevent the indoor unit from freezing, it must be installed in
a frost-free environment this would include any lo spaces etc.
Ensure that the indoor unit is easily accessible by maintaining
the adjacent minimum clearances.
8.3.2 Mounting the indoor unit
1. Secure the mounting bracket to the wall horizontally using
appropriate fastening equipment (not included). Please
ensure it is level.
2. Li the indoor unit over the mounting bracket and slide it
down, ensuring it is correctly located.
1. Mount the wall bracket
2. Installing the indoor unit
8.3.1 Installation location
Further dimensions
D* 600 mm
*5mm clearance from a closing door
600mm for servicing clearances
