7 OUTDOOR UNIT
The outdoor unit is designed for installation outside of the
property and must be connected to and used in conjunction
with the indoor unit detailed in §6.0
The outdoor unit complies with electrical protection class IPX4.
The outdoor unit extracts energy from the external air and
transfers it to the indoor unit.
The compressor speed varies to ensure that the correct amount of
energy is delivered. The fan is also speed controlled, modulating
its speed to meet the heating demand. This ensures the energy
consumption is as low as possible for maximum eiciency.
7.1 Function
7.2 Main components outdoor unit

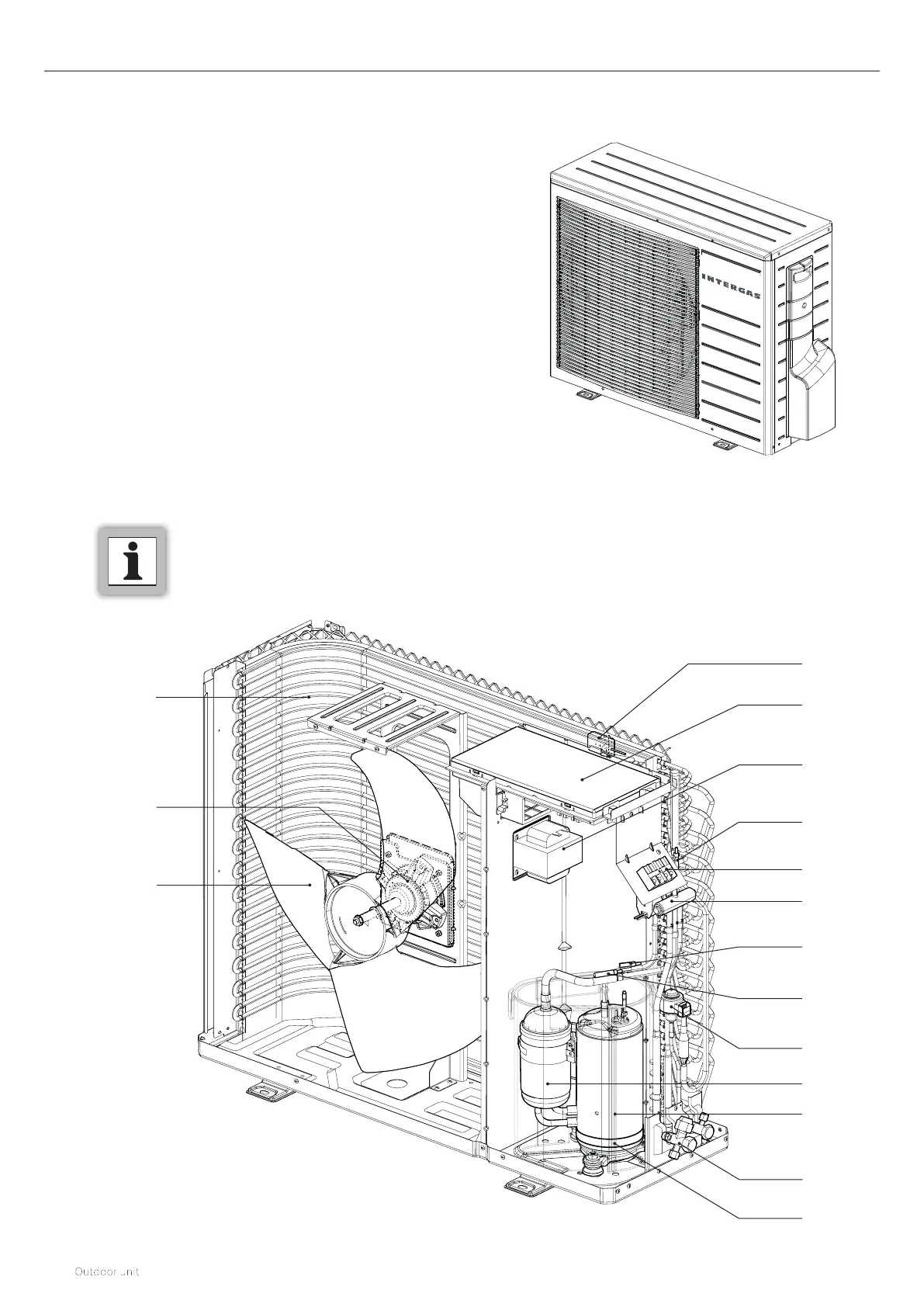

► The view below shows the interior of the
outdoor unit without the casing.
Fan motor
Fan
Outdoor temperature
sensor
Control unit
Coil (evaporator)
temperature sensor
Terminal block
4-way valve
Suppression coil
Exhaust (compressed
gas) temperature sensor
Suction (suction gas)
temperature sensor
Electronic expansion
valve
Accumulator
Compressor
Refrigerant service
point
Crankcase heater
Evaporator
