6 INDOOR UNIT

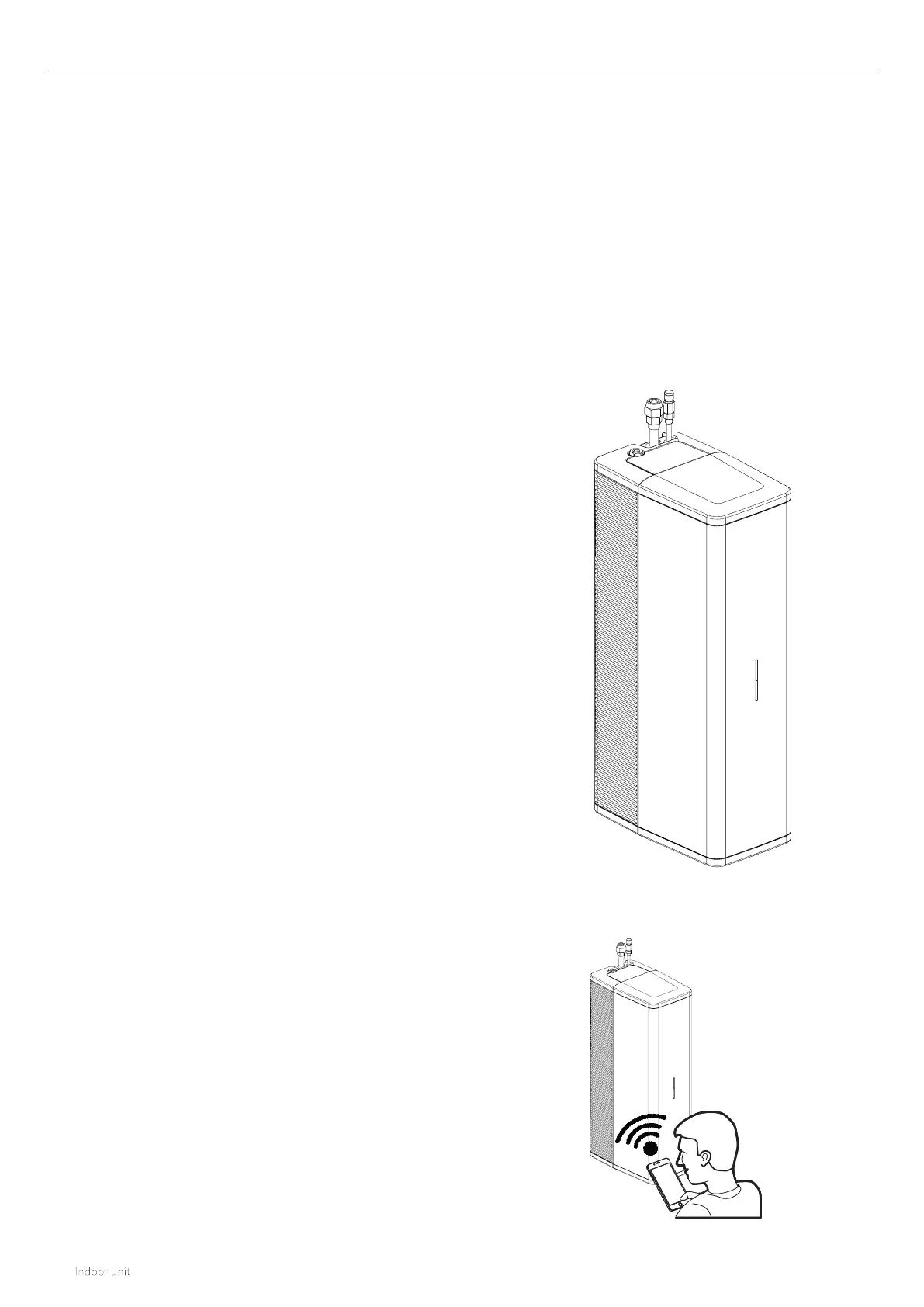

The indoor unit is the distribution and control station for the
entire hybrid heat pump system. This means that all of the
controls in the system run through this device. The indoor unit is
equipped with an electronically modulating circulation pump, a
plate heat exchanger and the control unit.
In conjunction with the outdoor unit (and if necessary the
combination boiler, the indoor unit ensures that the desired
heating water temperature can be achieved.
During extremely low outdoor temperatures if the indoor unit
cannot achieve suicient output to satisfy the heating demand,
the combination boiler will receive a signal from the indoor unit
and start generating additional heat to reach the desired water
temperature.
The indoor unit is designed for installation within the property and
must not be subjected to external elements, it must be connected
to an ErP classified combination boiler, also situated internally.
The indoor unit is the heart of the hybrid heat pump system. It acts
as a distribution station, connecting and controlling the outdoor
unit and the combination boiler during a heating demand.
The indoor unit complies with electrical protection class IPX1.
6.1 Function
6.2 Operation
The indoor unit is equipped with a multicolour LED strip and
a control button. The LED lighting indicates the status of the
system using dierent colours; see §10.1.
One of the control button functions is to establish a Wi-Fi
connection, to link a smartphone or tablet to the device. This
allows you to track the behaviour of the hybrid heat pump
system. This control screen also provides access to various
functions, malfunction information and user history; see §10.2
and §10.3.
