38

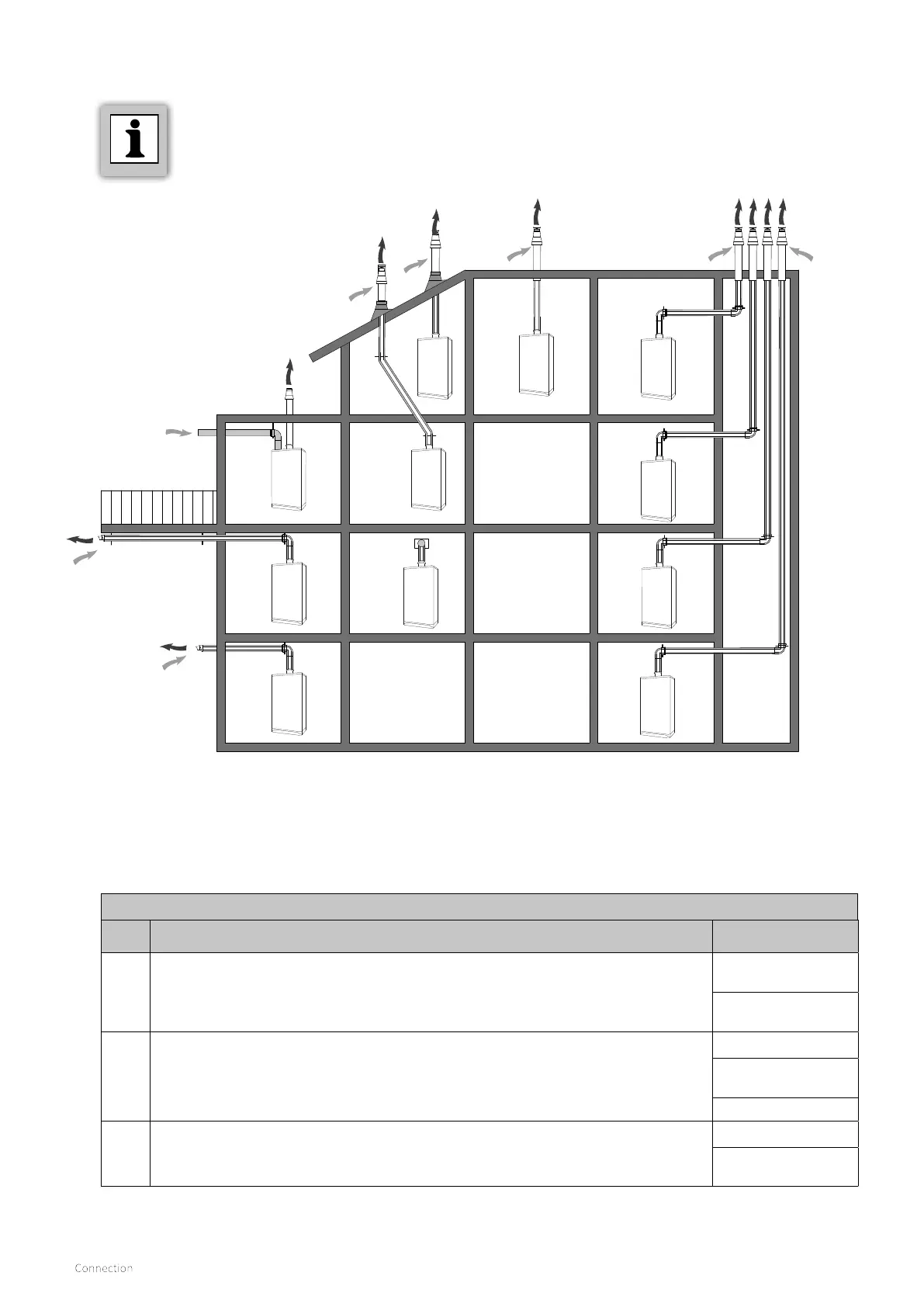

7.8 General layout of the flue
C33
C53
C13
C13
C33
C33
C13
C33
C33
C33
C33
The following drawing shows possible situations schematically.
COMMENT
► The following schematic drawings serve
as examples and the details may dier
from the actual situation.
Note for flue systems
Cat. Note according to CE Materials
C13 The terminal is located in the façade; the inlet for the air supply duct is located in the
same pressure area as the terminal. Example: combined façade terminal
Terminal
Other components
C33 The terminal is located above the roof; the inlet for the air supply duct is located in the
same pressure area as the terminal of the flue piping.
Terminal
Terminal at the
prefab chimney
Other components
C53 Closed unit, connected to separate air supply duct and flue channels, terminated in
various pressure zones. See the installation manual for the possibilities.
Intake grille
Other components
and exhaust cap
