7.5.4 Connecting outdoor sensor
The boiler has the facility to operate with an Intergas outdoor
weather sensor, part number 203207. The outdoor sensor must
be used in combination with an on/o or OpenTherm room
thermostat.
In principle, any on/o or OpenTherm room thermostat can
be combined with an Intergas outdoor weather sensor.
With an on/o thermostat, the boiler will adjust the flow
temperature according to the room target temperature.
With an OpenTherm thermostat, the flow temperature is
controlled via the actual internal & external temperatures, this
modulates the burner using load control to give a more precise
output from the boiler saving energy.
► Connect the outdoor sensor to Connector X13 terminals 3/4
(also see §12.1).
For the heating line graph, see §9.7 Outside weather
compensation.
34
X13 X12
3
4
► To prevent freezing of the condensate pipework and the
boiler, it must be installed in a frost-free area..
► The boiler is equipped with a frost protection system.
Should the temperature of the water within the heat
exchanger drop below 5 °C, the pump will run and if
required it will ignite the burner until the temperature of the
water is up to approximately 15 °C.
Comment
With the on/o TPI room thermostat fitted as per §7.5.2 you
must locate the frost stat in an area that will be subject to the
coldest conditions, ideally a radiator fitted within the
frost-sensitive area must be open on both lock shield & wheel
head valves.
► The ideal place to site a frost thermostat is the coldest area
within the property (for example, a garage or roof space).
► Connect the frost thermostat in parallel with an on/o
room thermostat or RF thermostat onto Connector X13 1/2
(also see §12.1).
7.5.5 Frost protection
If the (external) frost thermostat is used for the installation
and it is connected to the boiler as shown, it will not be active
when the boiler is switched o or the power removed.
12
X13 X12
1212
On
O
12
X13 X12
12
12
12

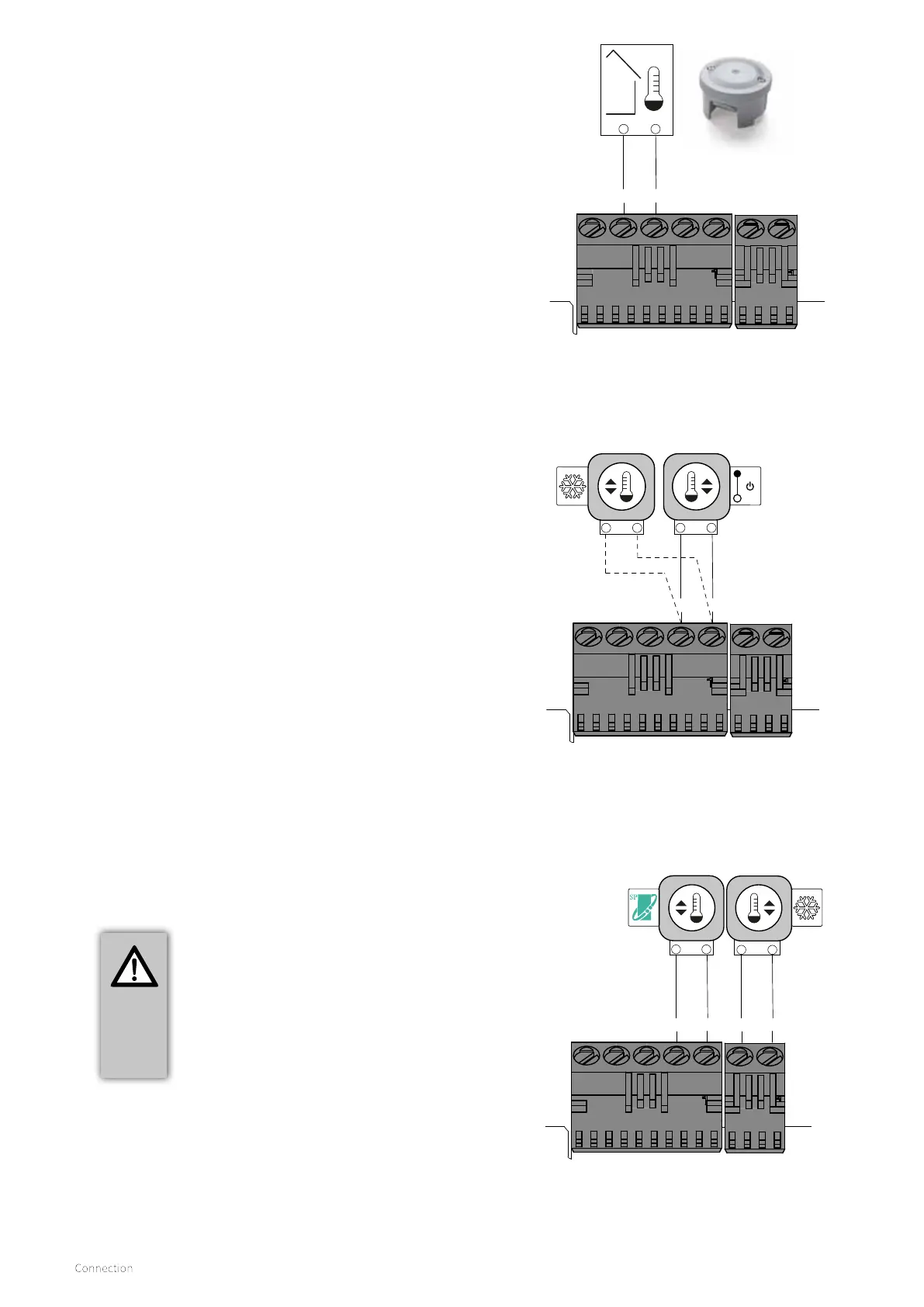

Connecting outdoor sensor
Frost thermostat and on/o thermostat
parallel connection
Frost thermostat and OpenTherm thermostat
connection
Outdoor weather sensor
part number. 203207
CAREFUL
► With the use of an OpenTherm
thermostat, a frost thermostat must not
be connected in parallel on Connector
X13. In this situation, connect the
OpenTherm thermostat to Connector X13
and the frost thermostat to Connector
X12.
