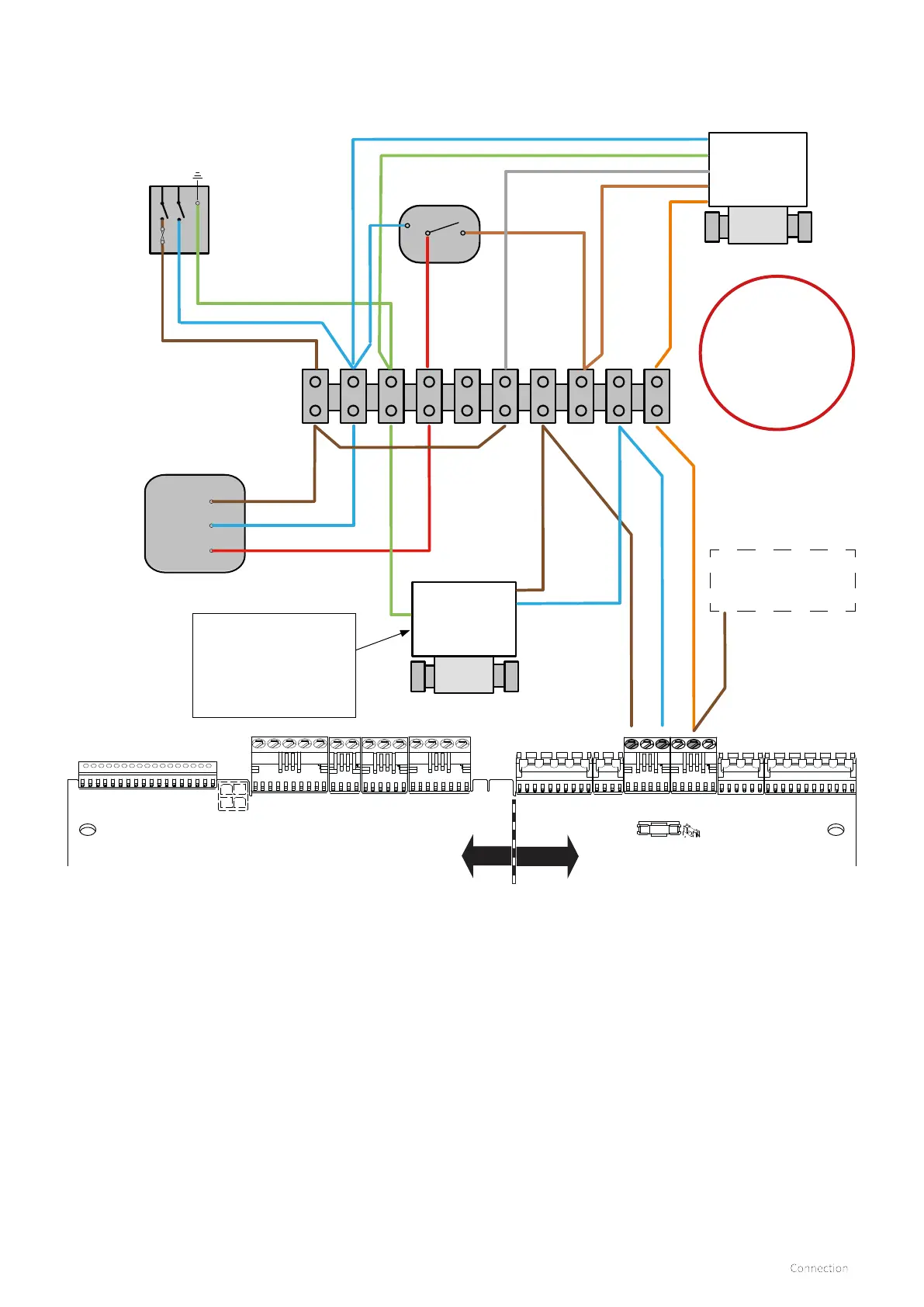

Underfloor option wiring diagram
X15
(24V=)
X14
X13
(24V =)
X12
(24V =)
X11
(24V =)
N/A
X10
(24V =)
N/A
X8
(230V ~)
X5
(230V ~)
X4
(230V ~)
X3
(230V ~)
X2
(230V ~)
X1
(230V ~)
F1 (3,15 AT)
FUSE
123
24V=
230V
Zone Valve
Heating
V4043H
(normally closed)
230Vac 3amp
Switched
Fused Spur
Room thermostat
Zone Valve
FLOW TO
UNDER FLOOR
V4043B
(normally open)
Parameter P081
must adjusted to
value '1'
Time control to
Heating circuit
L
N
HTG on
OpenTherm
Heating Control
EARTH
SWITCHED LIVE
GREY (P/LIVE)
M/V SWITCHED LIVE
NEUTRAL
EARTH
M/V SWITCHED LIVE
Wiring centre
NEUTRAL
S/L FROM BOILER
SWITCHED LIVE
Switched Live from
underfloor heating
controls to X3 Pin 2
L N
2
1
3
1 2
3 4 5 6 7 8 9 10
Orange & Grey
wires from underfloor
Zone are not required.
Isolate and make safe.
(If applicable cables not always
supplied with this valve model)
