Intergas Heating Ltd 13

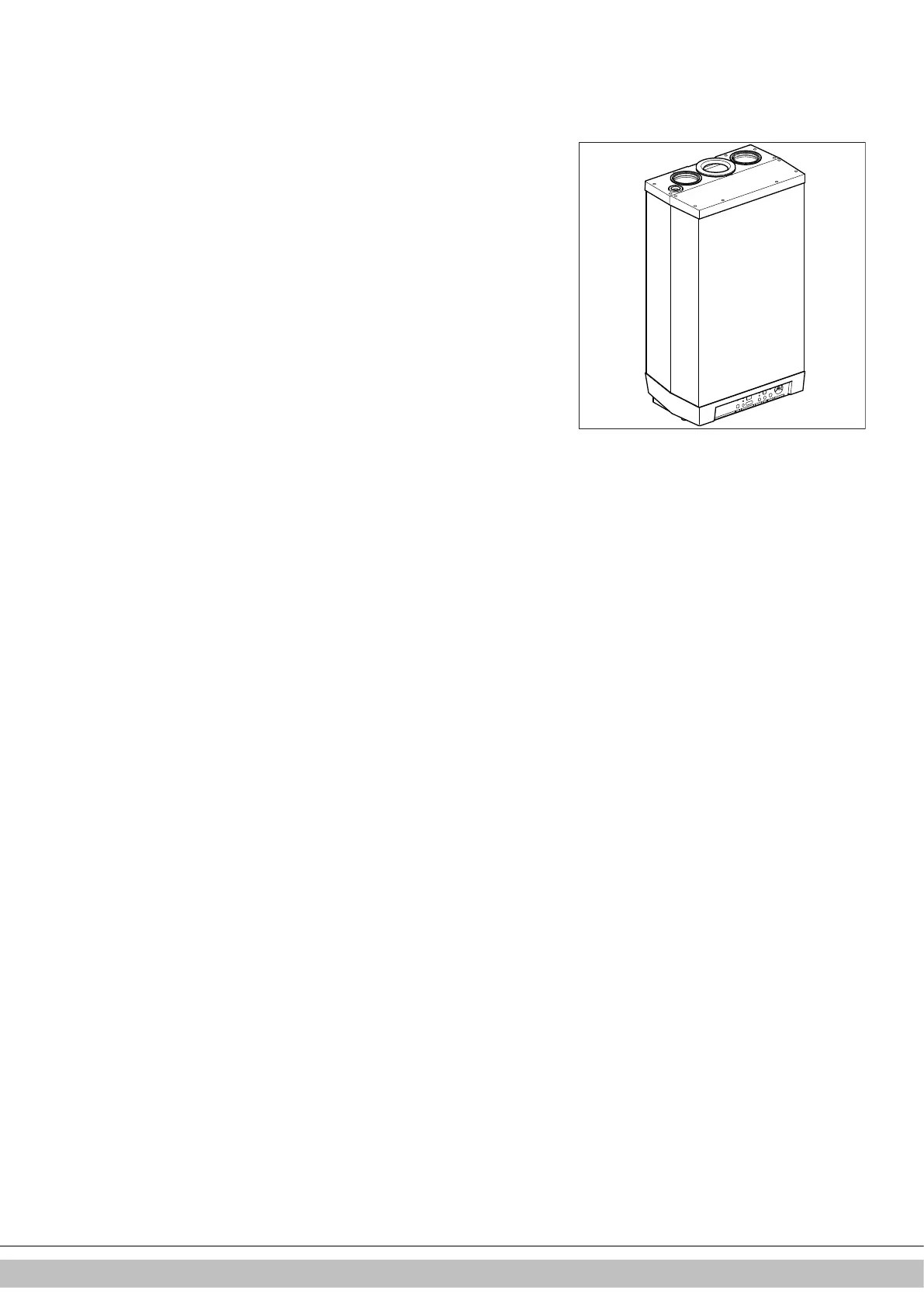

4.1 General Boiler Information
The Intergas Rapid wall mounted, gas fired boiler is a closed appliance. The
appliance is intended to deliver heat to the water in a CH system and the DHW
installation.
The air supply and combustion gas flue connection is as standard prepared for a
concentric 60/100 horizontal flue system.
Depending on preference, the appliance may be connected to a mounting
bracket, a rear piping frame with top connection. These are supplied separately.
The Intergas Rapid wall mounted gas fired boilers carry the CE label and
electrical protection class P44
The Intergas Rapid 25 is suitable for supplying at least 10.5 litres of water
per minute at 35°C temperature arise. The Intergas Rapid 32 is suitable for
supplying at least 13 litres of water per minute.
It is possible to use the appliance solely for hot water or solely for heating. The
unused system does not have to be connected. (See section 9.3)
The appliance is supplied as standard for natural gas (G20) by the manufacturer.
For usage of LPG gas (G31) the boiler can be converted by changing the gas
restrictor. A gas conversion kit can be ordered at Intergas Heating Ltd.
Note
Modification of the boiler can only be done by a qualified competent person.
4.2 Boiler controller
An electronic control unit, consisting of a boiler controller and separate ignition
module which is placed on the gas valve, provides direct burner ignition and flame
supervision along with continuous modulation of the burner’s gas supply.
4.3 Parameter list
All boiler adjustments are accessible through the parameter list in the software.
4.4 Heat transfer
Heat transfer to the boiler’s heating and DHW circuit is obtained via a primary, gas
to water heat exchanger within a hermetically sealed combustion chamber. A
modulated speed fan blows the gas/air mixture into the combustion chamber and
expels the products of combustion to outside air via an associated flue system.
4.5 Central heating system
An integral pump located in the boilers hydraulic circuit circulates water through
the heat exchanger to the central heating circuit. During DHW demand the pump
stops functioning, so all the heat is directly transferred to the integrated DHW
circuit and no transfer losses occur. In the event of reduced or interrupted water
circulation in the central heating circuit, an automatic system by-pass should be
fitted as far away from the boiler as possible.
Note
It is no longer permissible to utilize a non-thermostatic controlled radiator as a by-
pass.
4.6 Room temperature control
Room temperature can be controlled by the use of an external room thermostat
and thermostatic radiator valves.
Note
Connection of the room thermostat is dependant on the operating voltage of the
thermostat.
