Intergas Heating Ltd 25
7.1.1 Expansion vessel
The appliance is fitted with a expansion vessel adequate for a system with a water
volume not exceeding 100 litres, typically 8 radiators. For larger volume systems,
an additional expansion vessel must be fitted. Contact Intergas for advice in these
cases.
7.1.2 Thermostatic radiator valves
If all radiators are equipped with thermostatic or regular radiator valves, a bypass
must be fitted in order to guarantee minimum water circulation. The bypass must
be at a distance of at least 6 m from the appliance in order to prevent overheating
of the appliance.
7.1.3 Underfloor heating
For a good operation of the domestic hot water supply, there must be no
undesired circulation through the appliance caused by a second pump of the CH
circuit.
Connect underfloor heating with an electric shut-off valve (two-way valve) to
prevent circulation through the appliance when there is no demand for central
heating.

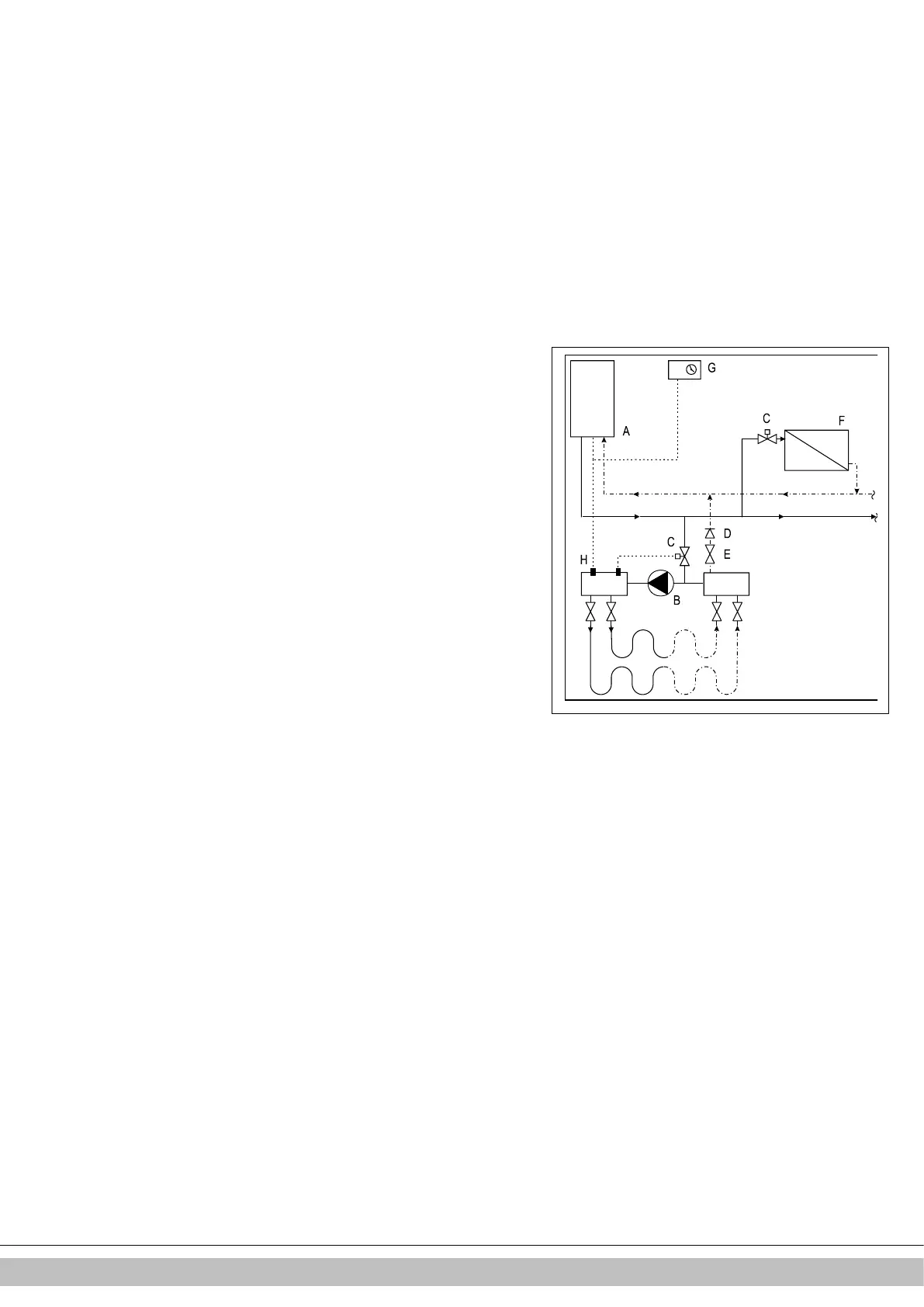

A. Boiler
B. Pump
C. Thermostatic control valve
D. Spring-operated non-return valve
E. Electrical shut-off valve 230 V ~
F. Radiators
G. Room/clock thermostat
H. Maximum thermostat
7.1.4 Weather compensation and heating DHW cylinder on hot water
priority or W system
When connecting a Rapid to an indirectly heated DHW storage cylinder the
folowing parts can be ordered:
• DHW storage cylinder sensor (art. nr. 065.117)
• Diverter valve 230V (art. nr. 092.647)
Connect the DHW storage cylinder and diverter valve accourding to the diagram.
Remove the loop in 9 – 10 to connector X4. Connect the diverter valve to
connector X2 and connect the DHW storage cylinder sensor or thermostat to
connector X4 according to the electrical diagram (See chapter 13).
Electrical diagram indirectly heated DHW storage cylinder
C. Boiler
D. DHW storage cylinder
E. Radiator
F. Expansion vessel
G. Pressure relief valve 3 Bar
H. Diverter valve
I. DHW storage cylinder sensor or thermostat
