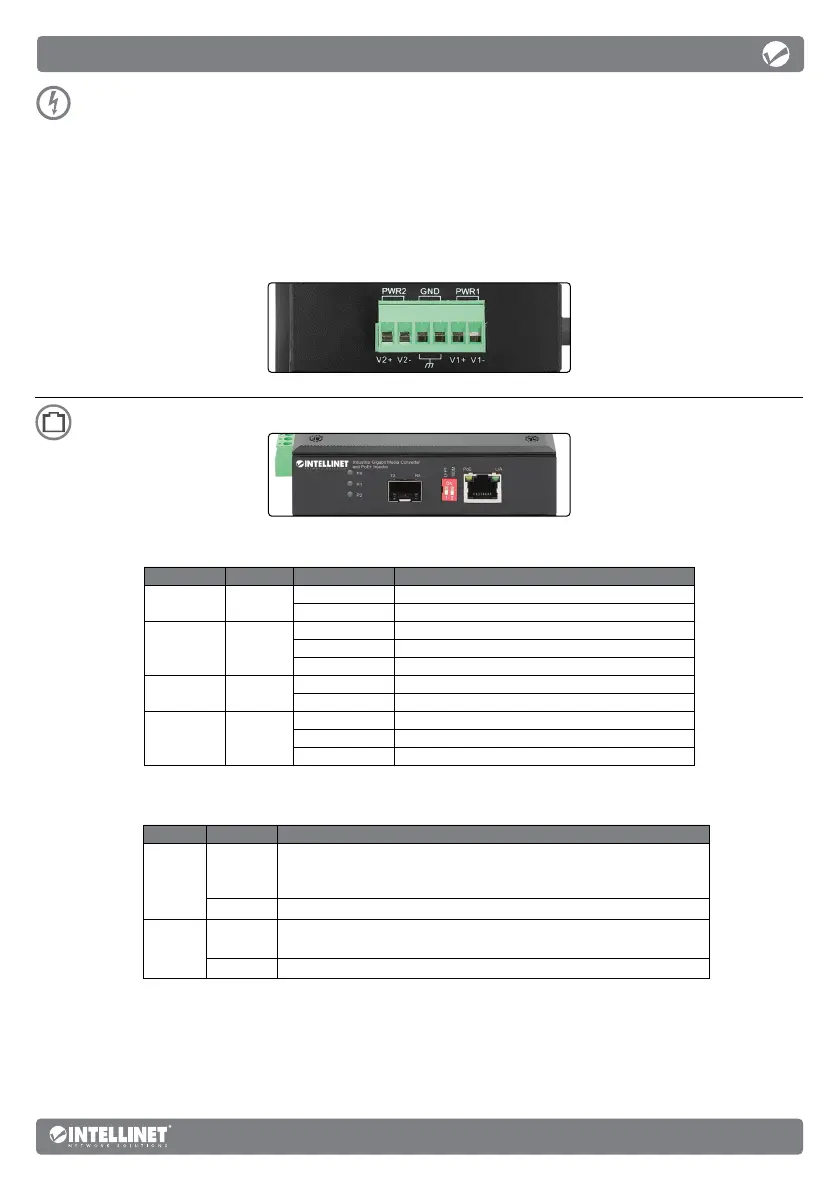

Power
Terminal Block Installation
NOTE: Ensure all power is off/disconnected before beginning!
1 Loosen appropriate screws. Insert bare power-supply wires into appropriate terminals (positive wire into
positive [V1+] terminal, negative wire into negative [V1-] terminal, ground wire to ground [GND] terminal).
2 Tighten appropriate screws to secure wires. Repeat these steps for
a second power supply if desired (V2+, V2-, GND).
3 Install block into the device.
Front panel
LED
LED Color Status Description
P1/P2 Green
On Power channel is powered.
Off Power channel is not powered.
FX Green
On Fiber port is connected.
Off Fiber port is not connected.
Flashing Sending or receiving data.
PoE Yellow
On PoE is being supplied to a connected PD.
Off No power is being supplied to a connected PD.
L/A Green
On Valid port connection.
Off Connection not established.
Flashing Sending or receiving data.
DIP Switch — LFPT/100M
Switch Position Description
LFPT
ON
Link Fault Pass Through enabled: Devices on a link must
acknowledge that they are online before data can be transmitted.
When one of the devices doesn’t respond, data cannot be sent.
OFF Link Fault Pass Through disabled
100M
ON
Copper interface management —
Restricts data transfer rate to 100Mbps
OFF No data transfer rate restriction
