Go to https://install.instar.com
8-EN

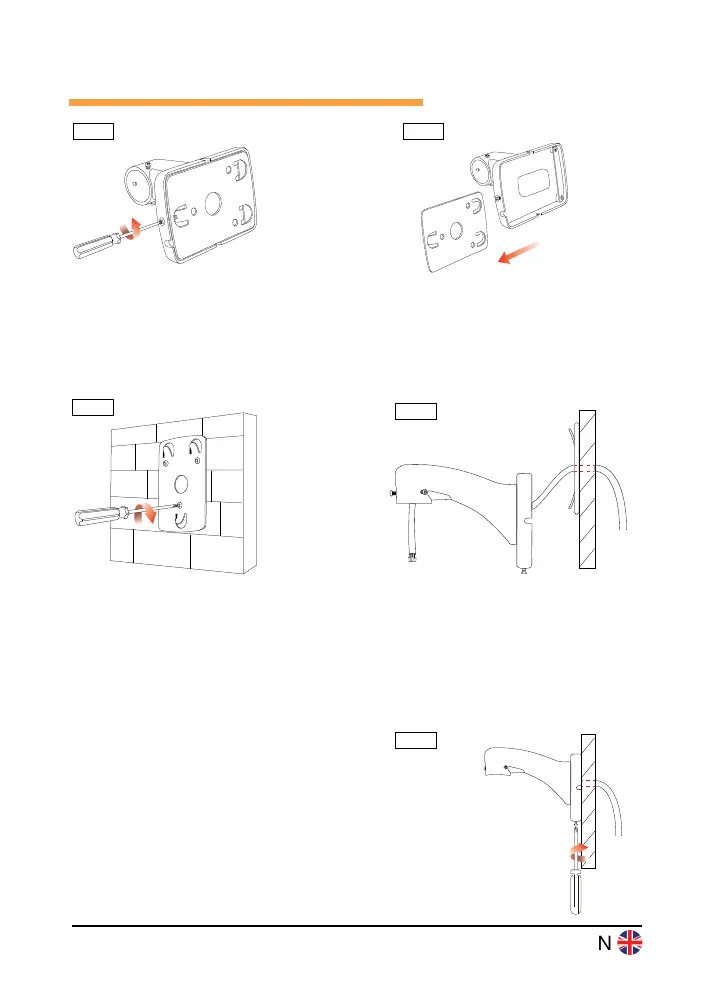

5.2. Wall Mount Installation
Step 1: Please loosen the bottom
screw of the wall mount bracket as
shown above in Fig.1.
Step 2: Slide the metal plate to-
wards the bottom of the wall
mount bracket and take out the
metal plate.
Step 4: Put the extension cable
through the wall, and then cross
through the wall-mount bracket as
shown in the Fig.4.
Step 3: Use the included screws
and dowels and mount the metal
plate on the wall.
Step 5: Attach the wall-mount to
the metal plate on the wall. Once
attached, please tighten the screw
at the bottom of the wall-mount.
Fig. 1 Fig. 2
Fig. 3
Fig. 4
Fig. 5
