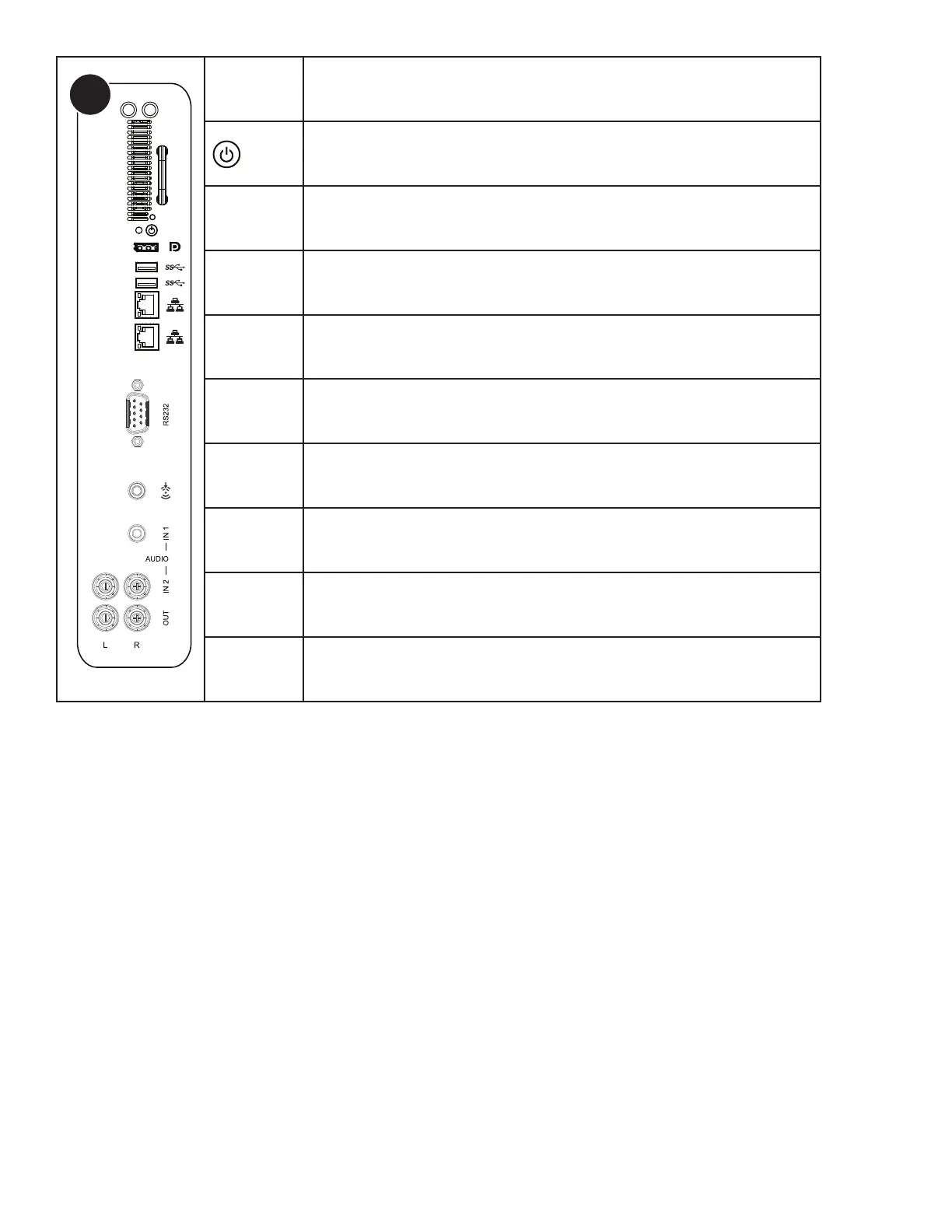

Page 13INF7023 Series Hardware Guide

Antennas

LED

ANTENNAS

Connect the antennas to these jacks in order to receive and transmit wireless

data.

POWER

Press to turn the PC on and o.

DISPLAYPORT

OUT

Connect a DisplayPort cable from the embedded computer to another display.

USB-A

Connect a wireless mouse, USB thumb drive or other USB device one of these

USB Type A connectors. Both USB 2.0 and 3.0 devices can be used.

RJ45 Connect to an ethernet network (10/100/1000 Mbps).

RS232 Connect to an RS232 control device for remote control applications.

PC AUDIO

LINE IN

Connect a line in audio source for the PC module.

AUDIO IN1

Connect a 3.5mm audio cable to an external device (e.g., iPod player) for the VGA

and component inputs.

AUDIO IN2

Connect an RCA L/R audio cable to an external device for the VGA and

component inputs.

AUDIO OUT Connect an RCA L/R audio cable to external stereo speakers.
