INF5532AG Hardware Guide
CONNECTING TO OTHER DEVICES

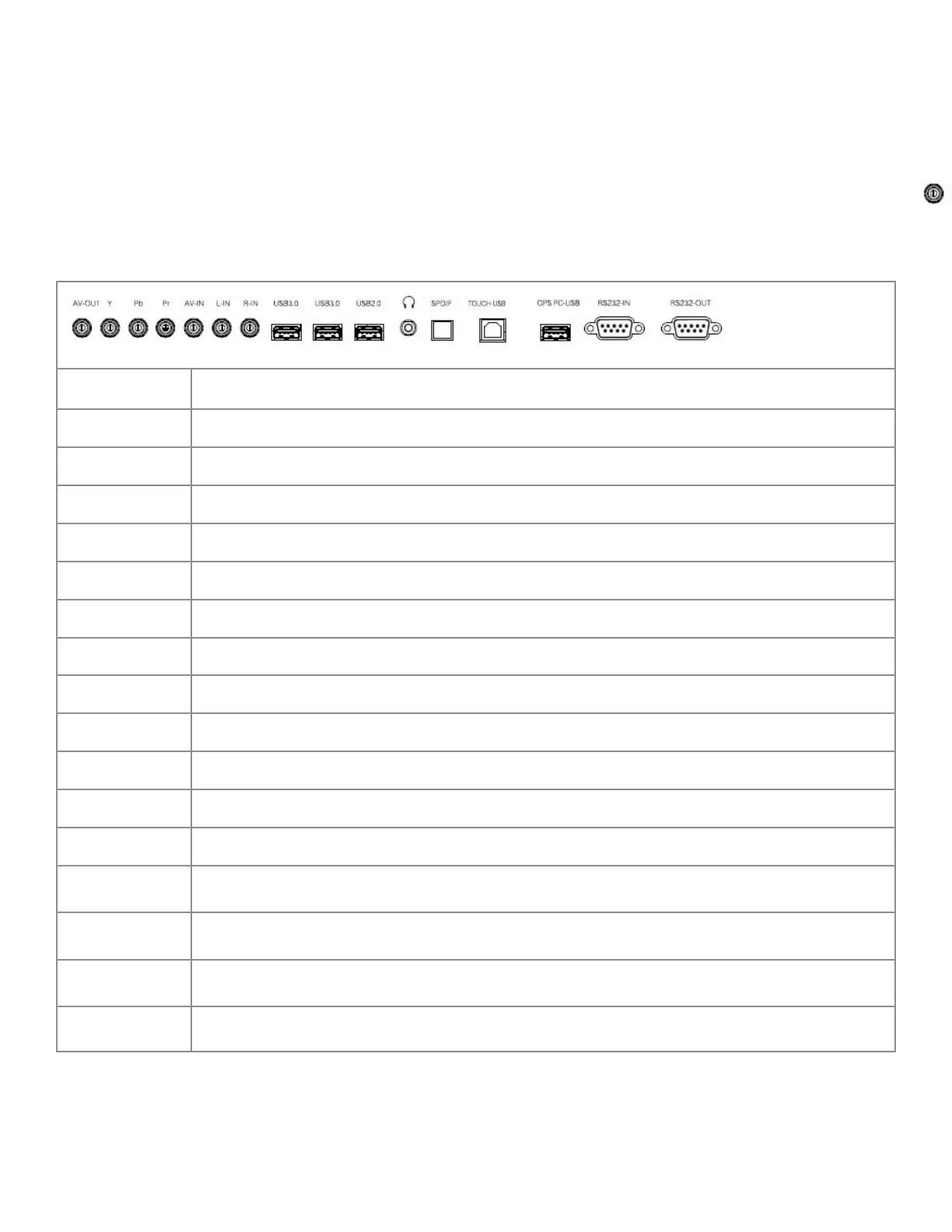

Connection ports are located on the side in the back, and under the display which can be connected to a full range of digital input
devices, and output devices including: accessories, source devices, PCs, tablets, daisy-chain displays, etc.
Side Panel Ports
The side panel ports are located on the left side of the back of the display. This table shows how to connect them.
Port Connection Instructions
RS232 IN Connect to RS232 control device for remote control applications.
RS232 OUT Connect to RS232 control device for remote control applications.
OPS PC USB Connect a USB 2.0 device to the OPS module.
Touch USB Connect a A-B cable between this type B port and your computer to get touch control.
SPDIF Connect a SPDIF cable to Output audio.
Headset Connect a 3.5 mm headset to output audio. This will mute the internal speakers.
USB 2.0 Connect a USB 2.0 device to the internal Android PC.
USB 3.0 Connect a USB 2.0/3.0 device to the internal Android PC.
USB 3.0 Connect a USB 2.0/3.0 device to the internal Android PC.
R-IN Connect an RCA L/R audio cable to an external device, provides audio in for the AV- IN source.
L-IN Connect an RCA L/R audio cable to an external device, provides audio in for the AV- IN source.
AV-IN Connect a composite video cable from the display to an external device (such as VCR or DVD player).
Pr
Connect Red component RCA video cable from the display to an external device
(such as a DVD player, HD device, or Laser Disc player) Pr signal.
Pb
Connect Blue component RCA video cable from the display to an external device
(such as a DVD player, HD device, or Laser Disc player) Pb signal.
Y
Connect Red component RCA video cable from the display to an external device
(such as a DVD player, HD device, or Laser Disc player) Y signal.
AV-Out Connect a composite video cable to display the Output from AV-IN.
AV-OUT Y Pb Pr AV-IN L-IN R-IN USB3.0 USB3.0 USB2.0
SPDIF TOUCH-USB1 TOUCH-USB2 TOUCH-USB3 TOUCH-USB4 OPS PC-USB RS232-IN RS232-OUT
