Wire connected to positive
(+12V) terminal
Wire connected to
negative (-) terminal
Color produced
Black
Red Red
Green Green
Blue Blue
Red + Green Yellow
Red + Blue Purple
Blue + Green Aquamarine
Red + Blue + Green White
APPLYING FOAM SEAL
To help seal your installation against water, and to provide an airtight acoustic seal, apply the self-adhesive foam seal to the
speaker frame.
MOUNTING THE SPEAKER
Use the included screws to mount the speaker to the location. Use the included speed clips if necessary to provide a secure
mount.
NOTE: Use caution when cutting and using screws with fiberglass to prevent scratches and cracks.
Kappa 6 and Kappa 8 Kappa 10

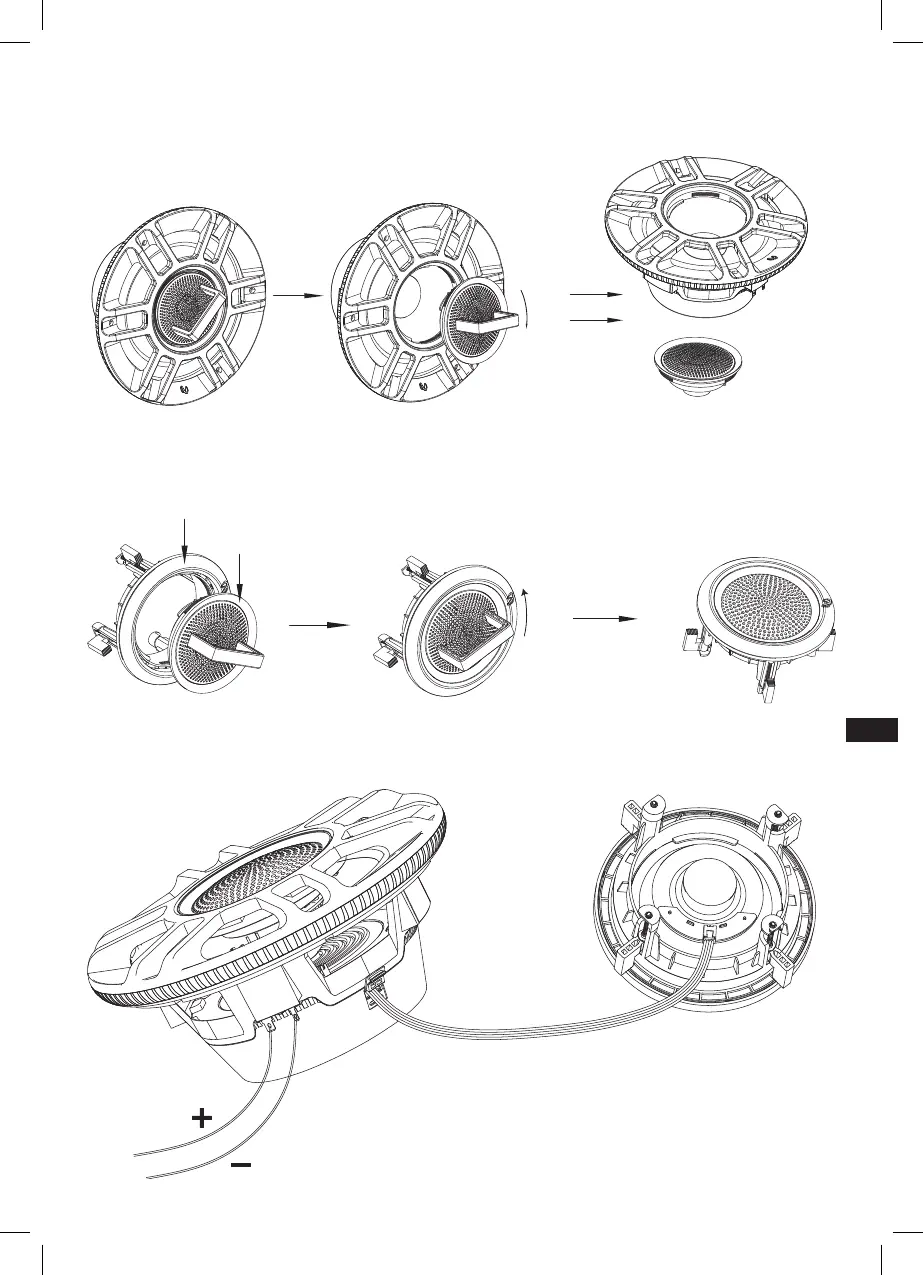

REMOVING THE TWEETER FOR SEPARATE MOUNTING (KAPPA 8 ONLY)
Use the included 2-pin tool to remove the tweeter from the woofer housing. Place the pins of the tool in the holes of the
tweeter grille and rotate 45 degrees clockwise to loosen and remove.
FLUSH-MOUNTING THE TWEETER
Place the tweeter in the mounting bracket and use the tool to secure by turning 45 degrees counter-clockwise.
To transmit audio signal to the tweeter, make sure the woofer and tweeter are connected with the included cable.
C
D
45°
A
D
45 °
EN
