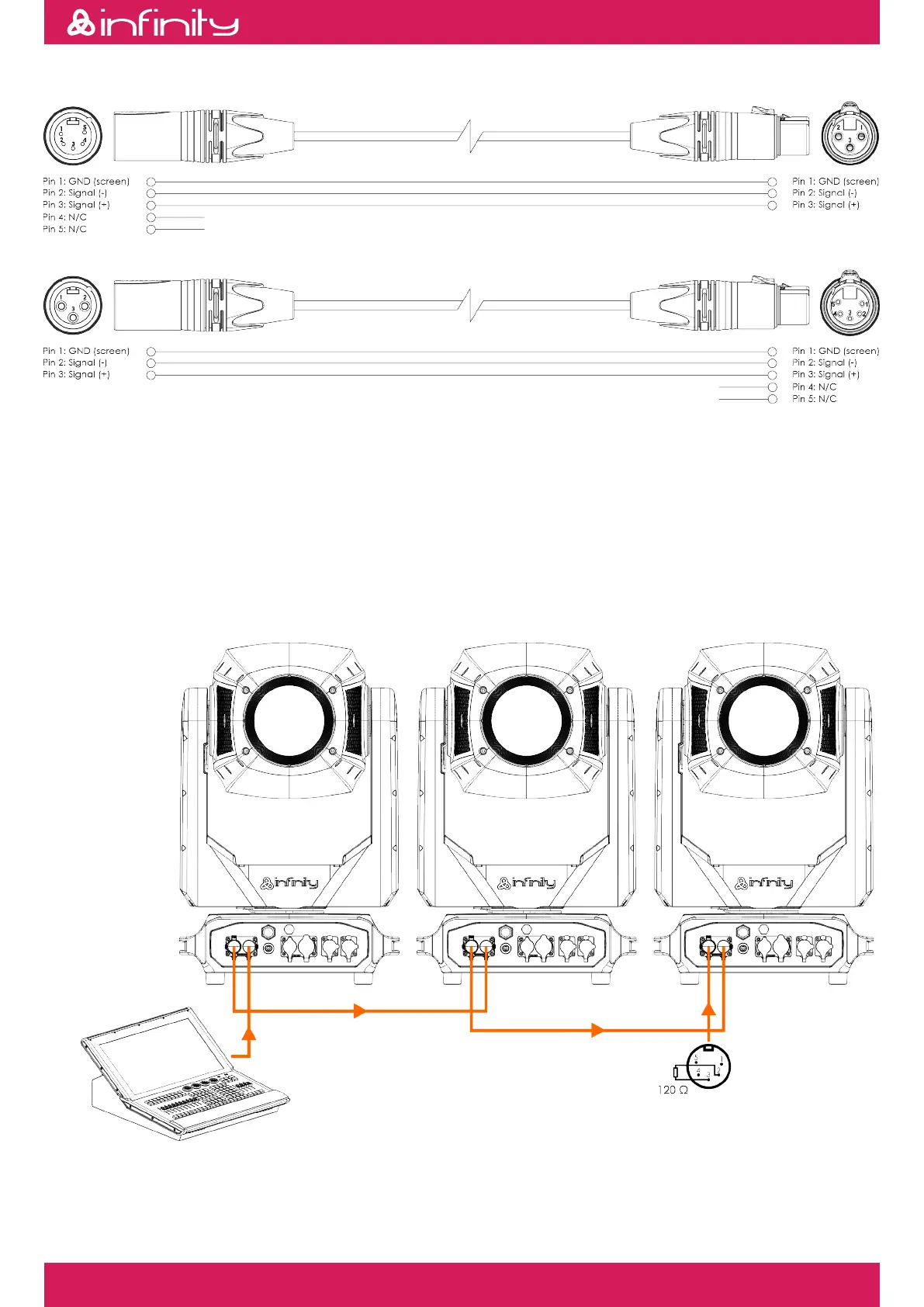

Figure 14
5.3.3. DMX Linking
To connect multiple devices on one DMX data link, follow the steps below:
01) Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN01)
connector of the 1
st
device.
02) Connect the DMX OUT connector of the 1
st
device to the DMX IN connector of the 2
nd
device with a 5-pin02)
DMX cable.
03) Repeat step 2 to connect all devices in a daisy-chain.03)
04) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data link.04)
Figure 15
21
c
