Installation
English

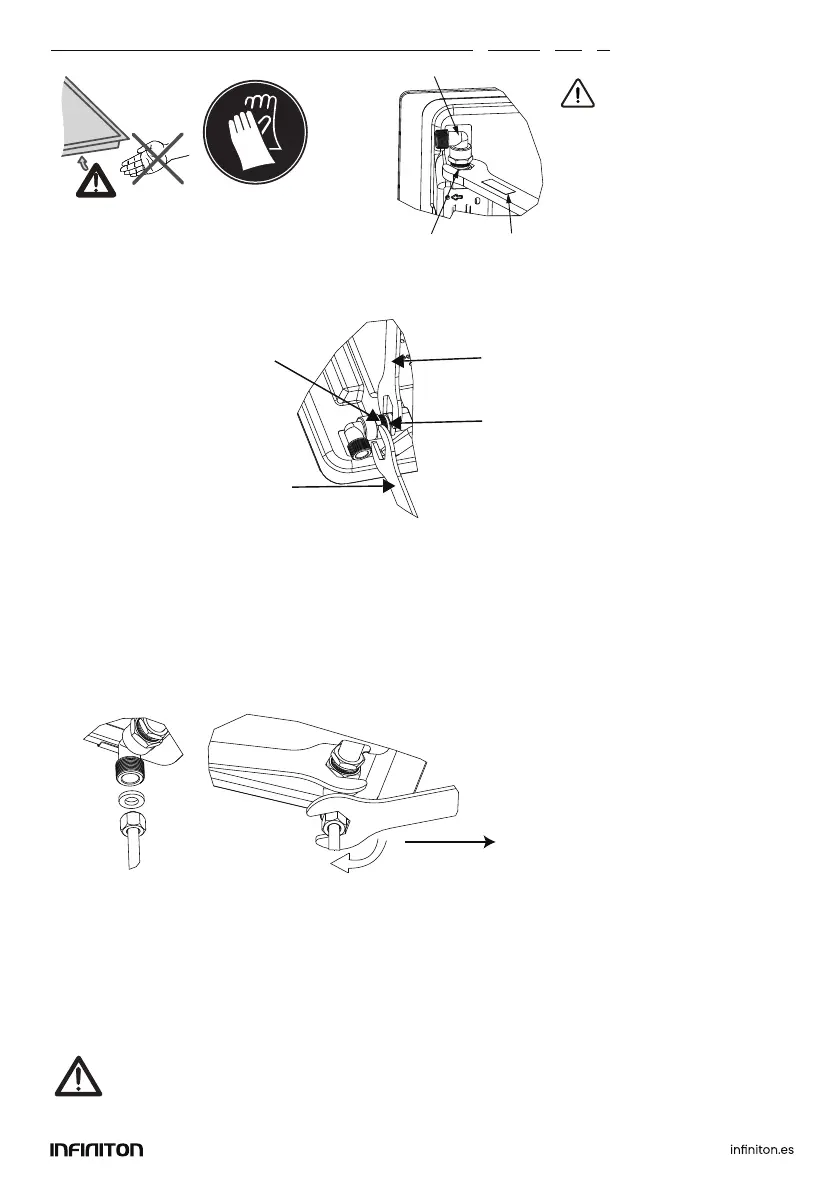

Installation of appliance
Note: Wear protective gloves
to fit the hob.
(1) Adjusting the direction of elbow
The black bolt of the
gas inlet pipe assembly
Tighten with a
torque wrench of
9±1N.m
Hold still
The hexagonal
head of the elbow
After loosening the elbow, adjust the elbow interface to the required direction as required, and keep
the hexagonal head of the elbow motionless with a wrench. Use a 9±1N.m torque wrench to tighten
the black bolt of the gas inlet pipe assembly. Ensure that the torque of the wrench is within the
required range to prevent elbow breakage or damage caused by excessive force.
After the installation is tightened, check whether the parts are in good condition and test the air
tightness to ensure the tightness of the installation. The installer is responsible for the results of the
process.
Caution!
Black nut of
manifold
Elbow
Torque:
9±1N.m
lf necessary to adjust or
install the elbow, it is allowed
only torque wrench with
9±1N.m, and work on the
Black nut of manifold instead
of on the elbow.
9.0N.m
(2) Installing the gas hob
This appliance should be installed by a registered Gas Safe Engineer!
Gas connection
The gas connection must be located in position where the stop tap is accessible.
Do not use too much force when
tightening; Otherwise, it will cause
elbow fracture or rubber ring
deformation and leakage.
Note that the torque wrench must
be used to tighten with a torque of
10N.m. The maximum torque cannot
exceed 20N.m.
The end of the inlet connection point of the gas hob has a 1/2" thread that allows for:
■
A fixed connection
■
Connection using a flexible pipe
The watertight seal supplied must be inserted between the manifold outlet and the gas supply.
You must prevent the pipe from coming into contact with moving parts of the kitchen unit (for
example, a drawer) and prevent access to any spaces which might become obstructed.
Danger of leaks!
If any connection is handled, check the seal.
The manufacturer is not liable for any connection leaking, after being handled.
34
