inniton.es94
English
Installation

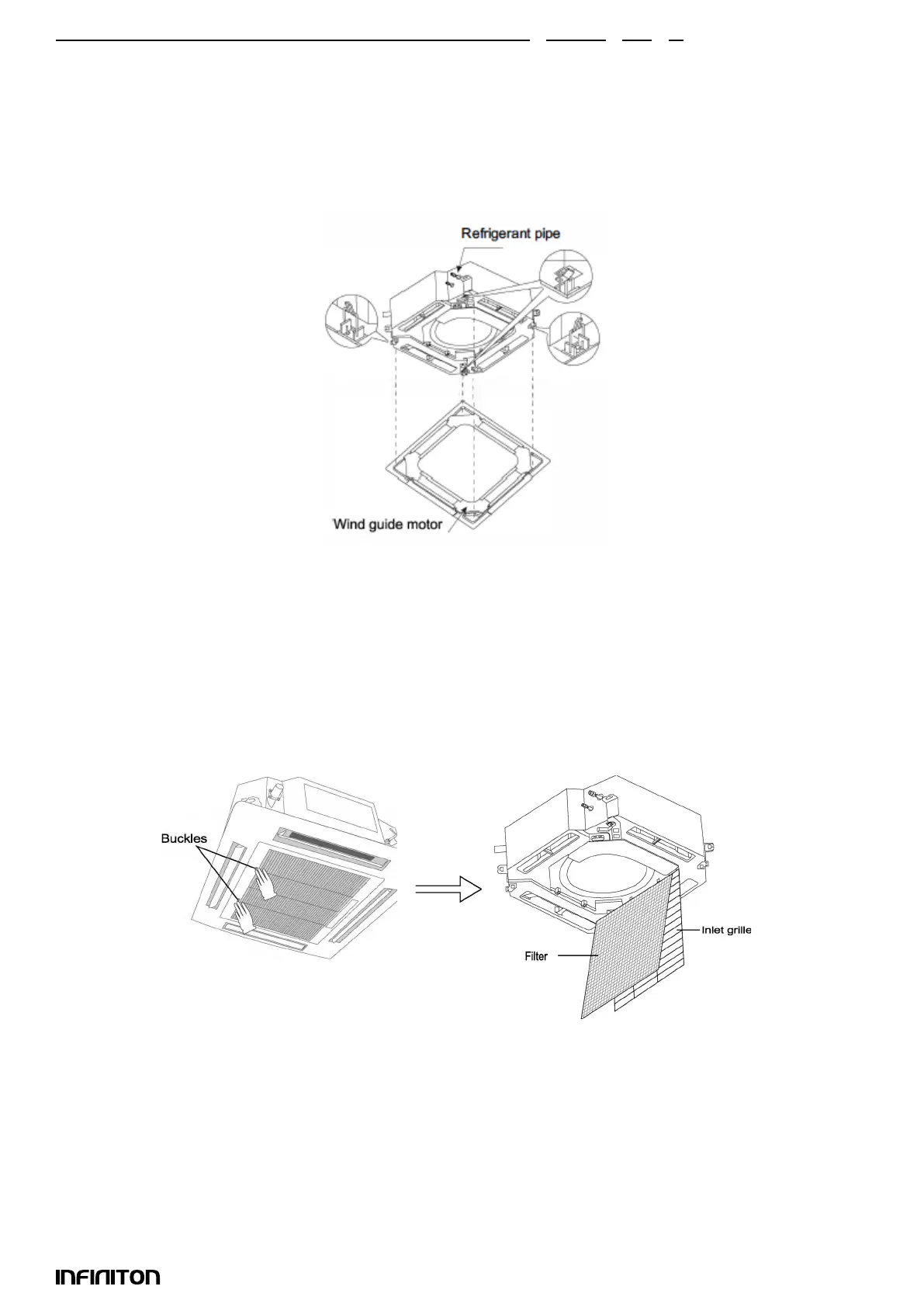

Installation of the grille
The grille has four clips that attach to the corresponding hooks on the unit. The grille is then secured
in position by four screws which are accessed through the four grille side panels. The four connecting
screws are located on the inside of the grille inlet panel.
Note: During installation, make sure that the air ap motor of the grille corresponds to the position of the
refrigerant pipe inlet on the indoor unit.
Installation of the grille
The grille has four clips that attach to the corresponding hooks on the unit. The grille is then xed into po-
sition by four screws which are accessed through the four grille side panels. The four connecting screws
are located on the inside of the grille inlet panel.
Note: During installation, make sure that the air ap motor of the grille corresponds to the position of the
refrigerant pipe inlet on the indoor unit.
