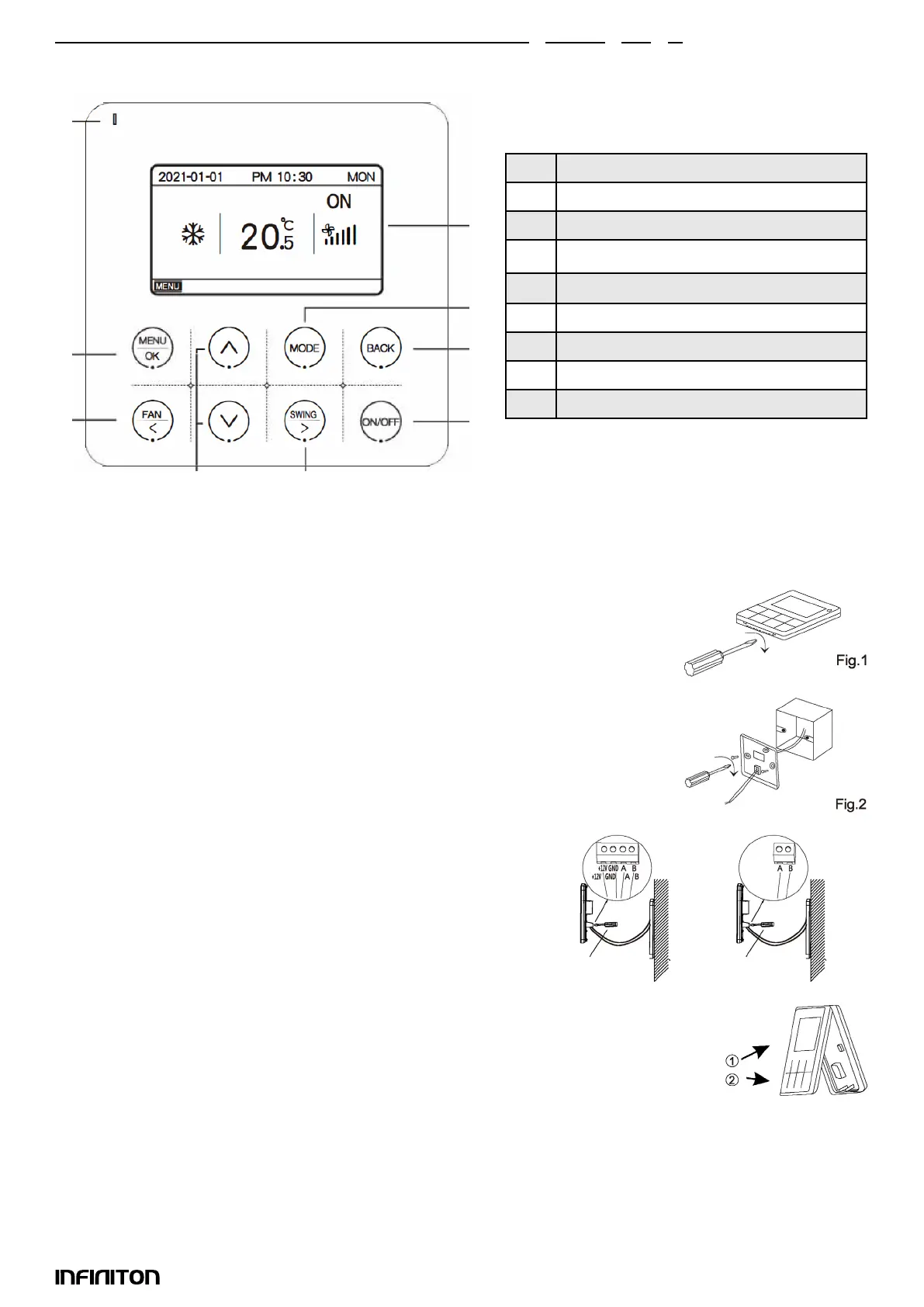

How to use
Wall-mounted remote control
1
2
3
4 5
6
7
8
9
1 Indicator light
2 Button to select MENU and OK
3 Fan / Left
4 UP / DOWN buttons
5 Swing / Right
6 LCD display
7 Button to select MODE
8 Back button
9 On / Off
Note: This manual presents the functions of all remote controls. If you press a but-
ton without any reaction, the air conditioner you have purchased may not have this
function.
Note: The product has touch buttons. To ensure the validity of the operation, touch the centre of each
button.
Installation
1. Turn off the power supply to the indoor unit.
2. As shown in Fig.1, use a athead screwdriver to pry the bot-
tom slot of the thermostat slightly (too much force will dama-
ge the circuit board), pry it rotationally to open the back cover.
3. As shown in Fig.2, x the 4 * 20mm screws supplied toge-
ther with the back cover on the case, then pass the lead wires
through the back cover.
4. Connect the power supply wiring from the box inside the wall
to the connection terminal (check for short circuits).
5 .After connecting the connection cable to the main controller
as shown in Fig. 4, install the main part of the controller accor-
ding to the following steps:
1) Push the upper part of the main body into the clip.
2) Use the force of the inclined upper part to install the lower
part of the main body (horizontal installation is prohibited, as it
is very likely to damage the slot of the structure).
LCAC VRF
Fig.3
Fig.4
