For safety reason, please use only the same size of xing or mounting screws
which are recommended in this instruction manual.
Failure to install the screws or xing device in accordance with these
instructions may result in electrical hazards.
Español
Instalación
WARNING!

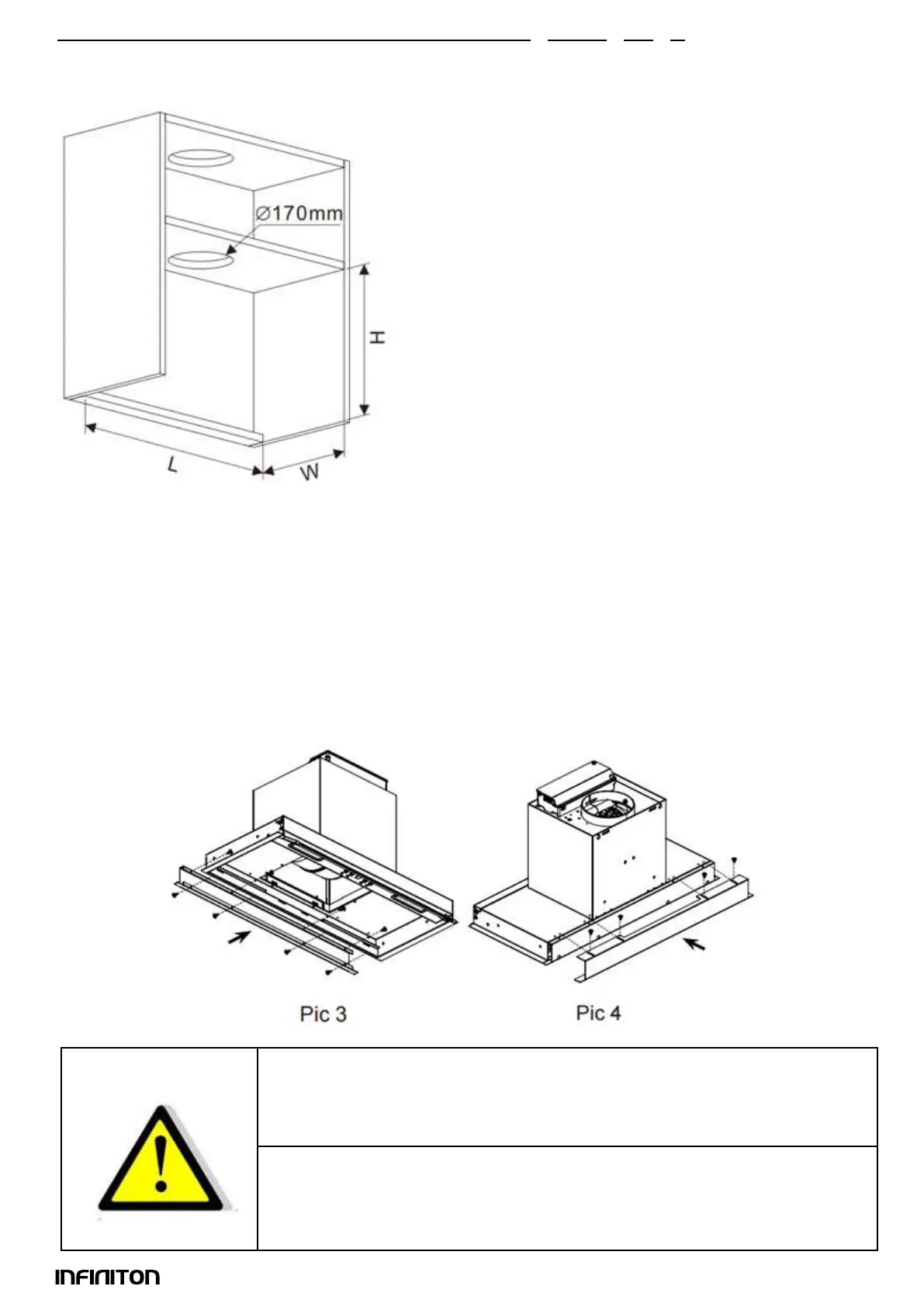

Drill a hole in the cabinet, as shown in picture 2, and reserve space for the socket.
4. Lift the decorative glass and remove the lter.
5. Fix the extractor hood bracket at the back with 8 screws ST4*8mm, see picture 3 (suitable for situa-
tions where the opening depth W is 315mm).
6. Attach the width adjustment bracket to the back of the cooker hood with 4 ST4*8mm screws, and
make sure to adjust to the desired width. See picture 4 (suitable for situations where the opening depth
W is between 315mm and 335mm).
L: 662mm±1 (For the 60cm wide model)
762mm±1 (For 70cm wide model)
962mm±1 (For 90cm wide model)
W: 300mm (without adjustment plate)
315-335mm (without adjustment plate)
H: ≥370mm (without chimney)
≥410mm (without chimney)
Bekijk gratis de handleiding van Infiniton CMPG-A9035, stel vragen en lees de antwoorden op veelvoorkomende problemen, of gebruik onze assistent om sneller informatie in de handleiding te vinden of uitleg te krijgen over specifieke functies.
