EN / 21
• Power cable plug must be within easy
reach after installation (do not route it
above the hob). Do not use extension or
multi sockets in power connection.
• and must use the appropriate socket out-
let/line and plug for oven. In case of the
product's power limits are out of current
carrying capability of plug and socket
outlet/line, the product must be connec-
ted through fixed electrical installation
directly without using plug and socket
outlet/line.
• If the product will be connected directly
to the supply power: If it is not possible
to disconnect all poles in the supply
power, a disconnection unit with at least
3 mm contact clearance (fuses, line
safety switches, contactors) must be
connected and all the poles of this dis-
connection unit must be adjacent to (not
above) the product in accordance with
IEE directives. Failure to obey this in-
struction may cause operational prob-
lems and invalidate the product warranty.
• Additional protection by a residual cur-
rent circuit breaker is recommended.
If the product is produced without cable:
• A power cable that it is defined in the
technical table home must be connected
to product by following the instructions.
Power cable must not be longer than 2 m
because of safety reasons.
• Open the terminal block cover with a
screwdriver.
• Insert the power cable through the cable
clamp below the terminal and secure it to
the main body with the integrated screw
on cable clamping component.

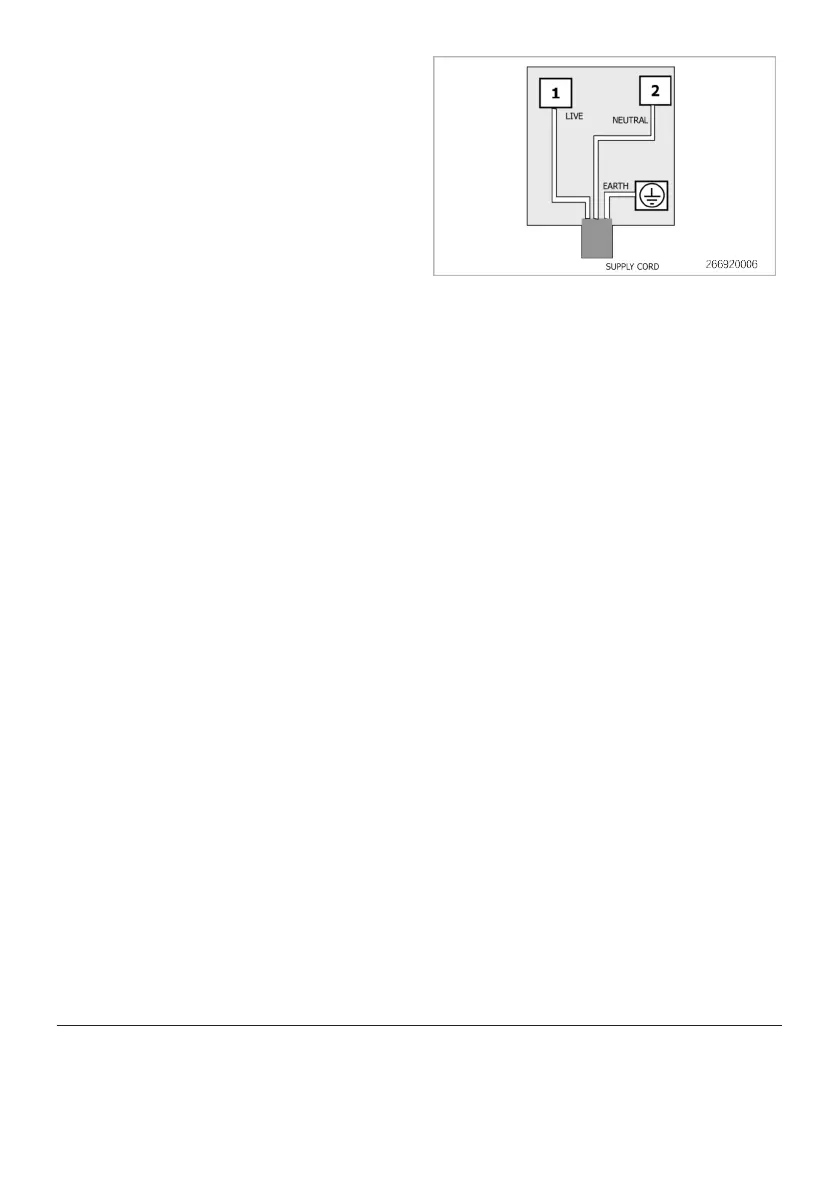

• Connect the cables according to the sup-
plied diagram.
If your supply cord type is 3-conductor type,
for 1-phase connection:
- Brown/black = L (Phase)
- Blue = N (Neutral)
- Green/yellow wire = (E) (Earthing)
• After completing the wire connections,
close the terminal block cover.
• Connect the power cable to supply power
by routing it so that it will not contact the
product and get squeezed between the
product and the wall.
4.3 Placing the product
1. Push the product towards the kitchen
wall.
2. Secure the safety chain you have con-
nected to the product to the wall.
3. Adjust the feet of oven
Adjusting the feet of oven
Vibrations during use may cause cooking
vessels to move. This dangerous situation
can be avoided if the product is level and
balanced.
For your own safety please ensure the
product is level by adjusting the four feet at
the bottom by turning left or right and align
level with the work top.
Final check
1. Reconnect the product to the mains.
2. Check electrical functions.
5 First Use
Before you start using your product, it is re-
commended to do the following stated in
the following sections respectively.
5.1 Initial Cleaning
1. Remove all packaging materials.
