K SMART - K ECOSMART
28
KSMART-KECOSMART_(220V)_IM_20240318
INSTALLATION
To install the Minibar properly, you must ensure the air supply to the refrigerating unit making openings
for air inlet and outlet as shown on the following gure.
VENTILATION
The compressor cooling system lets out heat and needs good ventilation. Therefore places with bad venti-
lation are not very suitable. The Minibar must be installed in a place with an opening which guarantees the
necessary exchange of air, and it is of the utmost importance not to cover up or obstruct the grids which
provide the device with proper ventilation. One must also avoid positioning it in a place which is directly
exposed to sunlight or to other heat sources.

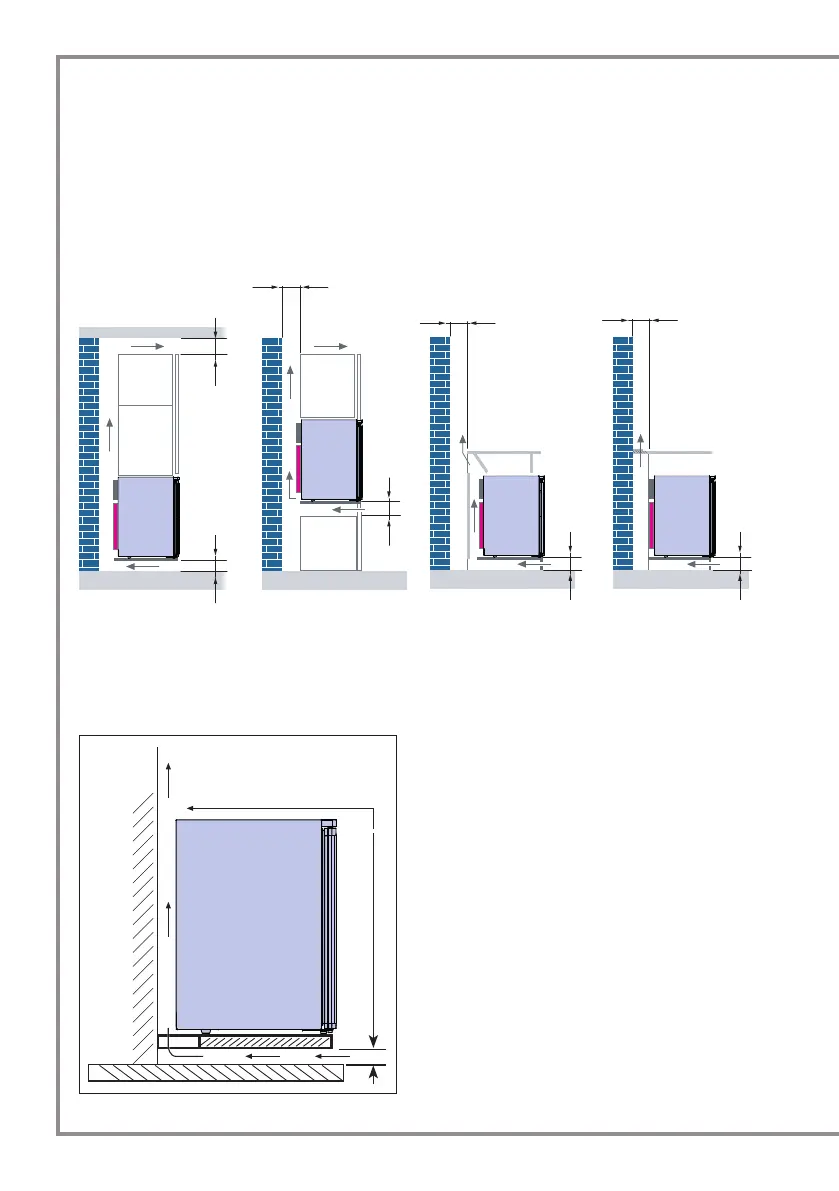

For built-in models, you must t the Minibar into the
cabinet, guaranteeing a cross section at the air inlet and
outlet of at least 200 cm
2
/31 inch
2
, corresponding to a
height of 48 mm/1,89 inch along the entire width of the
refrigerator. Leave a space of 60 mm/2,36 inch betwe-
en the top and sides of the Minibar and the cabinet.
The gap between the top of the fridge and the wall
should b e 21 mm~30 mm/0,82~1,18 inch. If the gap
exceeds 30 mm/1,18 inch, the i nstallation of a bracket
between the top of the fridge and the wall is necessa-
ry to ensure that the maximum hight of the gap is 30
mm/1,18 inch.
You must t the Minibar into the cabinet, guaranteeing
a cross section at the air inlet and outlet of at least 200
cm
2
/31 inch
2
.
max. 40 mm
min. 30 mm
max. 30 mm
min. 21 mm
max. 45 mm
min. 35 mm
max. 40 mm
min. 30 mm
max. 45 mm
min. 35 mm
max. 45 mm
min. 35 mm
max. 45 mm
min. 35 mm
max. 40 mm
min. 30 mm
Free cross section 200 cm
2
/31 inch
2
