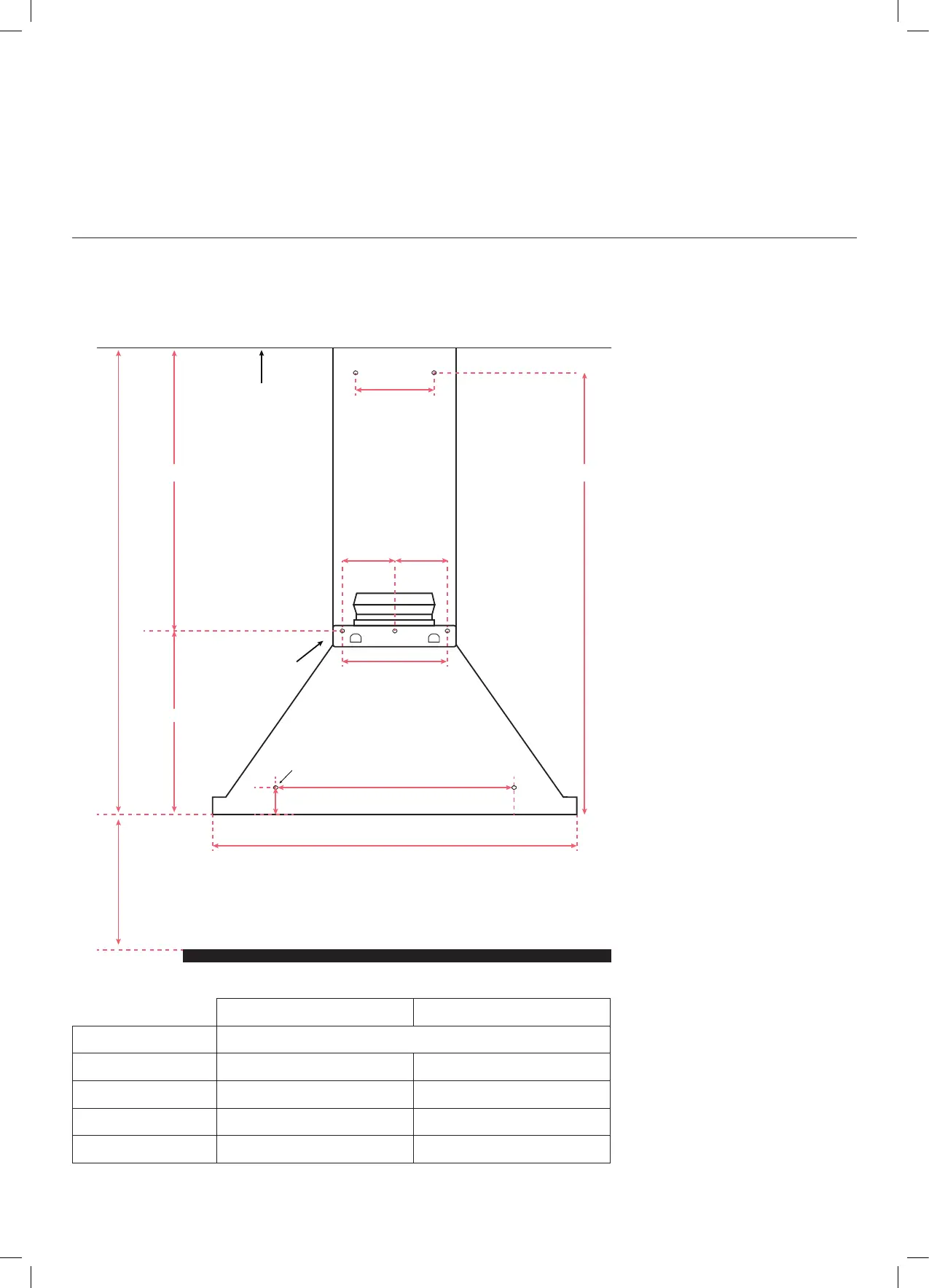

2. Mark the location for the ue cover wall mounting brackets and cooker hood mounting points
above the rangehood base, using the rangehood base as the reference point.
IRC60S IRC90S
DIMENSION A
Refer to table on Page 10.
DIMENSION B
600mm 900mm
DIMENSION C
350mm 500mm
DIMENSION D
50mm 50.6mm
DIMENSION E
269mm 268.5mm
Figure 3
DIMENSION A Max. 1018mm
DIMENSION B
195mm
97.5mm 97.5mm
Cooker hood
mounting points
Top of cooktop
Ceiling
124mm
DIMENSION C
Ø8mm
622.7mm393–773mm
DIMENSION D
DIMENSION E
