INSTALLATION INSTRUCTIONS (CONTINUED):

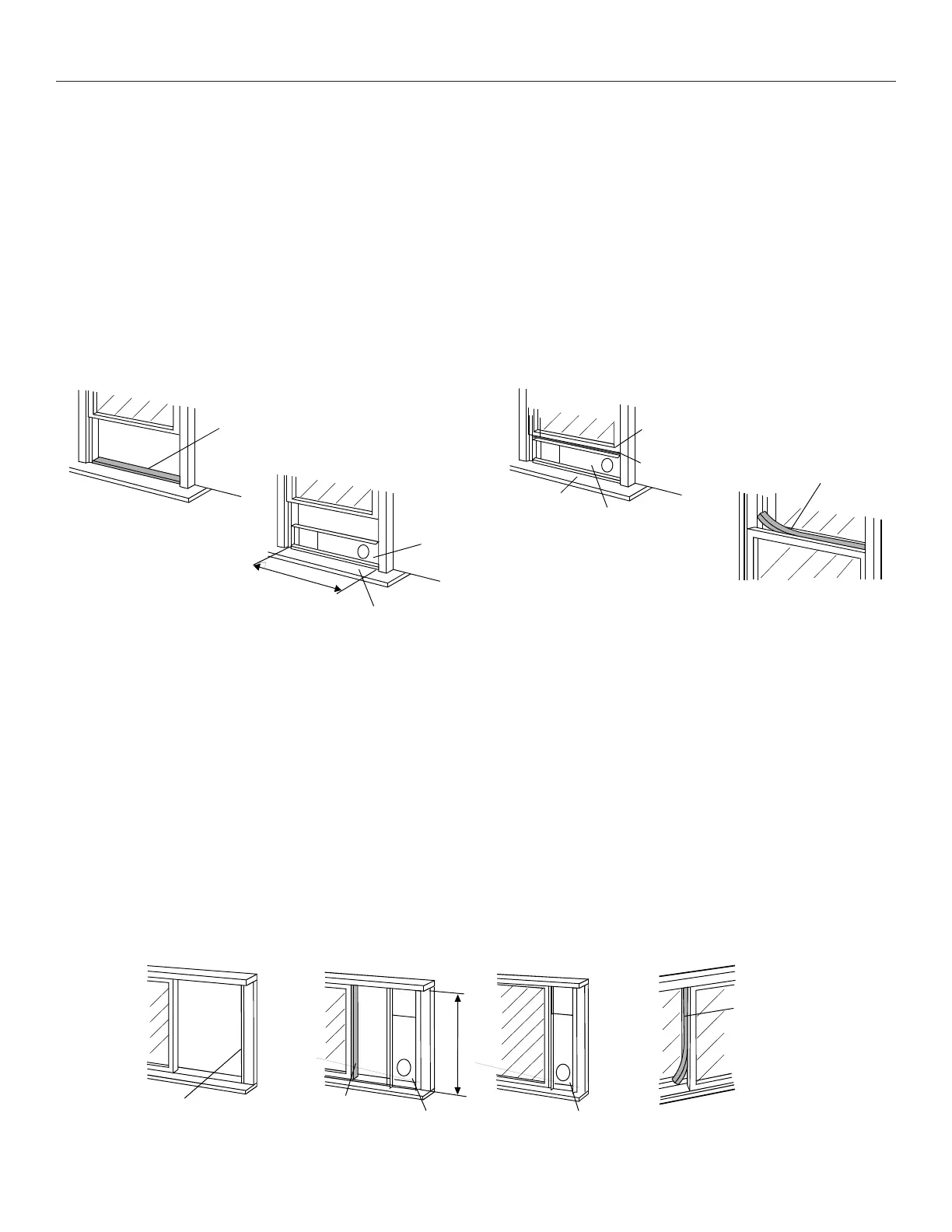

INSTALLATION IN A DOUBLE-HUNG SASH WINDOW:
1. Cut one adhesive foam seal to the proper length and attach it to the window stool. (Figure J)
2. Attach the window ller panel kit to the window stool. Adjust the length of the window slider kit according
to the width of window, shorten the adjustable window kit if the width of window is less than 26 ½ inches.
Open the window sash and place the window slider kit on the window stool. (Figure K)
3. Cut the other adhesive foam seal to the proper length and attach it to the bottom of the lower rail of the
window.(Figure L)
4. Close the window sash securely against the window ller panel kit.
5. Cut the non-adhesive foam seal to an appropriate length and seal the open gap between the upper and
lower windows. (Figure M)
INSTALLATION IN A HORIZONTAL SLIDER WINDOW:
1. Cut one adhesive foam seal to the proper length and attach it to the window frame. (Figure N)
2. Attach the window ller panel kit to the window stool. Adjust the length of the window slider kit according
to the height of window opening, shorten the adjustable window kit if the height of window is less than 26 ½
inches. Open the window sash and place the window slider kit on the window stool. (Figure O)
3. Cut the other adhesive foam seal to the proper length and attach it on the part of the window sash that will
come into contact with the ller panel kit. (Figure O)
4. Close the sliding sash securely against the ller panel kit. (Figure P)
5. Cut the foam seal to an appropriate length and sea the open gap between the top window sash and outer
window sash. (Figure Q)
2
6
½
”
-
4
8
”
Fig. J
Fig. K
Fig. L
Fig. M
Adhesive Seal
Window stool
Window Filler
Panel Kit
Window Filler
Panel Kit
Window stool
Non-Adhesive Sash
Seal
Adhesive
Sash Seal
Lower rail
Fig. N
Fig. O Fig. P Fig. Q
Non-Adhesive Sash
Seal
Adhesive Seal
26 ½” - 48”
Window Kit
Adhesive
Sash Seal
Window Kit
