20
BURNERS OF THE TOP

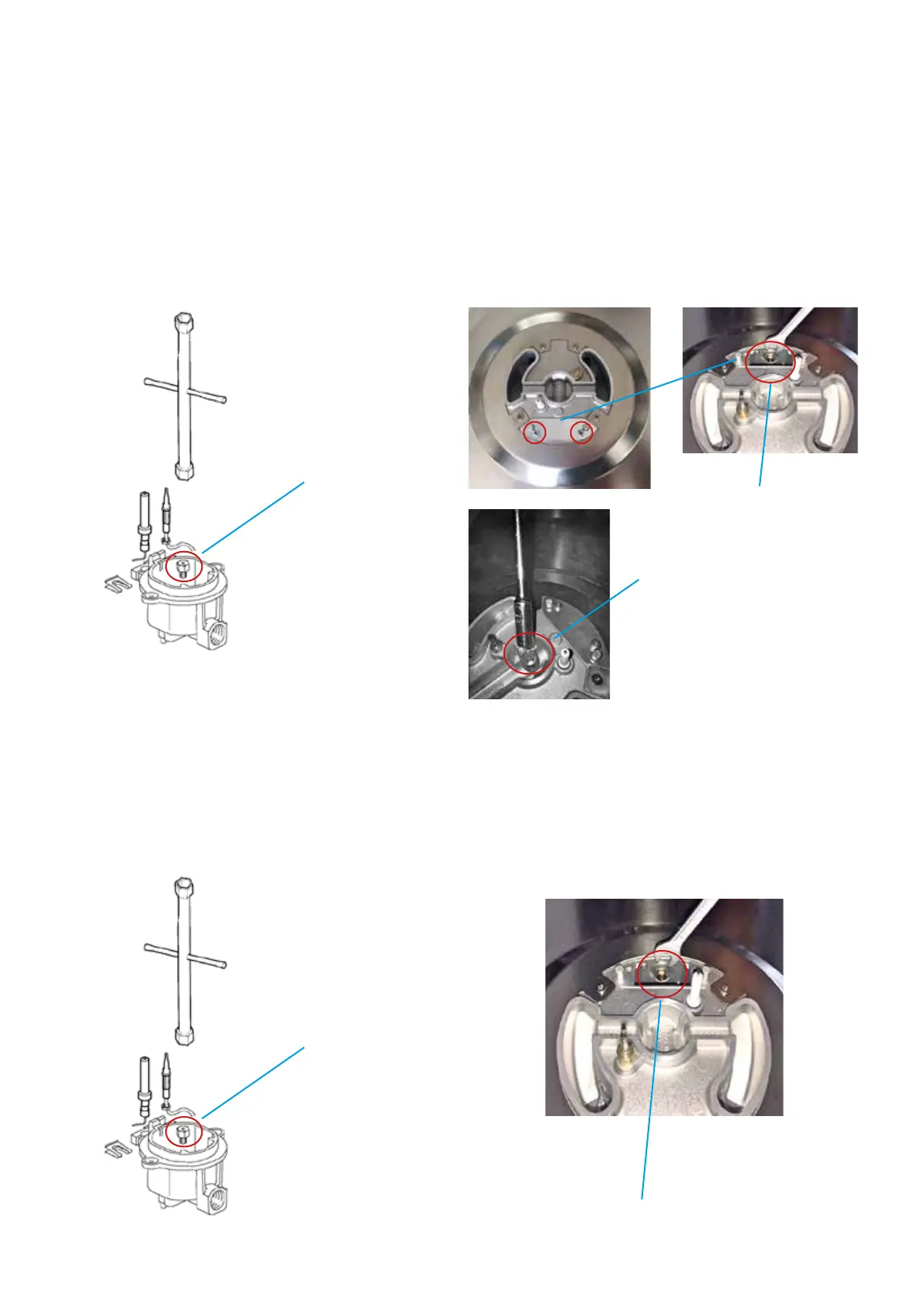

- Replacement of the injectors
Procedure: SR - R
• Remove the grill and the burners from the hob.
• Burners SR – R:
unscrew injectors “U” using a 7 mm spanner (g. 1) and
replace them with those for the new gas according to
table number 2 on page 18. Save the orices remo-
ved from the appliance for future use.
Procedure: DUAL
• Remove the grill and the burners from the hob.
• Unscrew injectors “U” using a 7-mm spanner (g. 8, g 10) and replace them with those for the new gasaccor-
ding to table number 2 on page 18. Save the orices removed from the appliance for future use.
Procedure: DCC
• DCC – Dual burners: unscrew the 2 screws “P” and
remove cover “C” g.2.
• unscrew injectors “U” using a 7 mmspanner (g.3,
g.4) and replace them with those for the new gas
according to table number 2 on page 18. Save the
orices removed from the appliance for future use.
2
4
U
U
1 2
U
U
1
U
3
PP
CC
PP
