INSTALLATION
Instructions of cabinet and refrigerator
1. Vertical adjustment of cabinet door: Rotate the refrigerator adjustment bolts clockwise/
anticlockwise with an Allen wrench, to move the cabinet door up or down.
2. Horizontal adjustment of cabinet odor: Rotate the lateral set screws of refrigerator door
clockwise/anticlockwise with an Allen wrench, to move the cabinet to the le or right.
3. Front/back adjustment of cabinet door:
1
Front/back adjustment at upper side of ca-
binet door: Move the upper side of cabinet door to have front/back adjustment based
on the front/back clearance between upper xing plate and refrigerator;
2
Front/back
adjustment at middle side of cabinet door: Move the cabinet door to the front/back until it
reaches a proper position, then fasten the hex socket set screw at lateral sides of refrige-
rator door;
3
Front/back adjustment at
4. lower side of cabinet door: Make adjustment based on the front/rear clearance between
the lower xing plate and screws on xing plate.
The adjustment above should be calibrated repeatedly to reach an acceptable status.

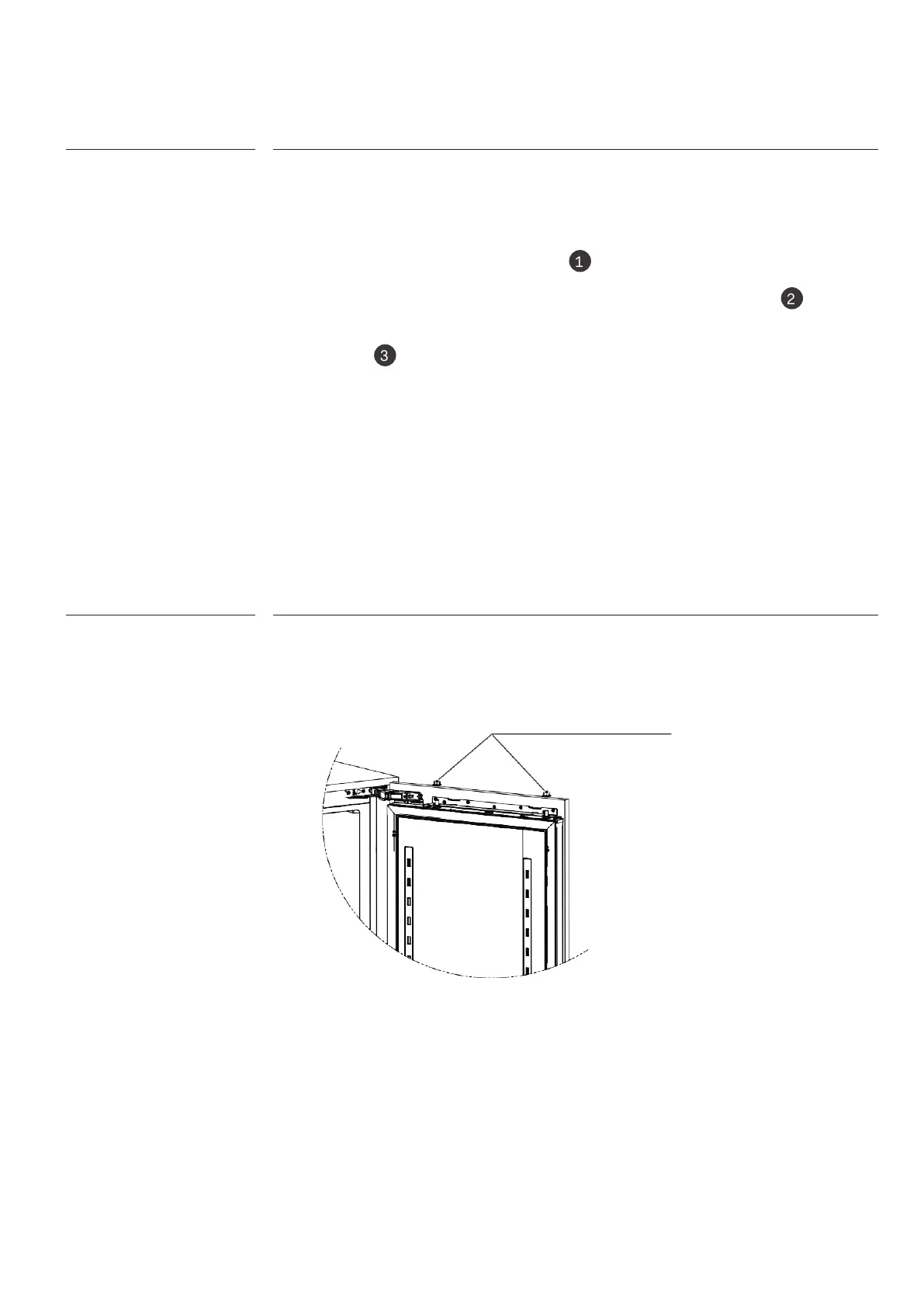

1. Fasten the hexagon ange nuts on the upper xing plate; (Refer to Fig. 9)
Adjustment of cabinet
door
Fixation of cabinet door
and refrigerator door
Hexagon ange nut
(Fig.9)
