INSTALLER
19
The fastening kit (screws and plugs) supplied with
the hood can only be used on masonry wall. For
installation on other types of walls consider alter-
native fastening systems, taking into a count the
strength of the wall itself and the weight of the
hood.

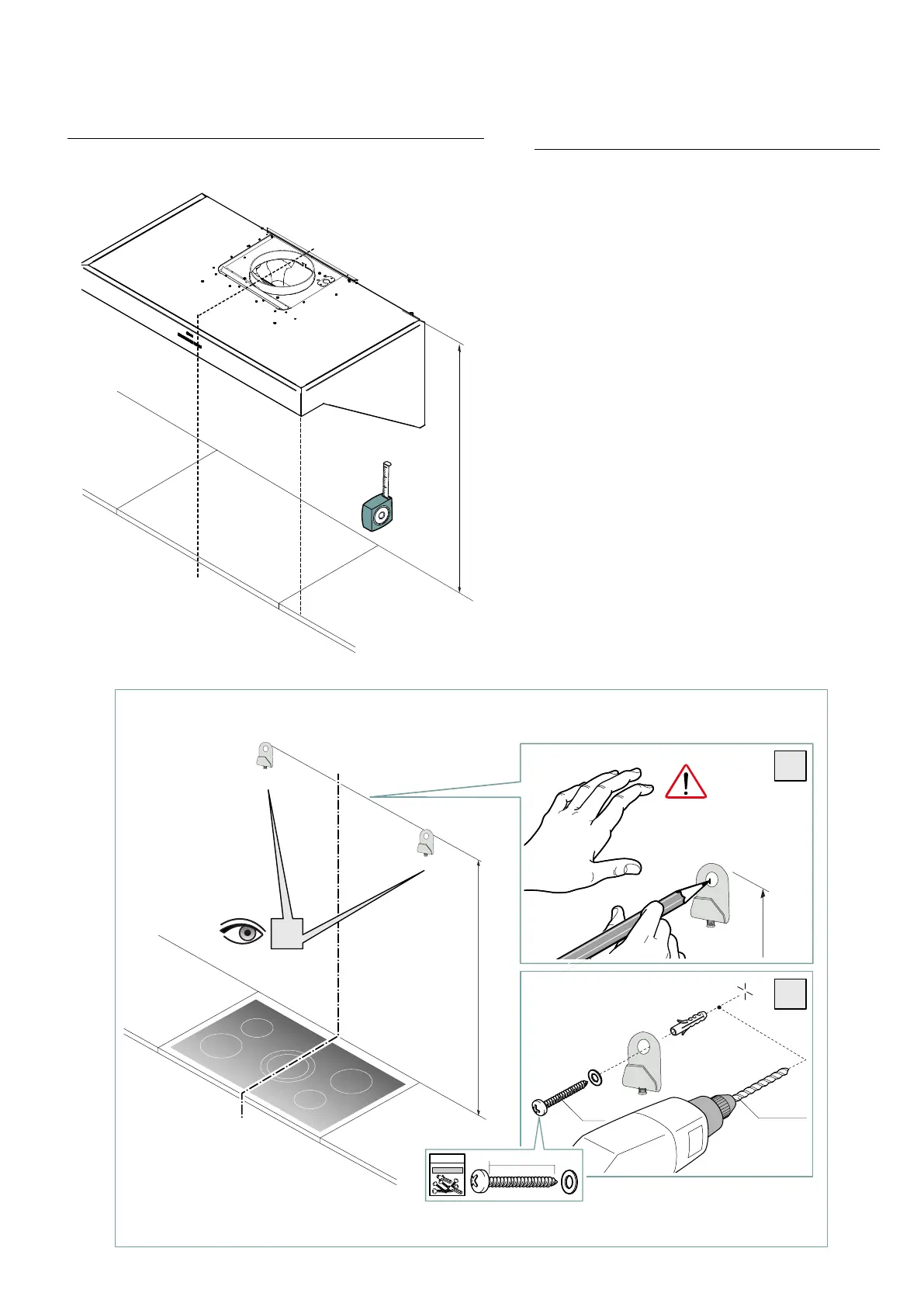

INSTALLATION
STEP 1
x2
2
3
=
=
1
1000 mm
45 mm | 1
49/64”
ø8 mm
ø 0
5/16”
1000 MM | 40
23/64”
(min)
1000 MM | 40
23/64”
(min)
1000 MM | 40
23/64”
(min)
1000 MM | 40
23/64”
(min)
1000 mm
1000 MM (min)
=
=
